As you know, our air compressor retrofit service allows us to buy used compressors, in case our customers prefer to buy new machinery.



What do we do with those compressed air compressors? Our experience in maintenance and repair of compressors both ABC brand and other brands, allows us to give them a new life: we check, repair and recondition these compressors and then put them on sale.



If you are interested in buying a reconditioned air compressor, check out this model.

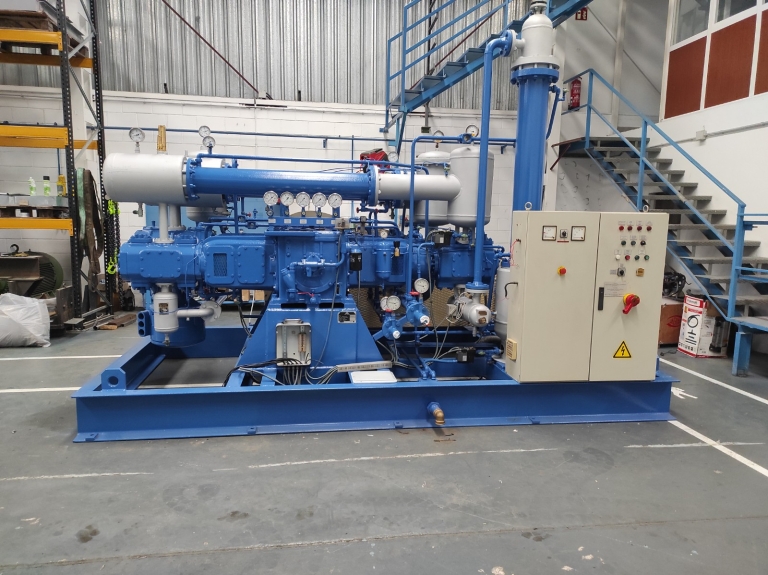

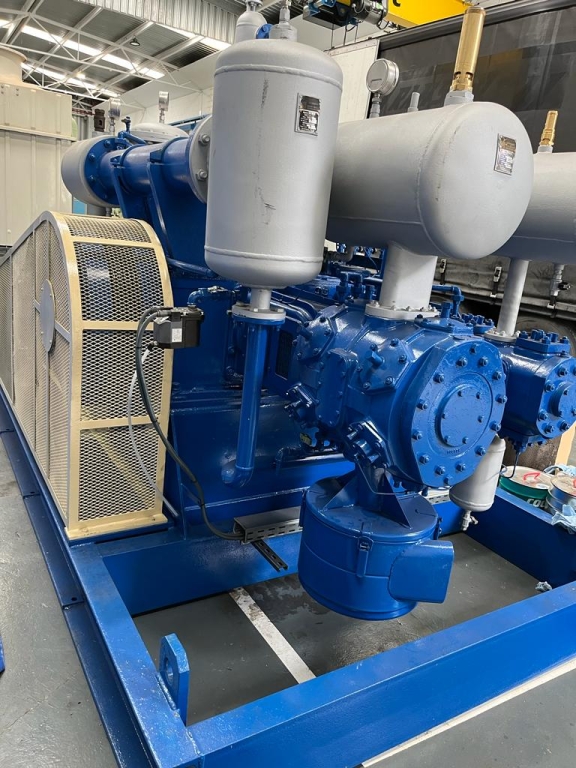

High pressure air compressor brand ABC 4HA-4-BIS-LT
- We sell stationary compressor of horizontal arrangement, opposed cylinders, reciprocating and balanced.

- The compressor has four compression stages with four cylinders (280, 160, 105 and 75 mm), double effect with crossheads. Cooled by water circulation and without greasing cylinders.

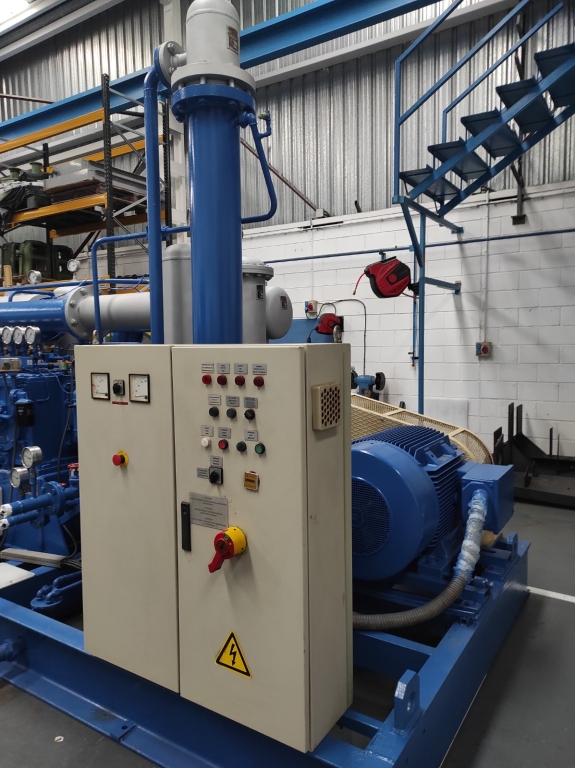

- Compressor in chassis with electrical cabinet, with dryer and tank outside chassis. (connections between cabinet and compressor not included)



Origin: Spain

Year of manufacture: 1995

Status: Reconditioned

Location: Itziar (Guipúzcoa)



Technical specifications:

· Flow rate produced under suction conditions, m³/h FAD: 720

· Suction pressure, kg/cm² (a): 1

· Exhaust pressure, bar (g): 40

· Type of transmission: Drive belts

· Protection: IP-54

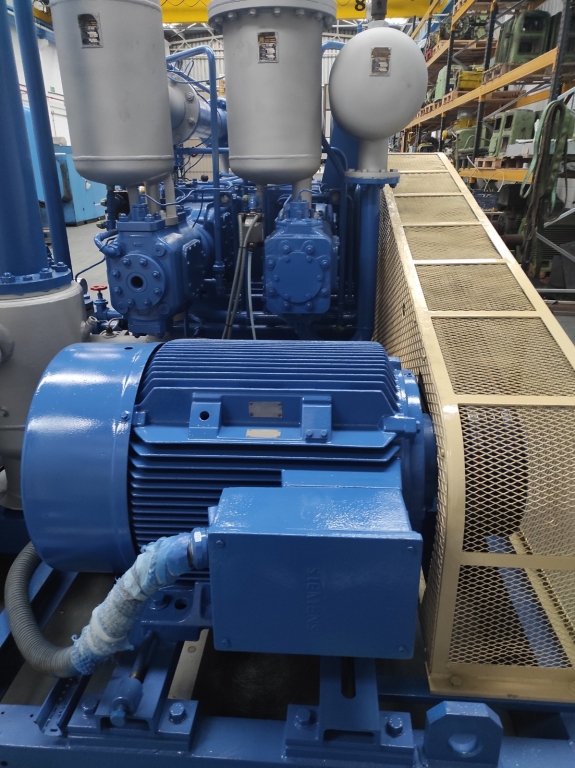

· Motor power (Kw): 90

· Voltage (V): 400

· Frequency (HZ): 50
· Electrical cabinet: Star-triangle and compressor control

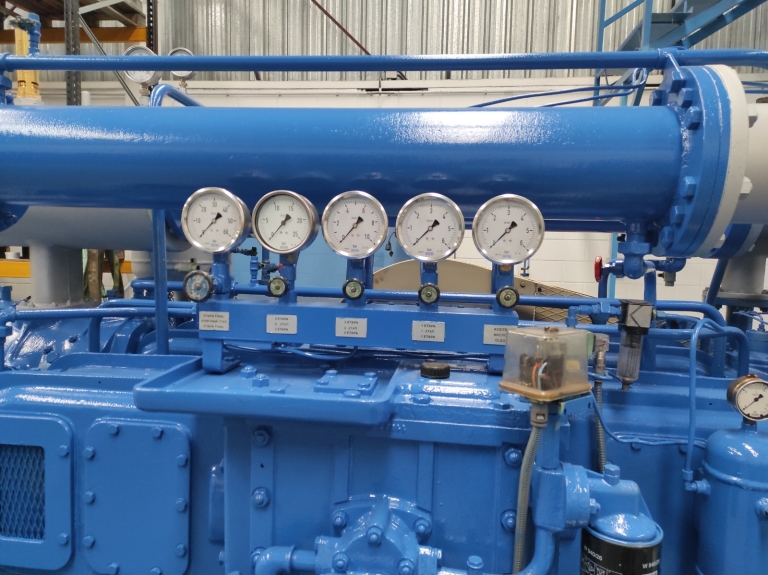

· Instrumentation: Pressure gauges and thermometers
· Drains: Set of automatic capacitive traps at condensate purge points: refrigerators and tank.

· Price on request (? / 943370159)
