8,000 Hour maintenance kit for ABC HORIZON 900 air piston compressor
List of parts:
| Amount | Code | Description |
|---|---|---|

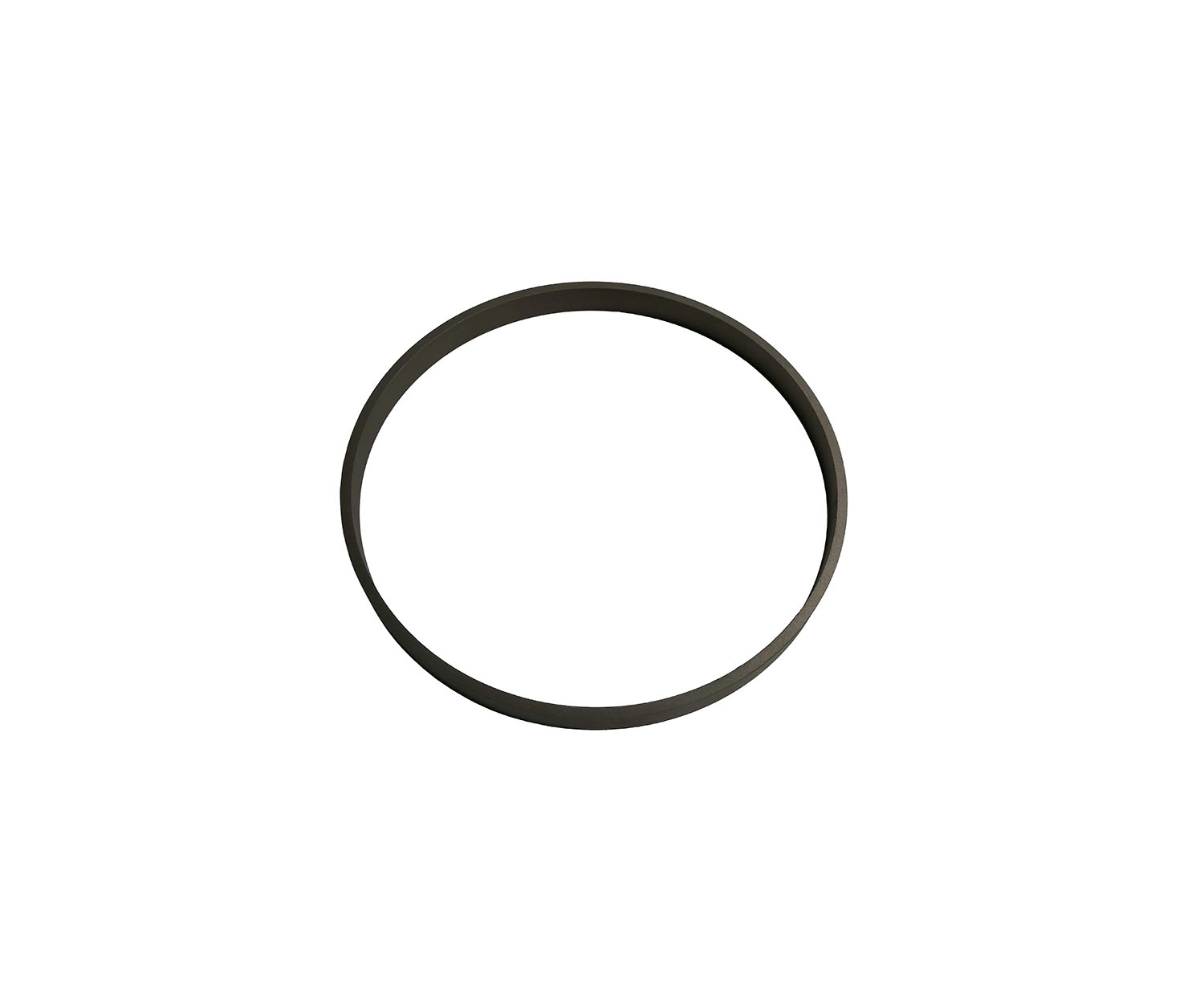

| 2 | 8756655 | RIDER RING DIAM. 320 MM |

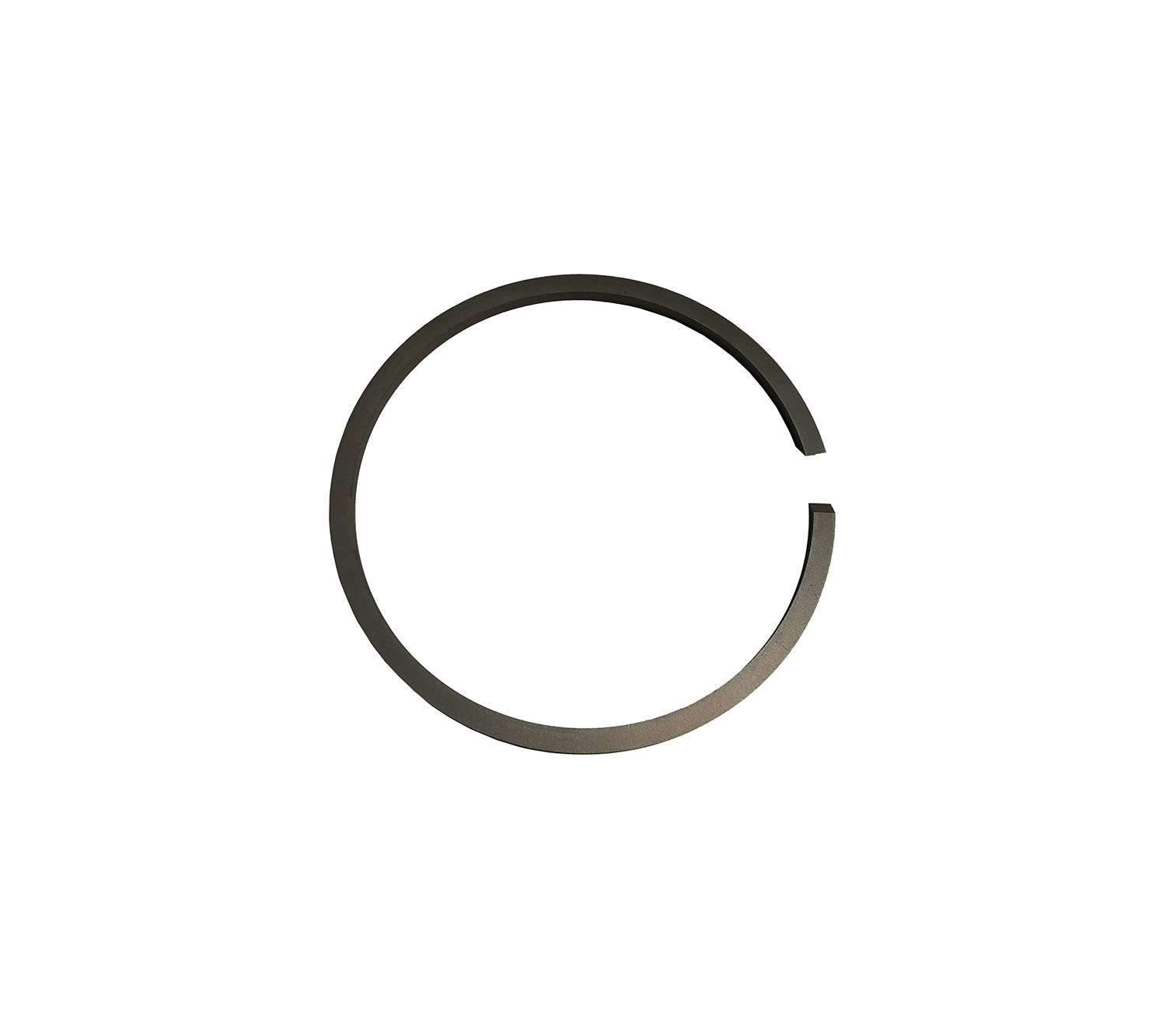

| 2 | 8591656 | PISTON RING DIAM. 320 MM. |

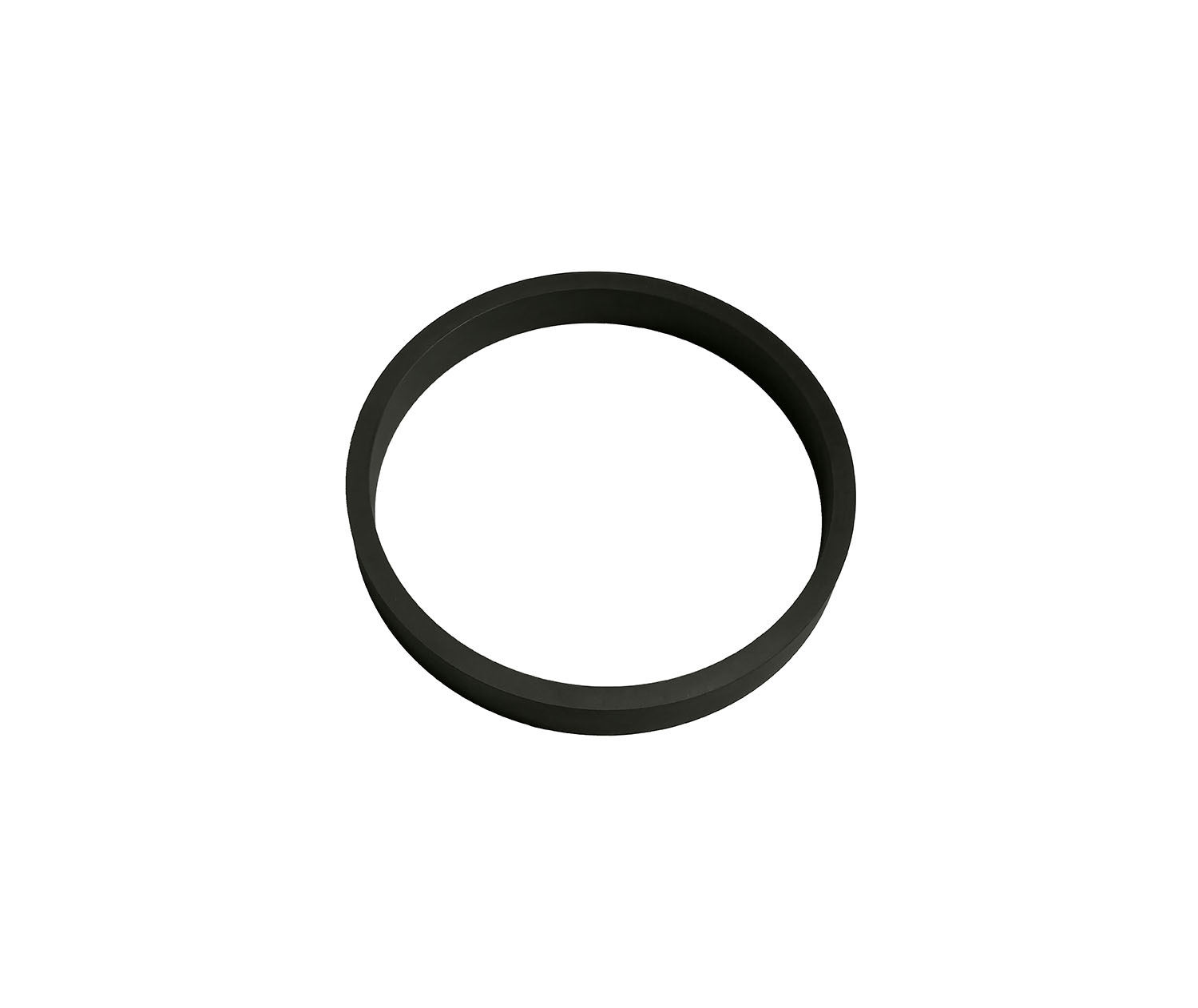

| 2 | 8384518 | RIDER RING DIAM. 210 MM |

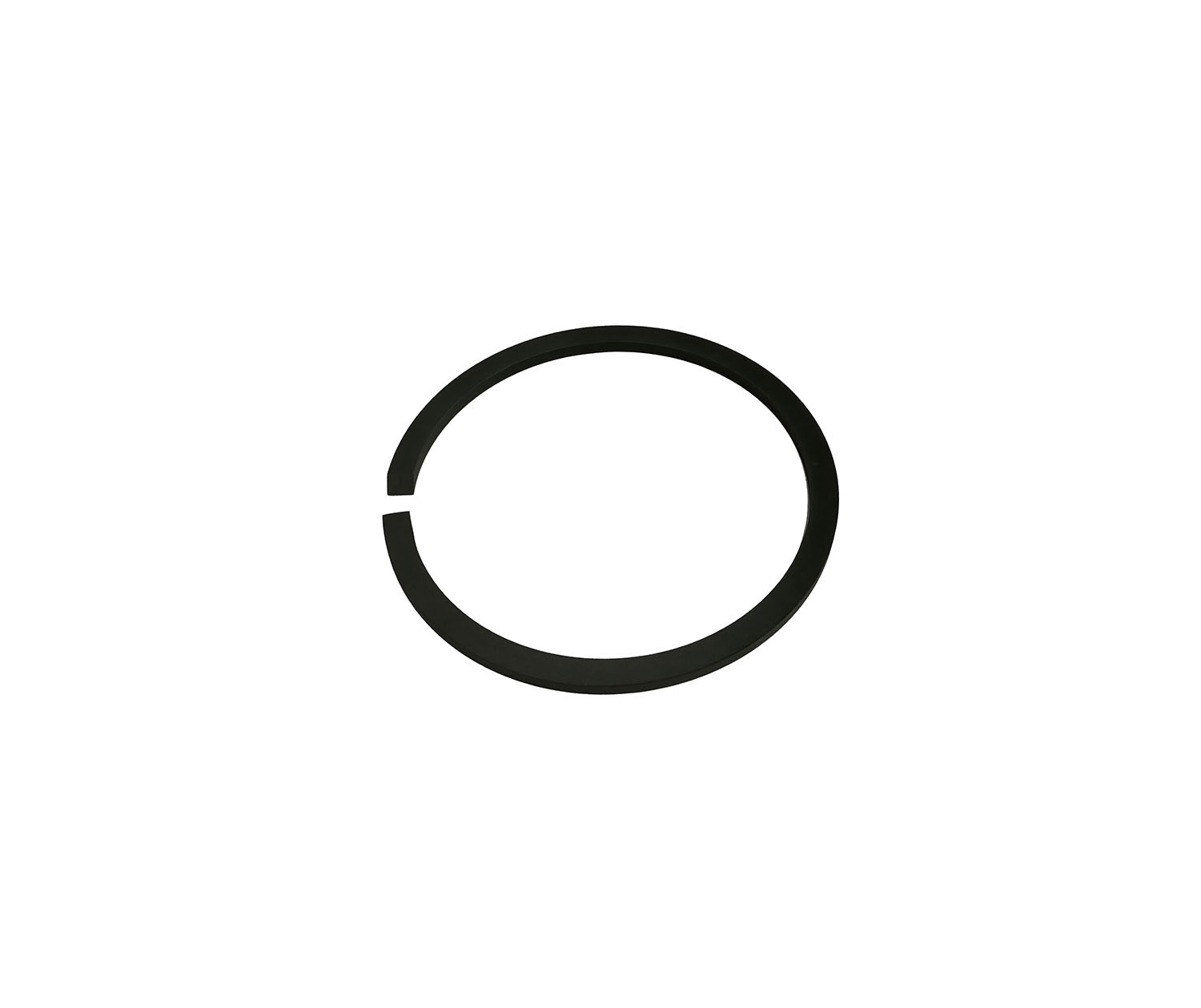

| 4 | 8781357 | PISTON RING DIAM. 210 MM. |

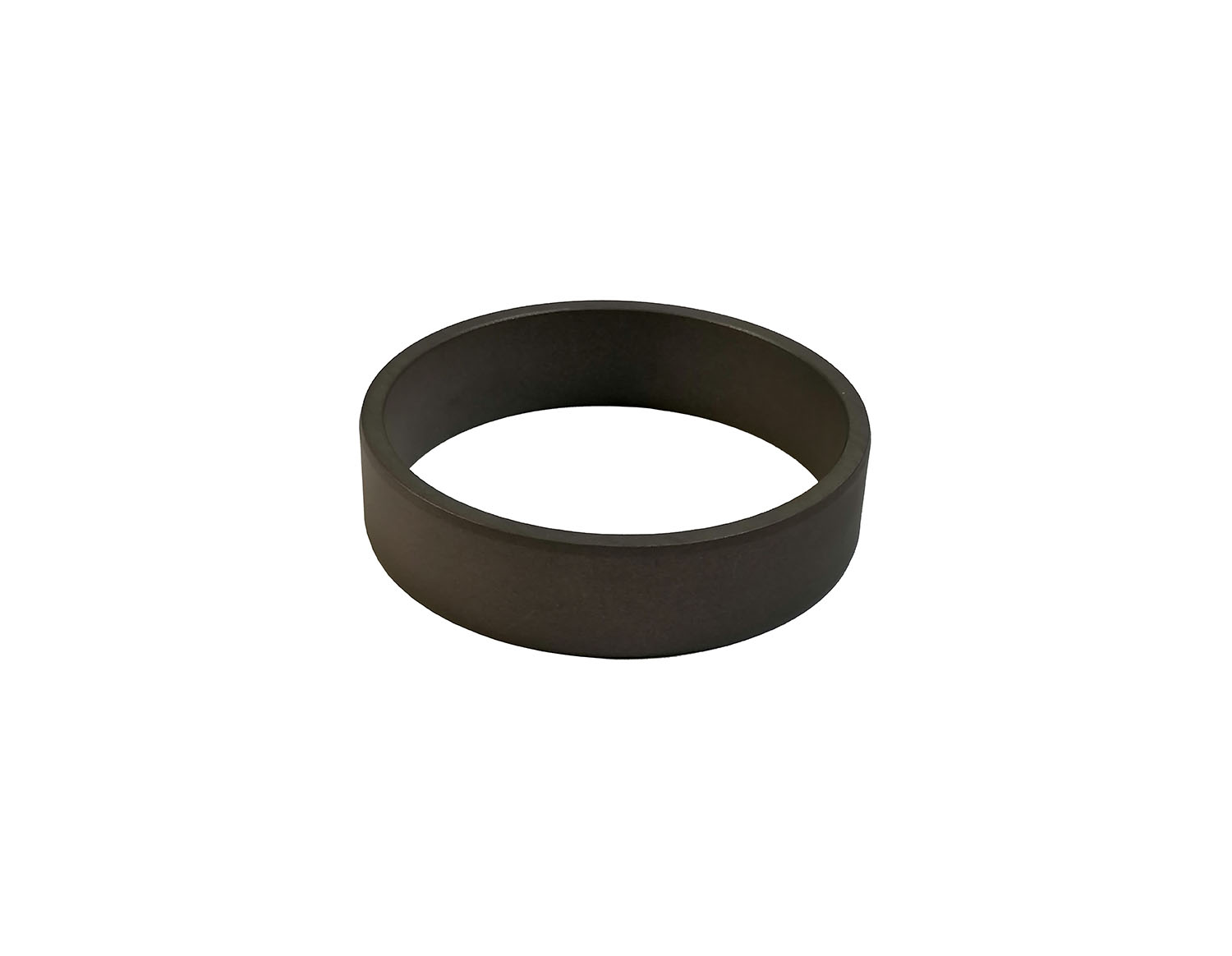

| 2 | 8814989 | RIDER RING DIAM. 100 MM |

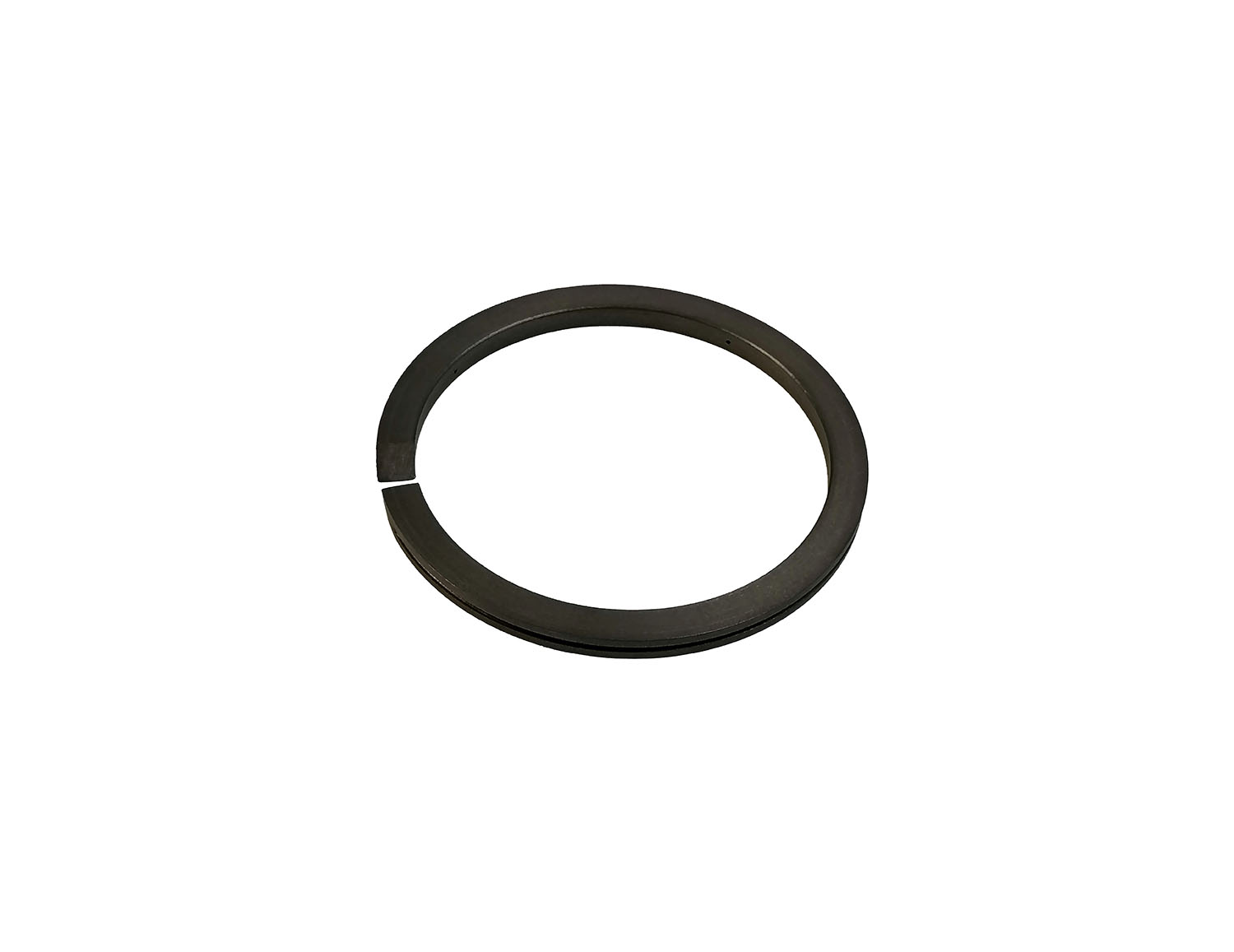

| 7 | 8982144 | PISTON RING DIAM. 100 MM. |

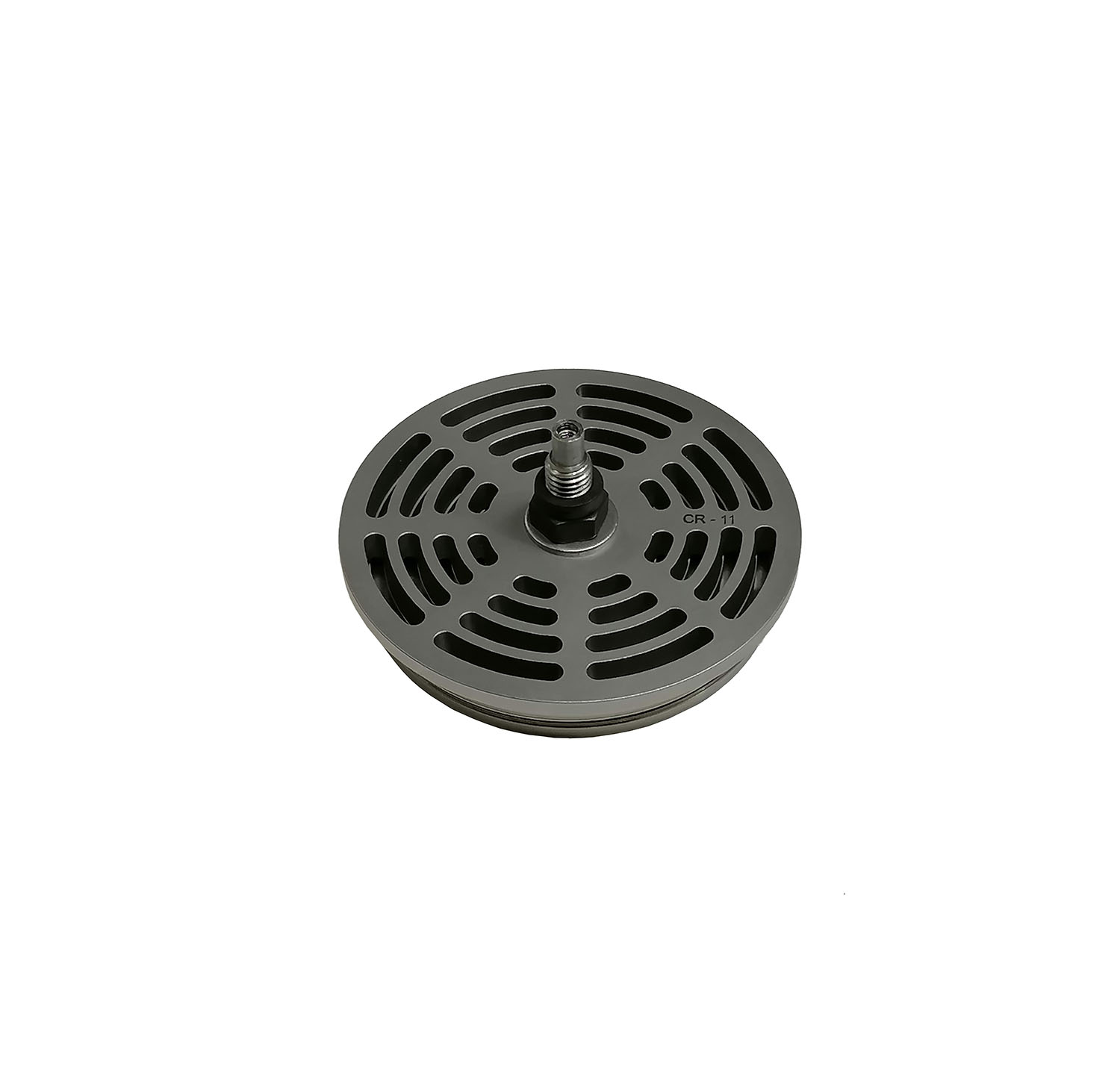

| 6 | 8057096 | VALVE 105CR-11 ADM. |
| 6 | 8287310 | VALVE 105CR-12 IMP. |

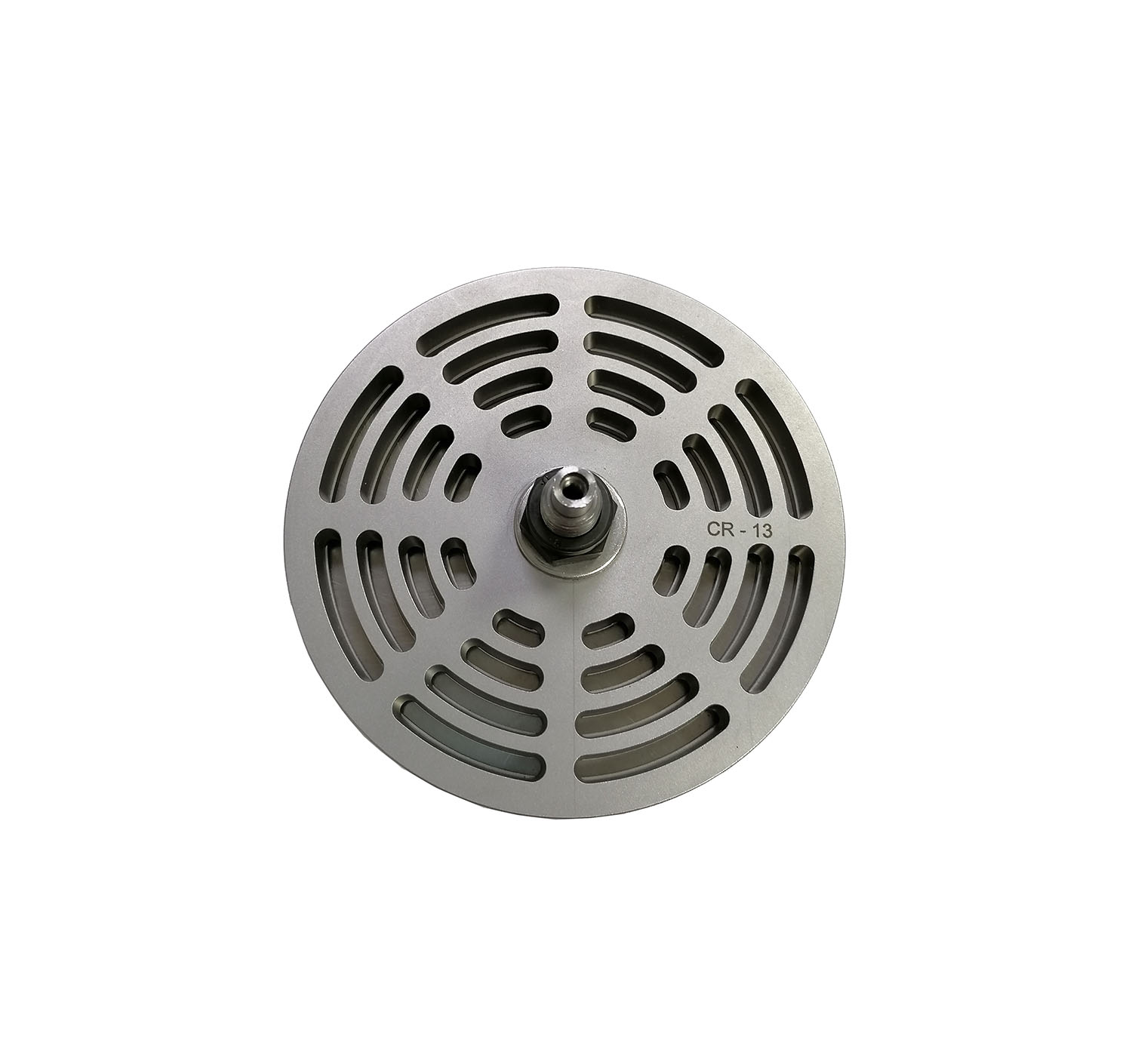

| 2 | 8057096 | VALVE 105CR-13 ADM. |

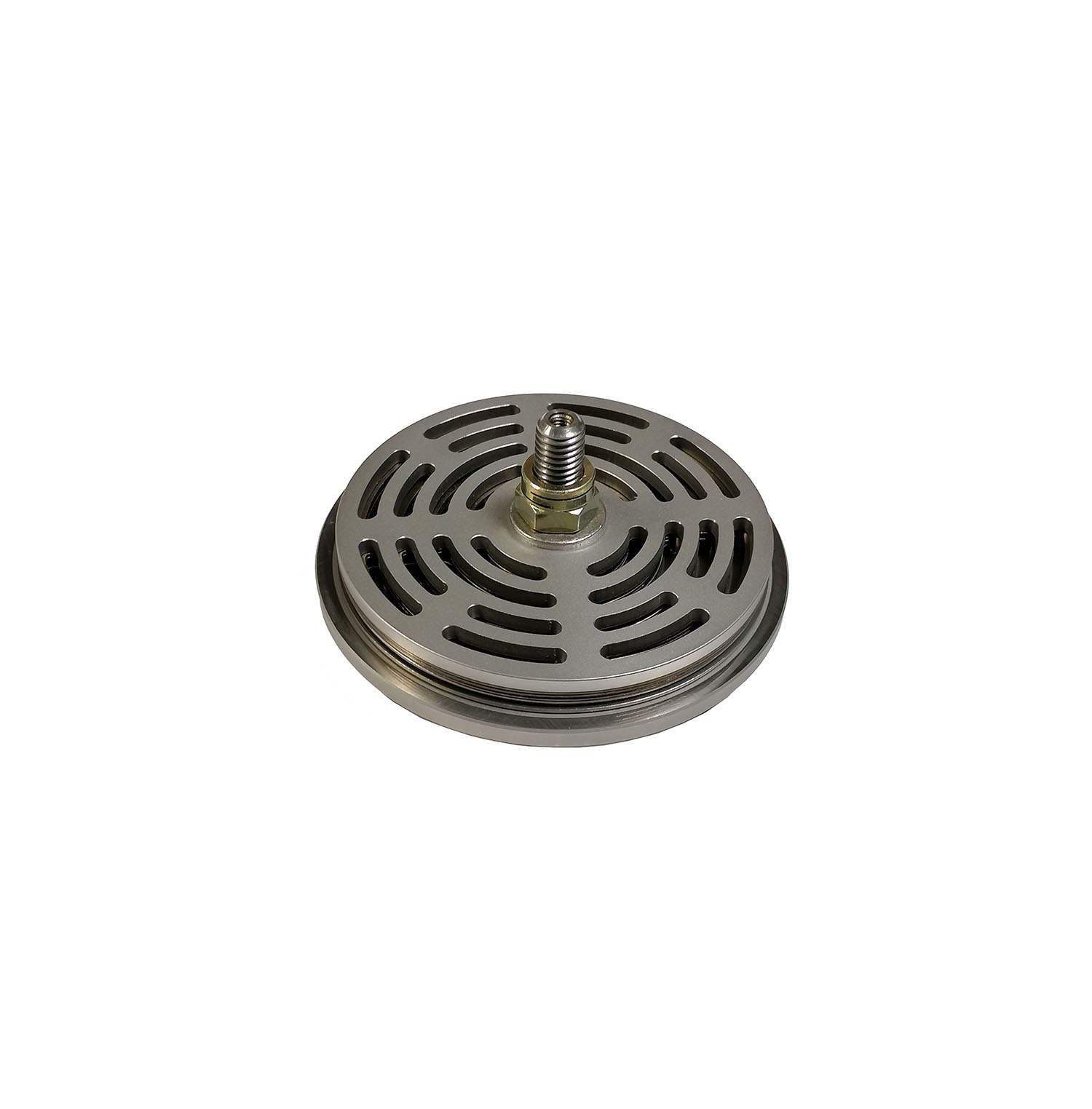

| 1 | 8943690 | VALVE 105CR-14 IMP. |

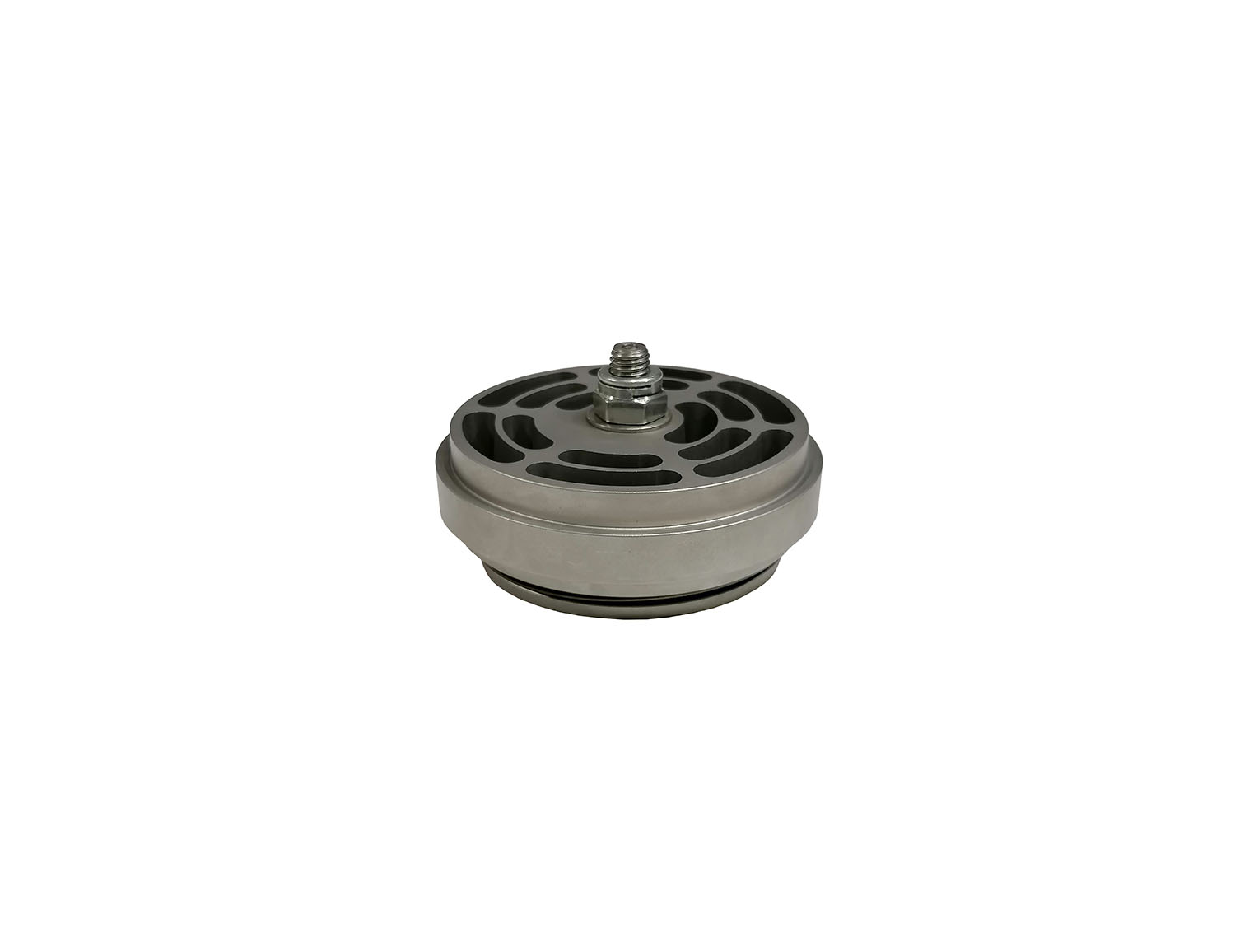

| 1 | 8131802 | SUCTION VALVE |

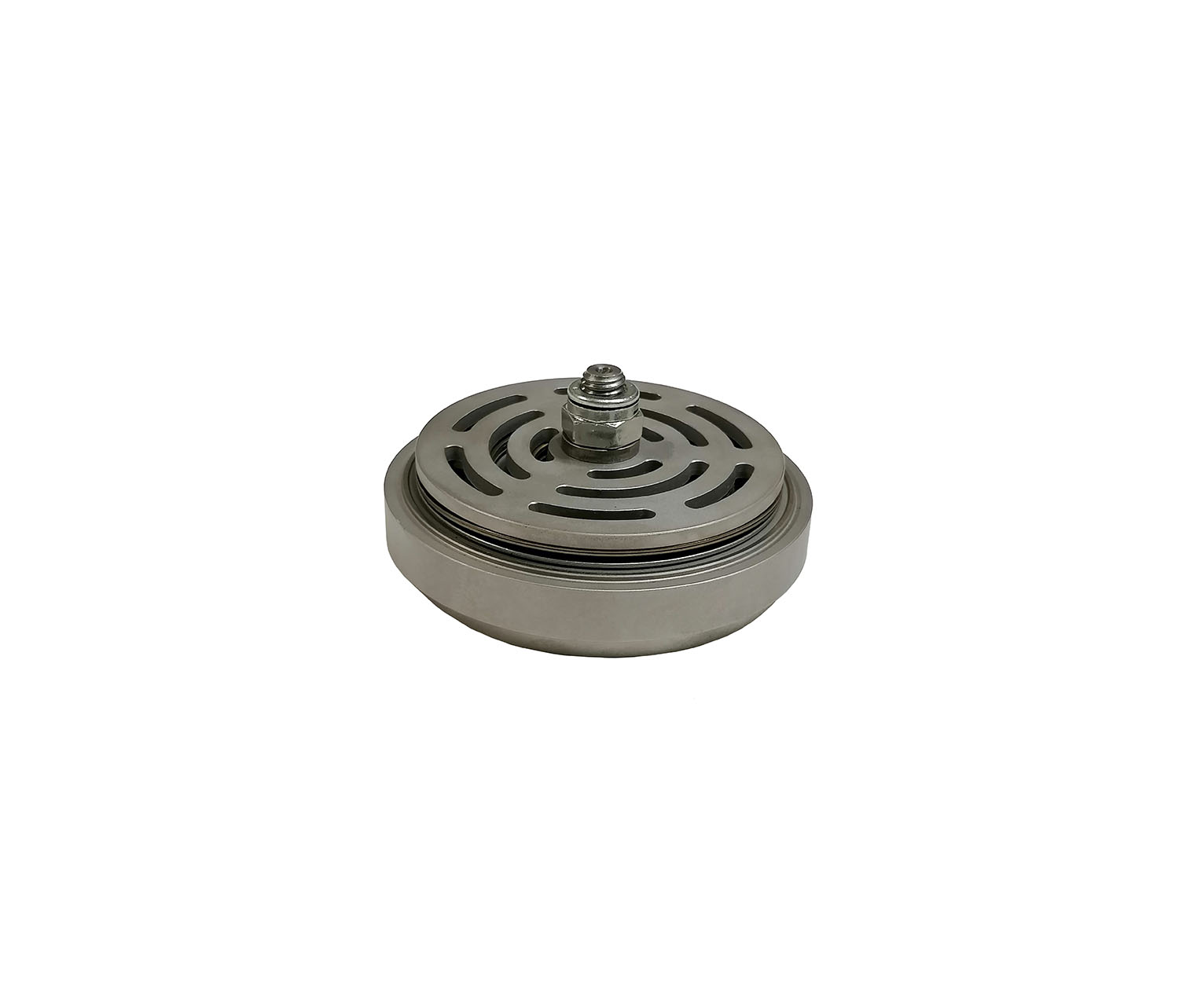

| 1 | 8166076 | 79 RLX VALVE |

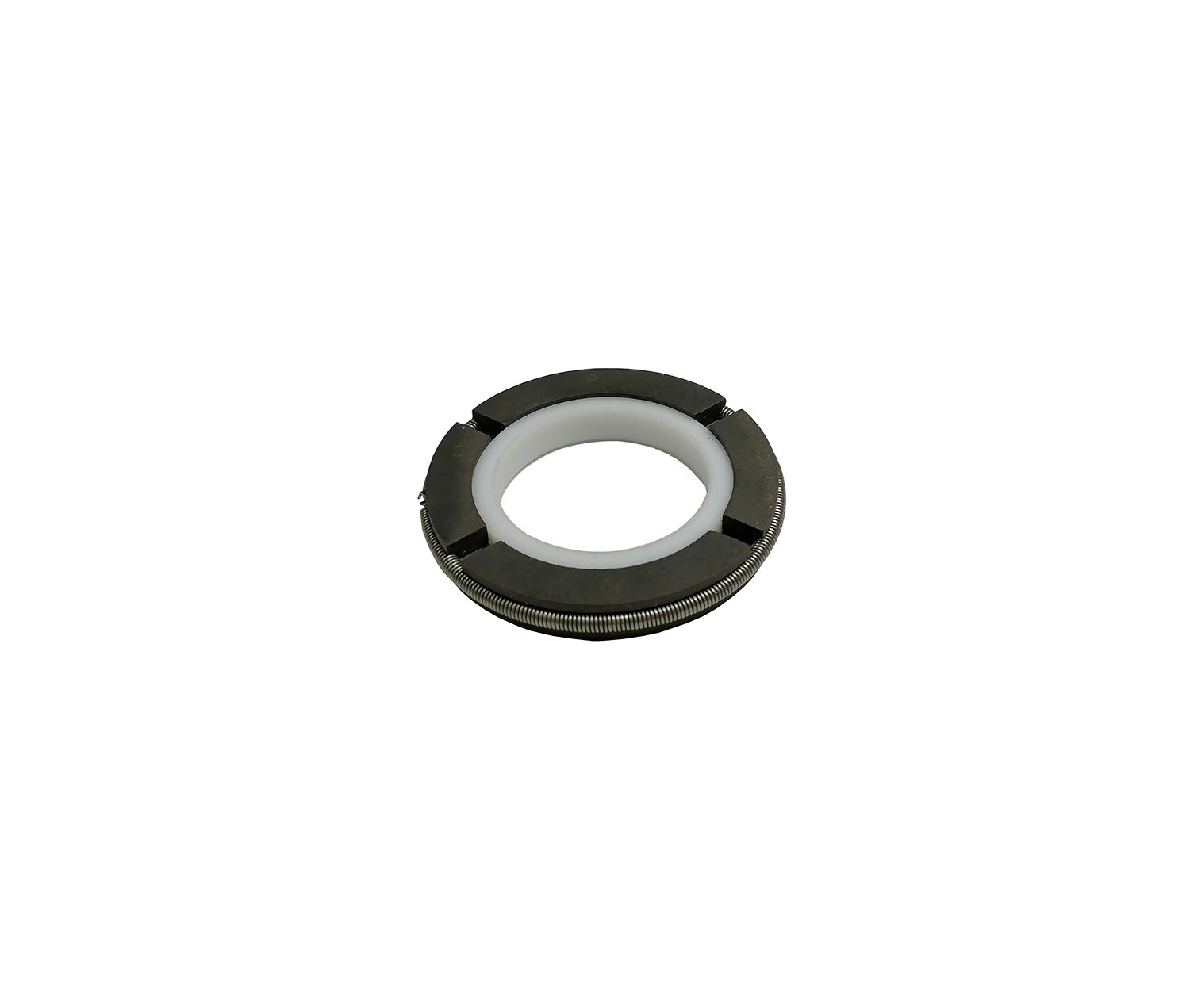

| 8 | 8040758 | RING |

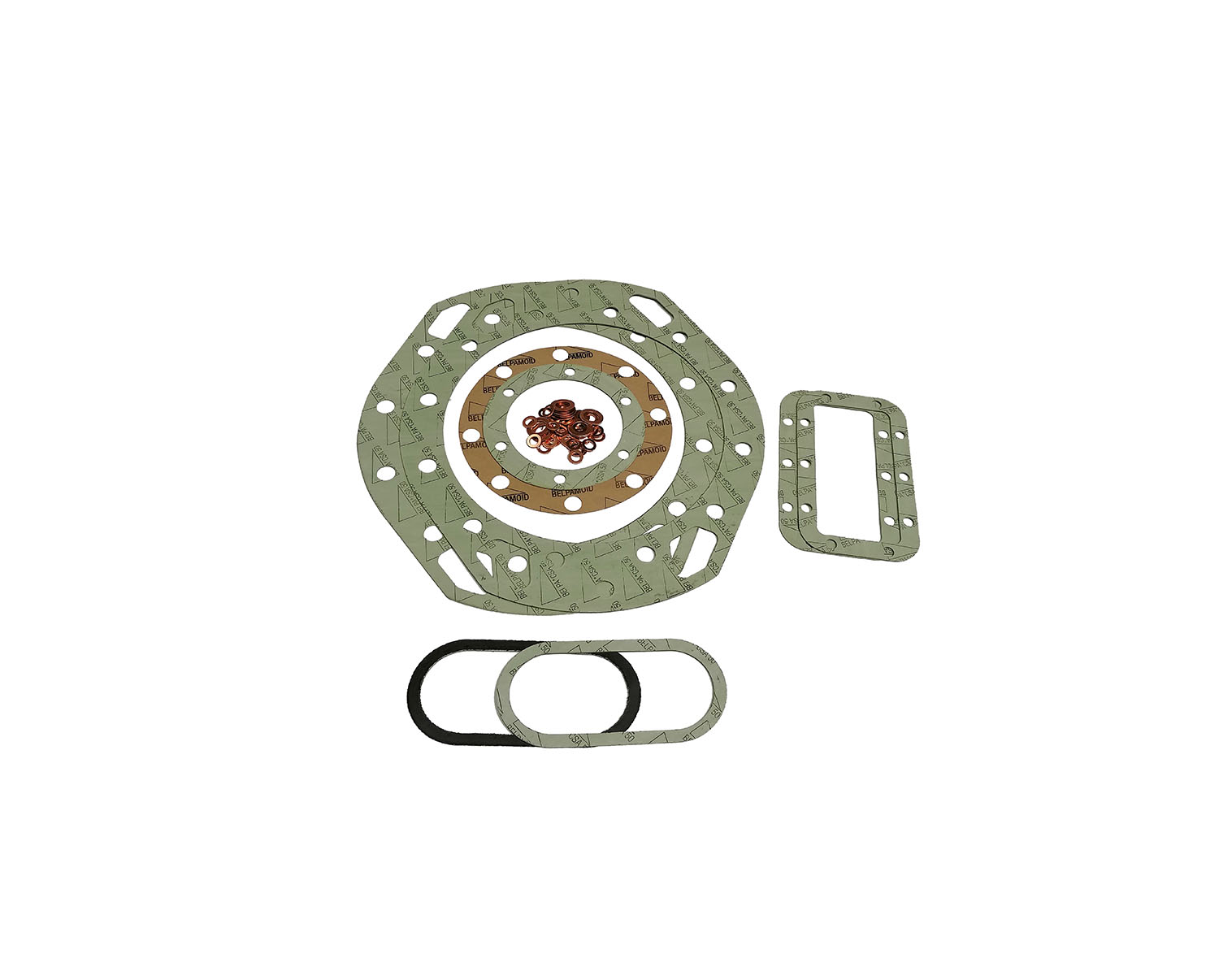

| 1 | 8802649 | JOINT |

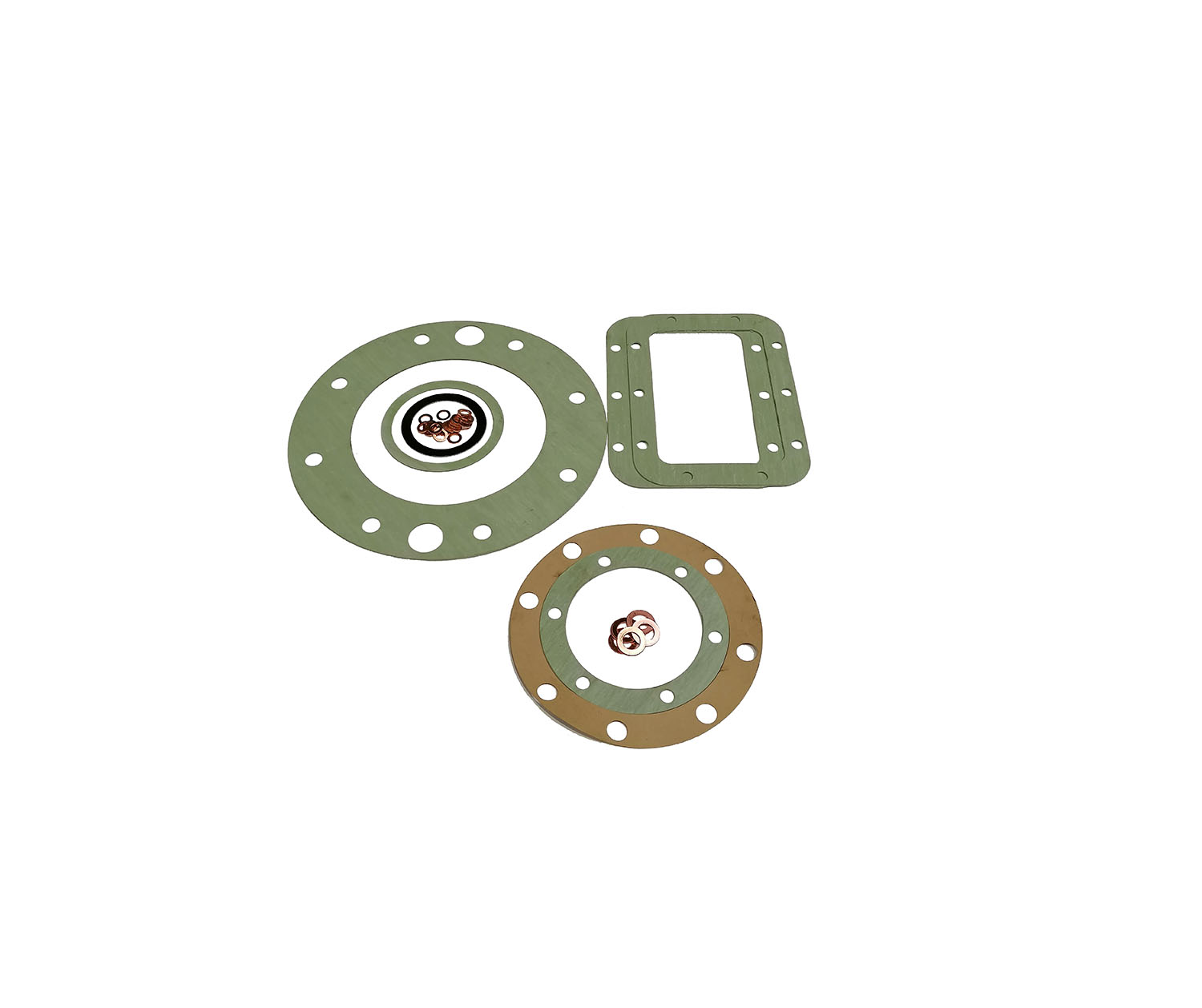

| 1 | 8303399 | JOINT |

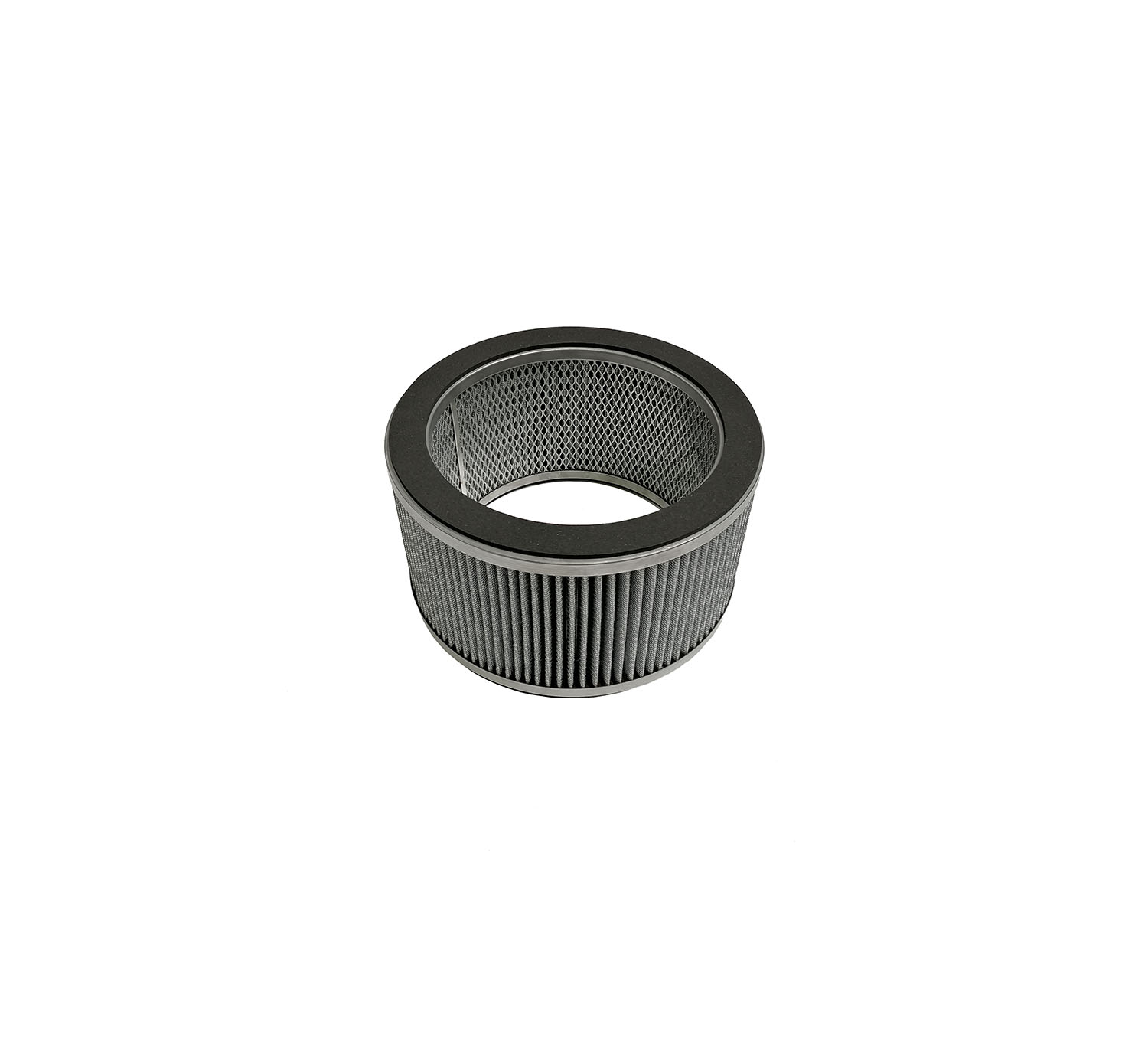

| 1 | 8044086 | CARTRIDGE FILTER AIR |

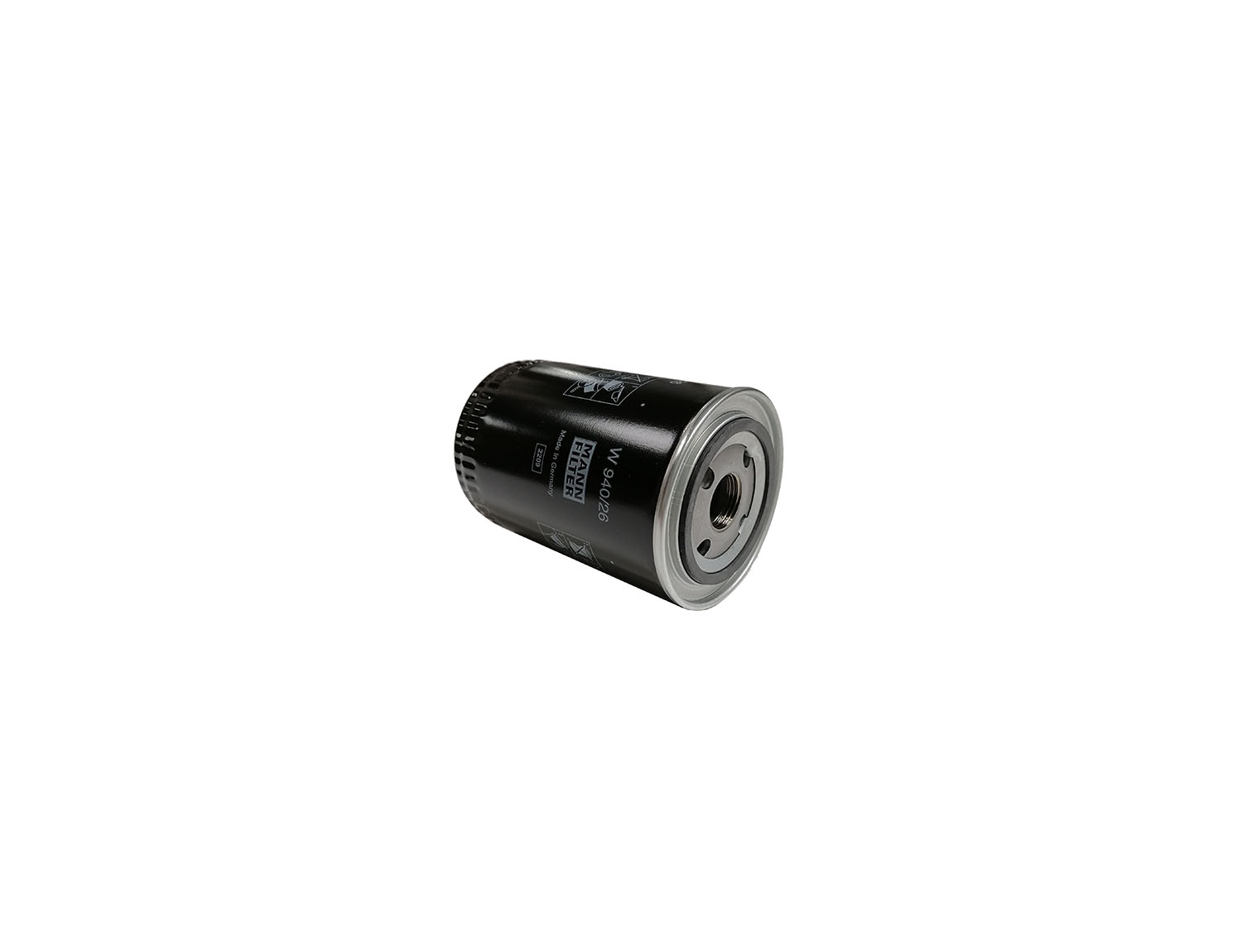

| 1 | 8553605 | CARTRIDGE FILTER OIL |

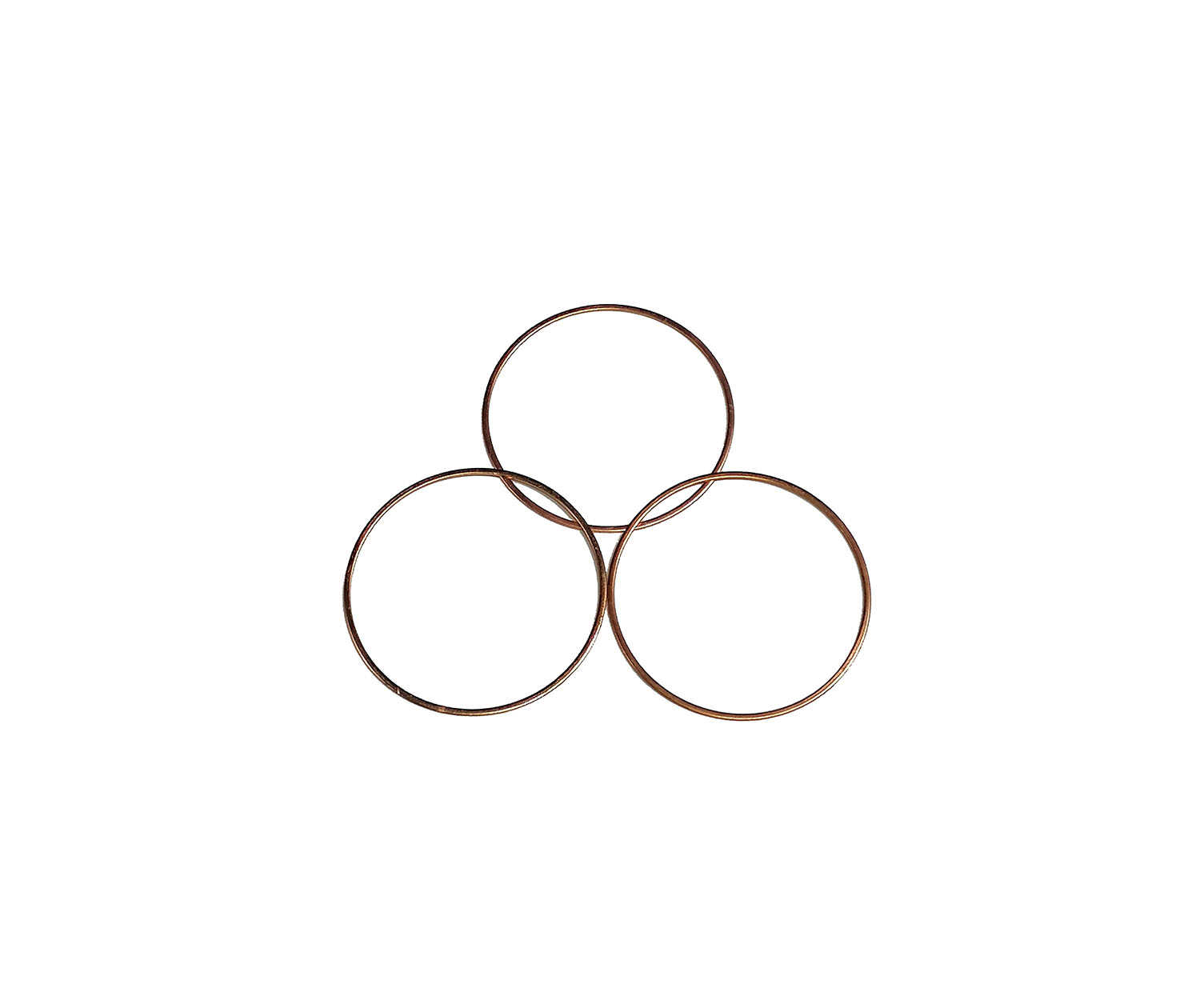

| 8 | 8659779 | JOINT |

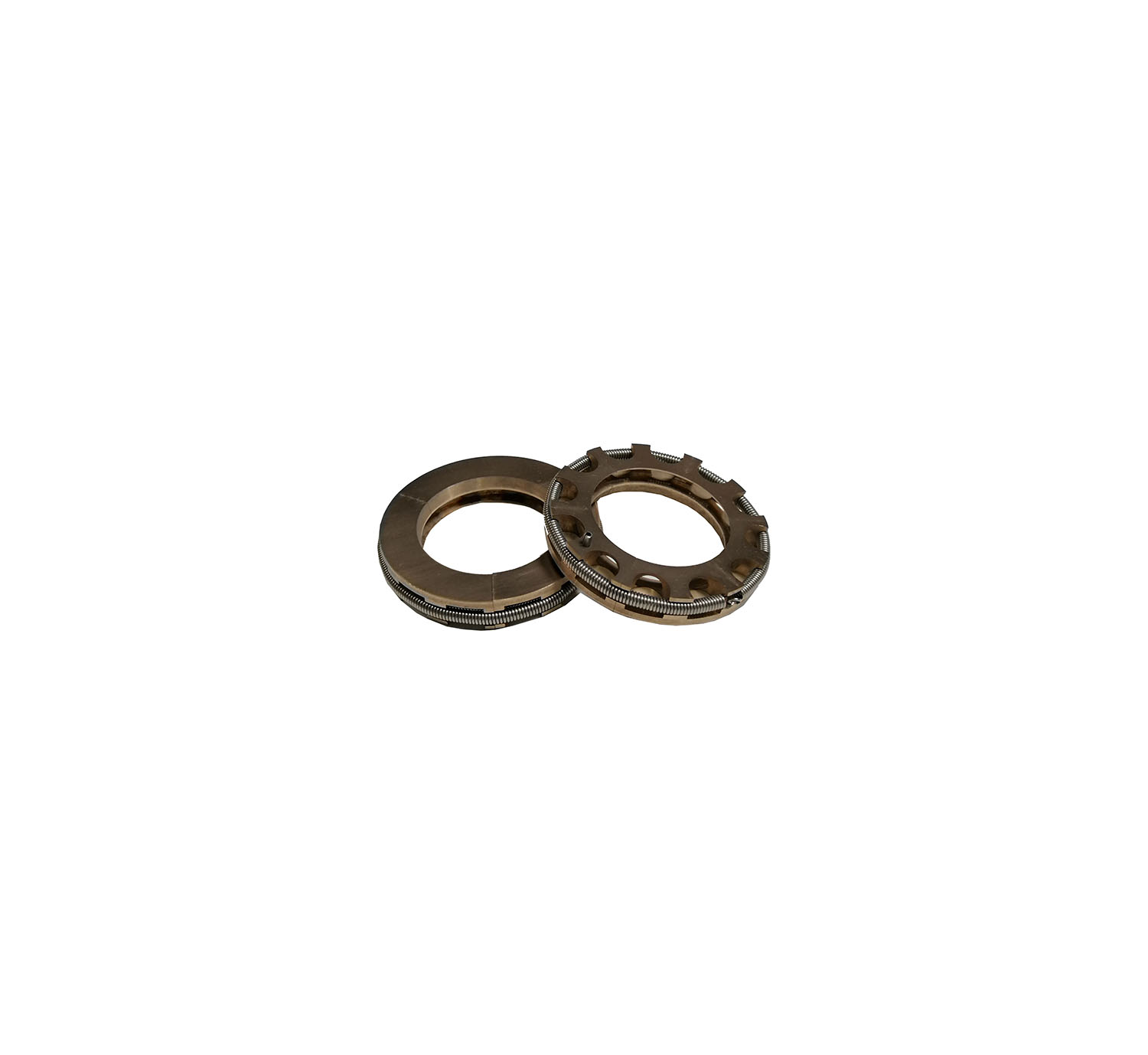

| 2 | 8267435 | RING |

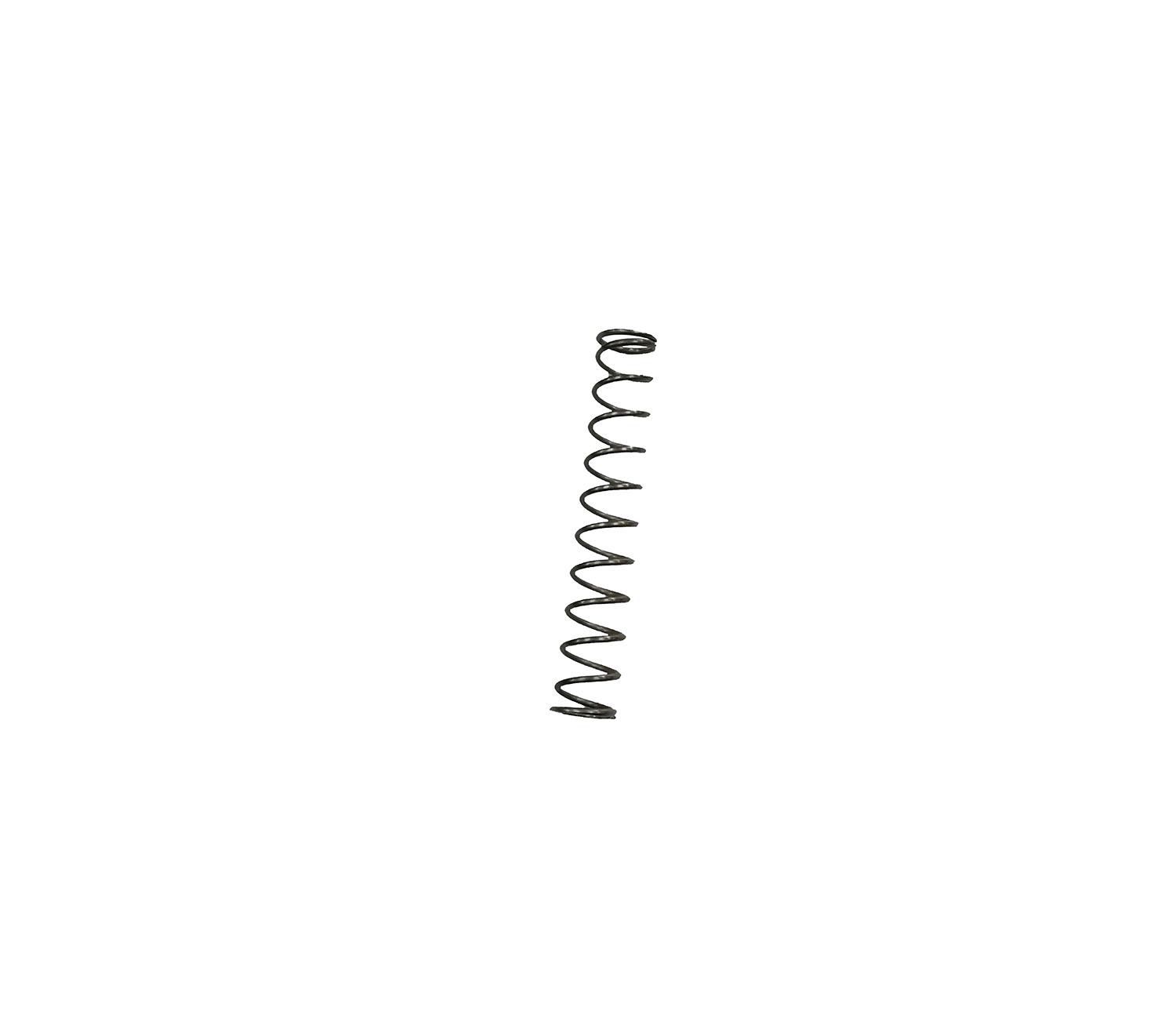

| 2 | 8070392 | SPRING |

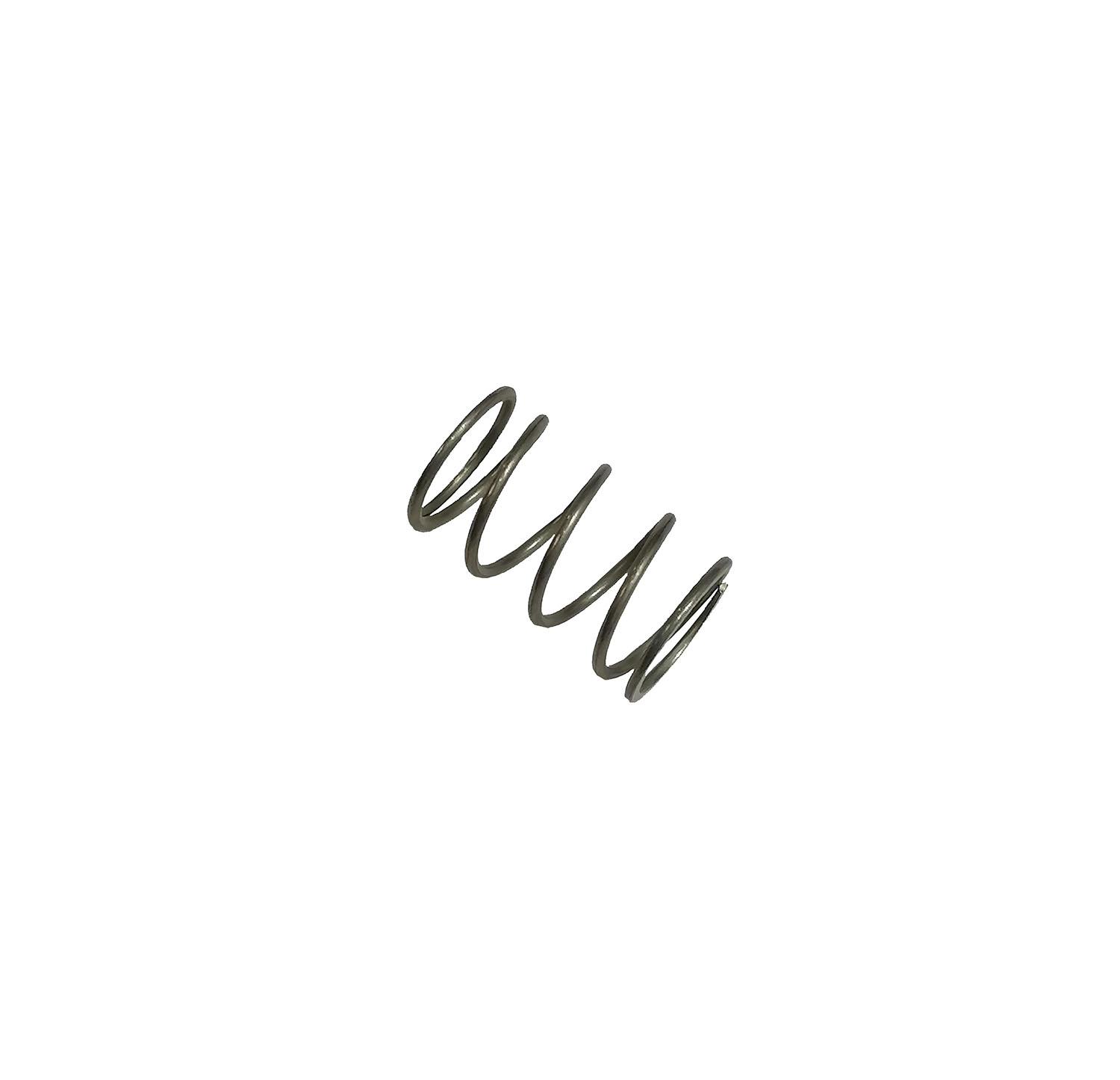

| 6 | 8454649 | SPRING |

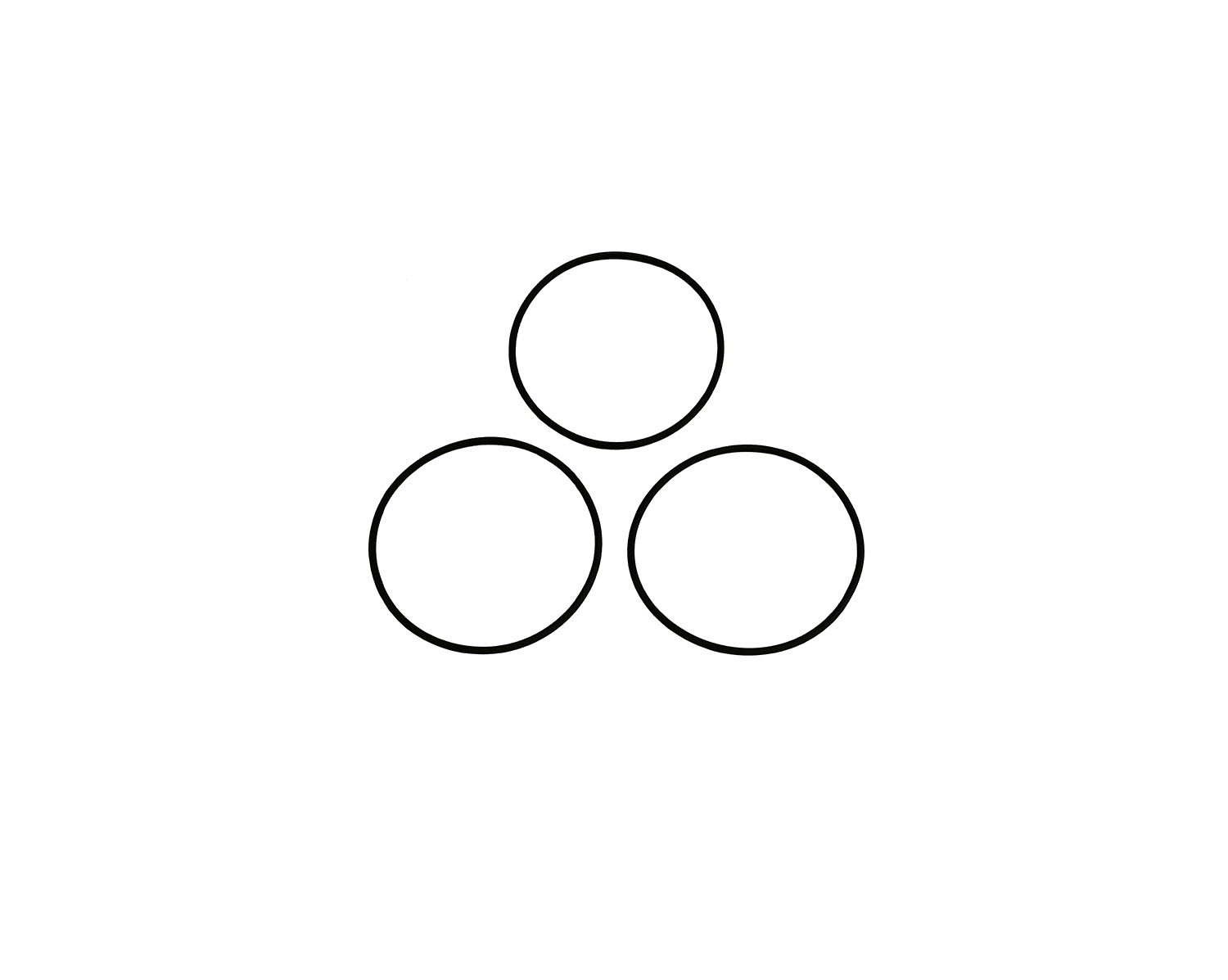

| 12 | 8672172 | O-RING |

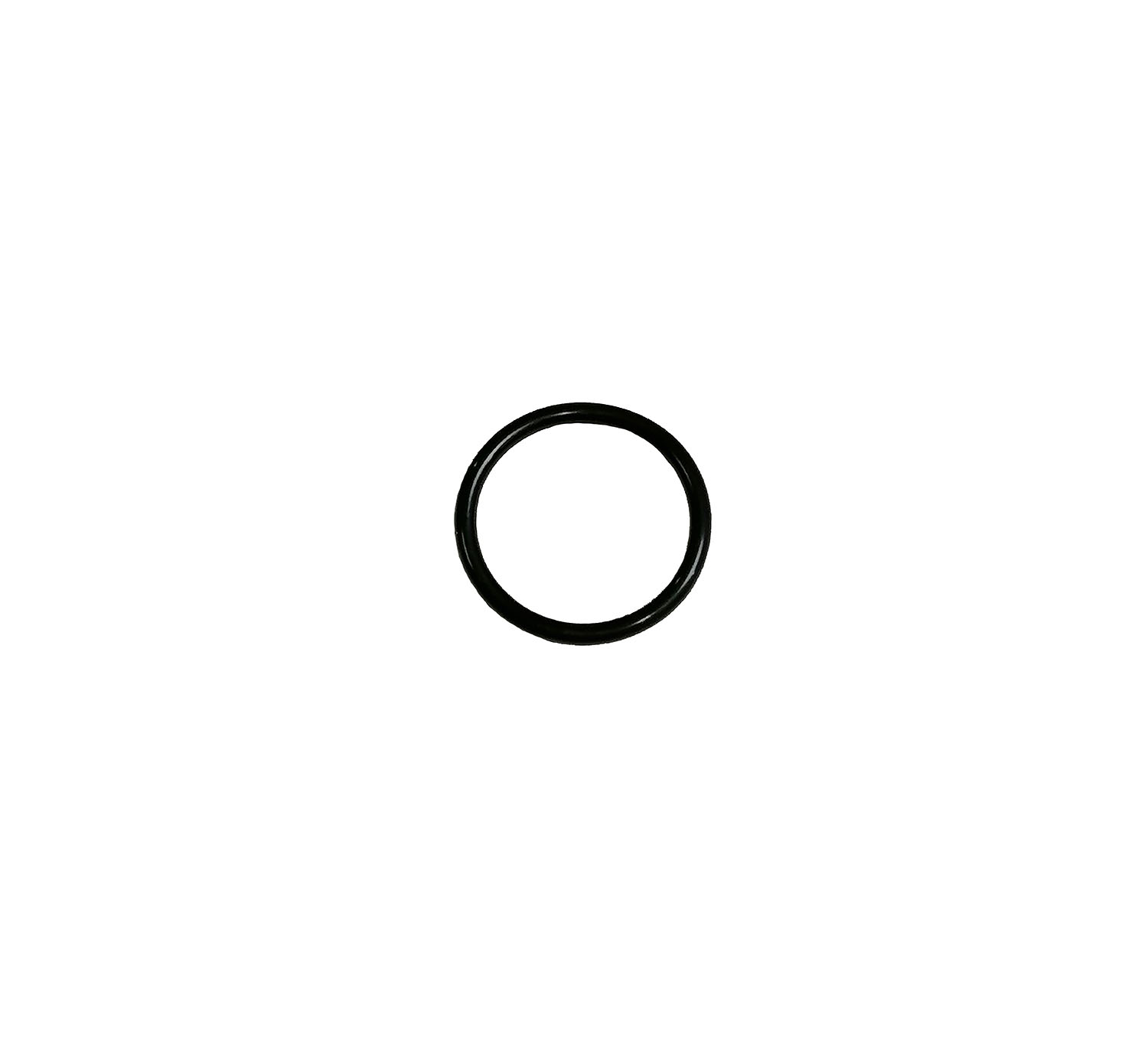

| 9 | 8888617 | RING |

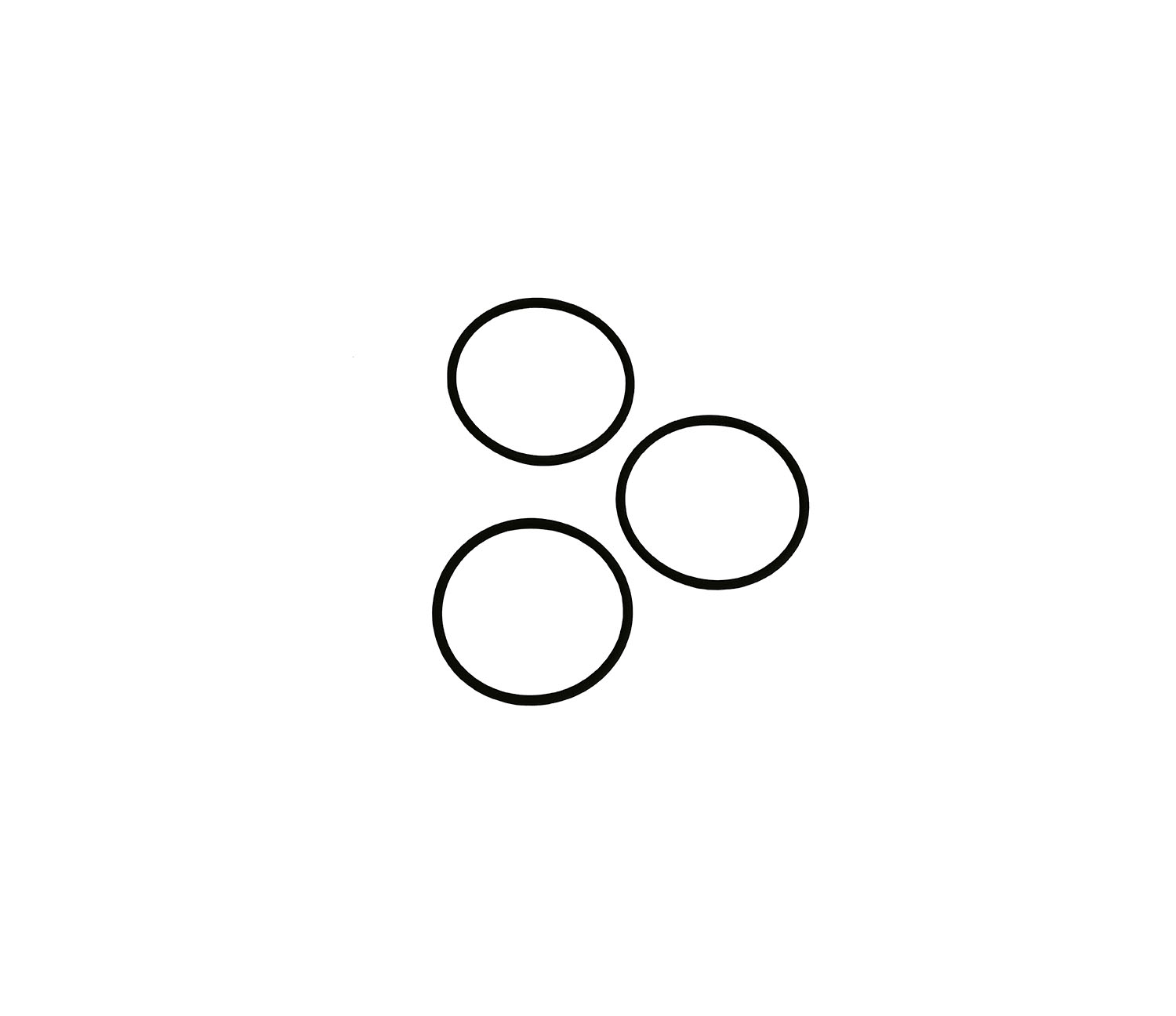

| 2 | 8498554 | O-RING |

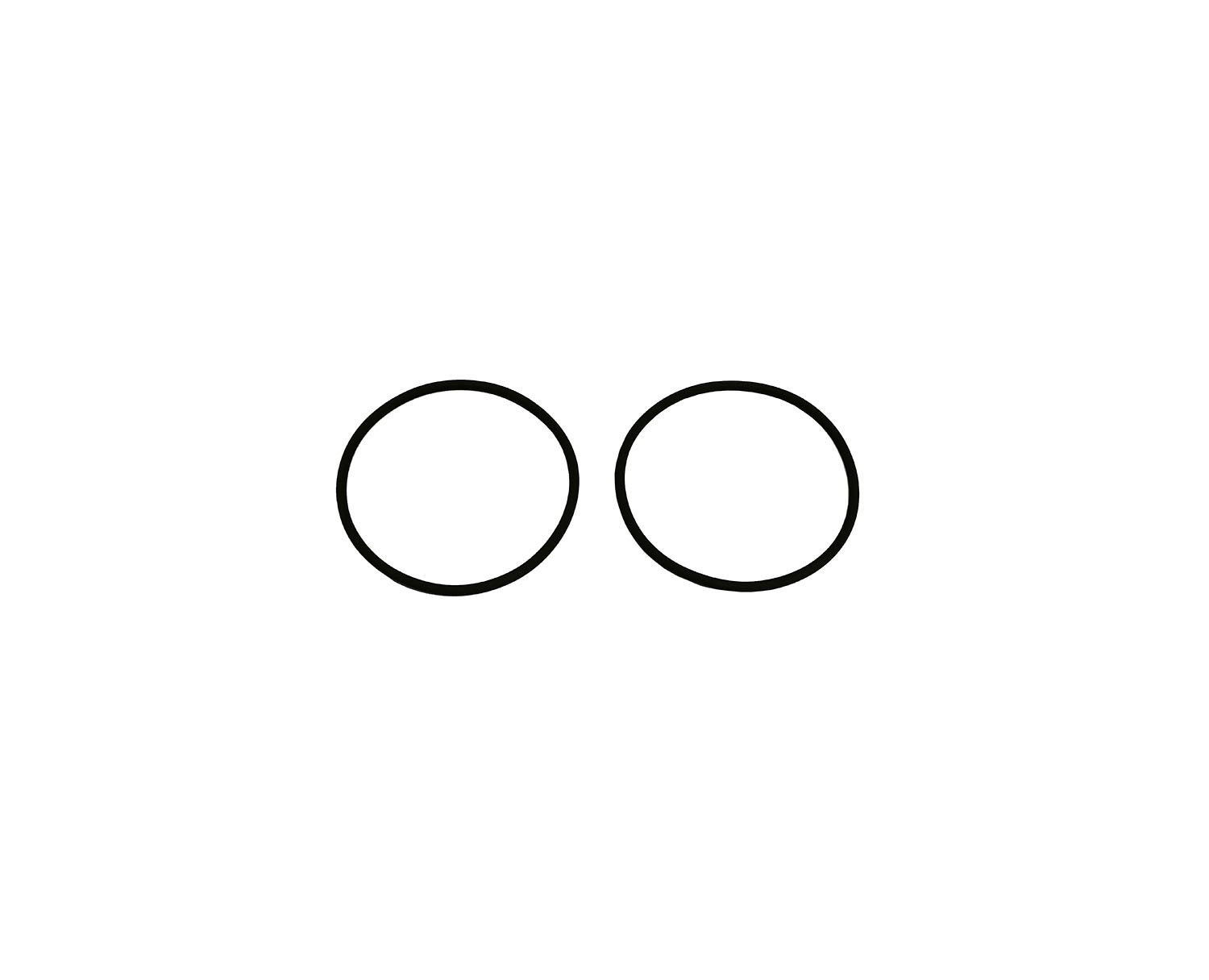

| 4 | 8332463 | O-RING |

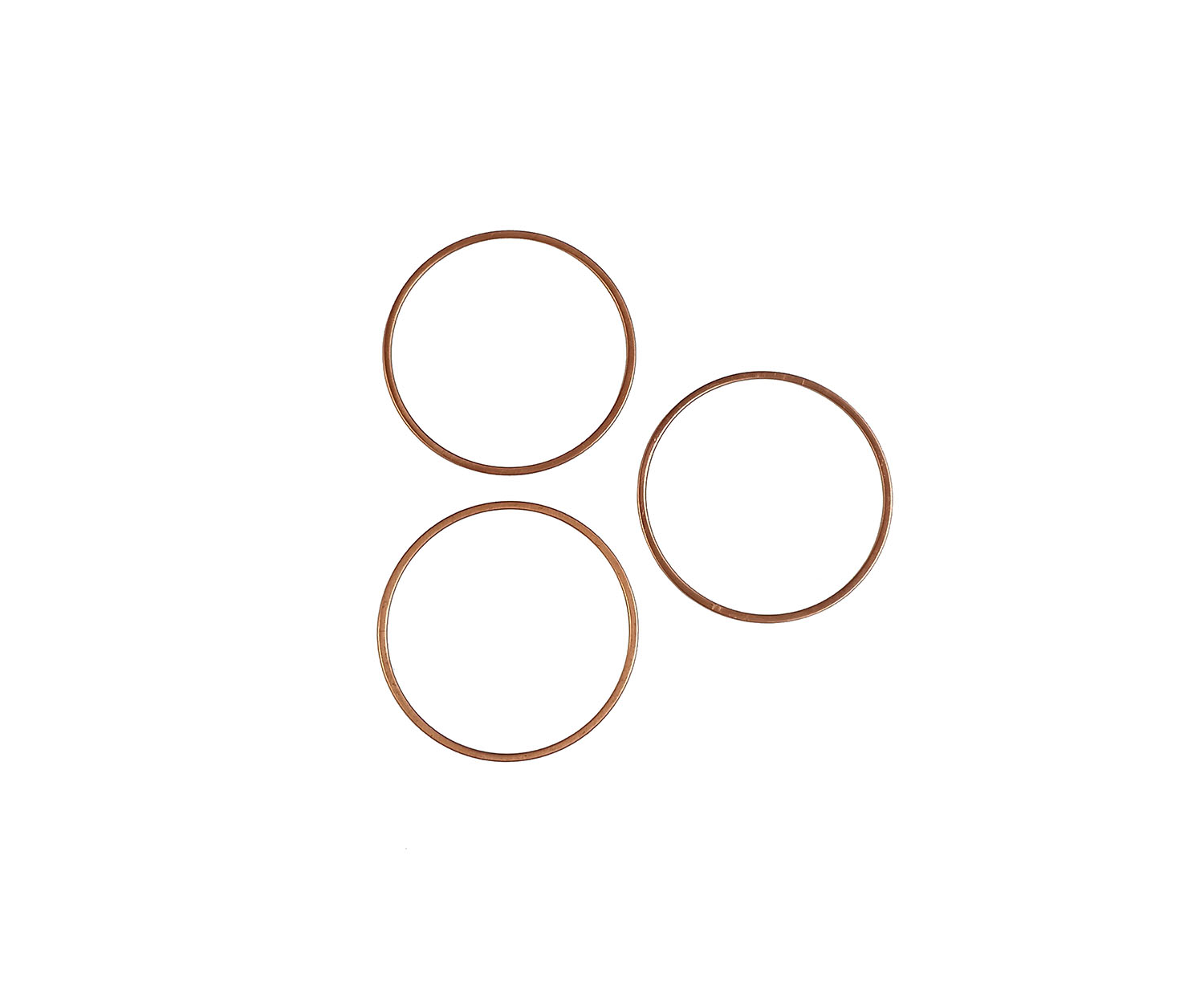

| 2 | 8640026 | JOINT |

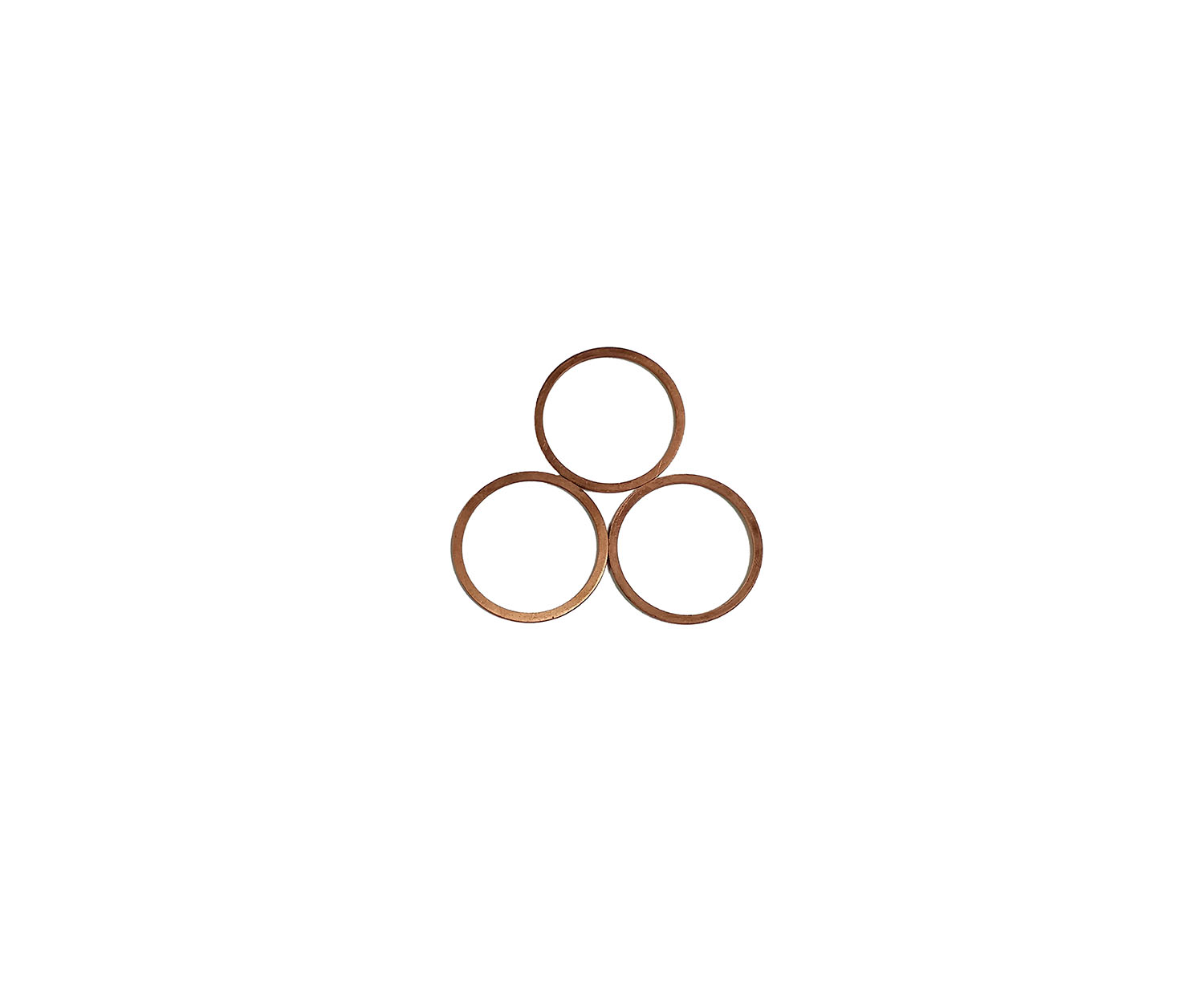

| 4 | 8912822 | JOINT |

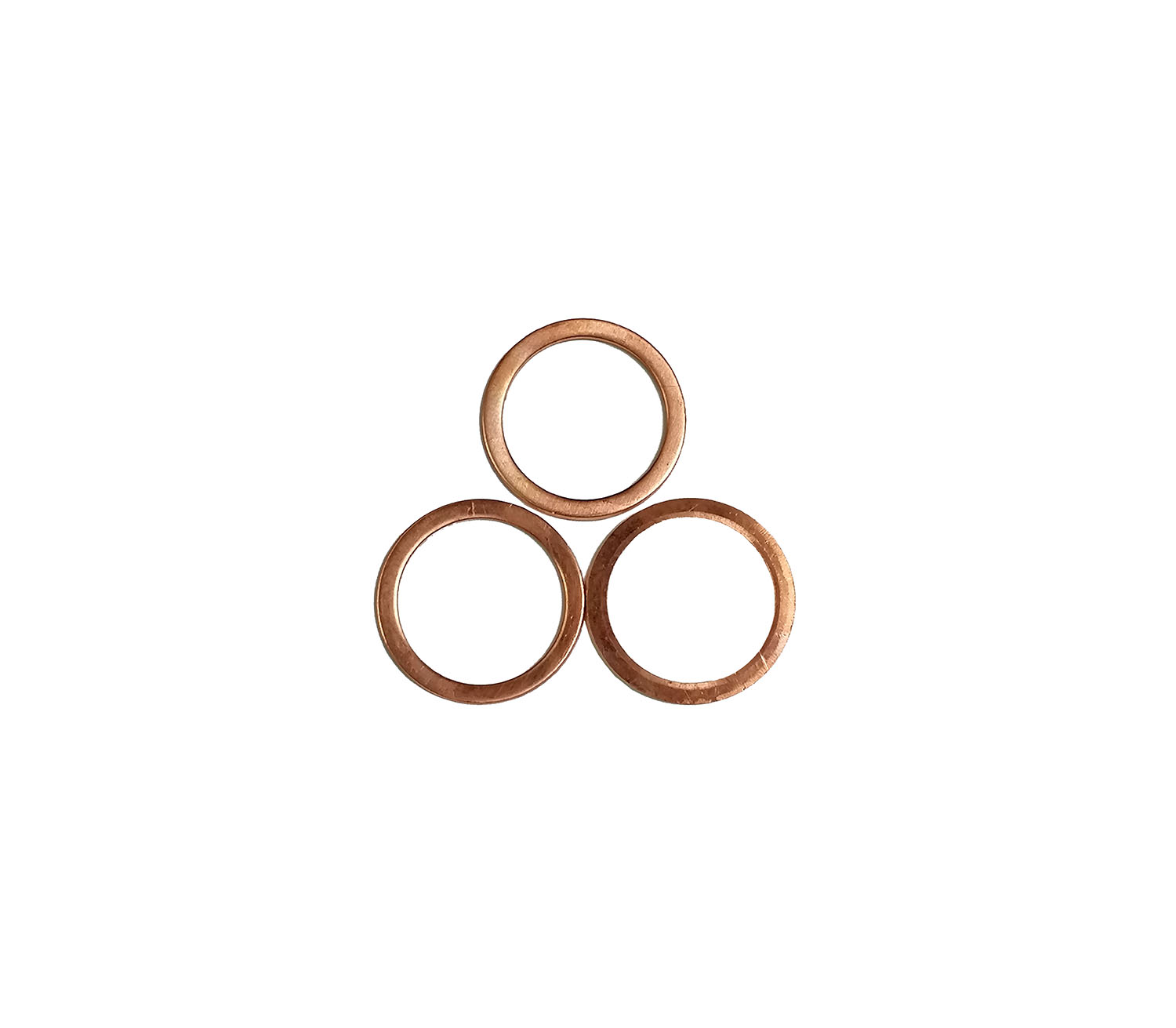

| 4 | 8085413 | JOINT |

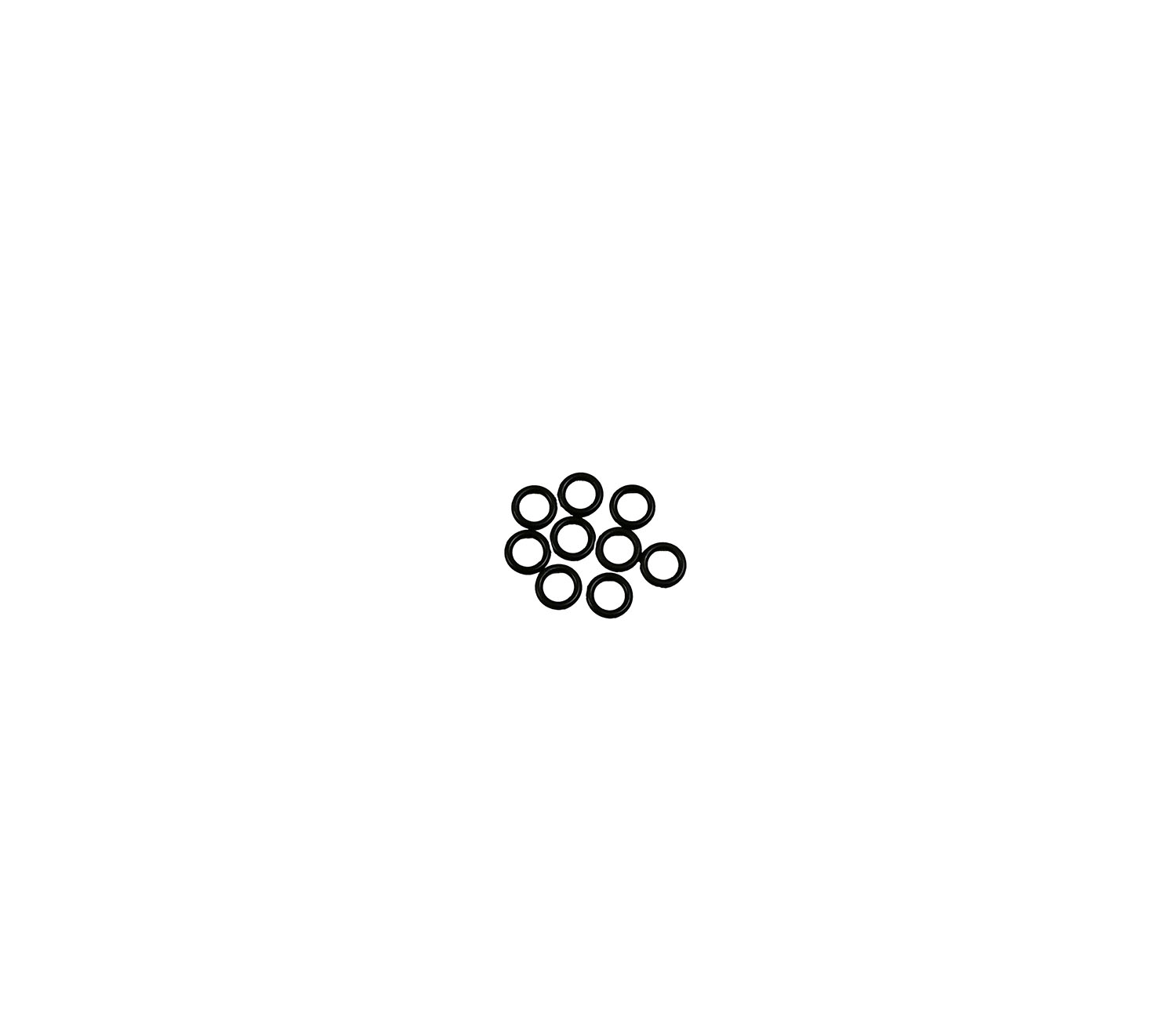

| 2 | 8329636 | RING |

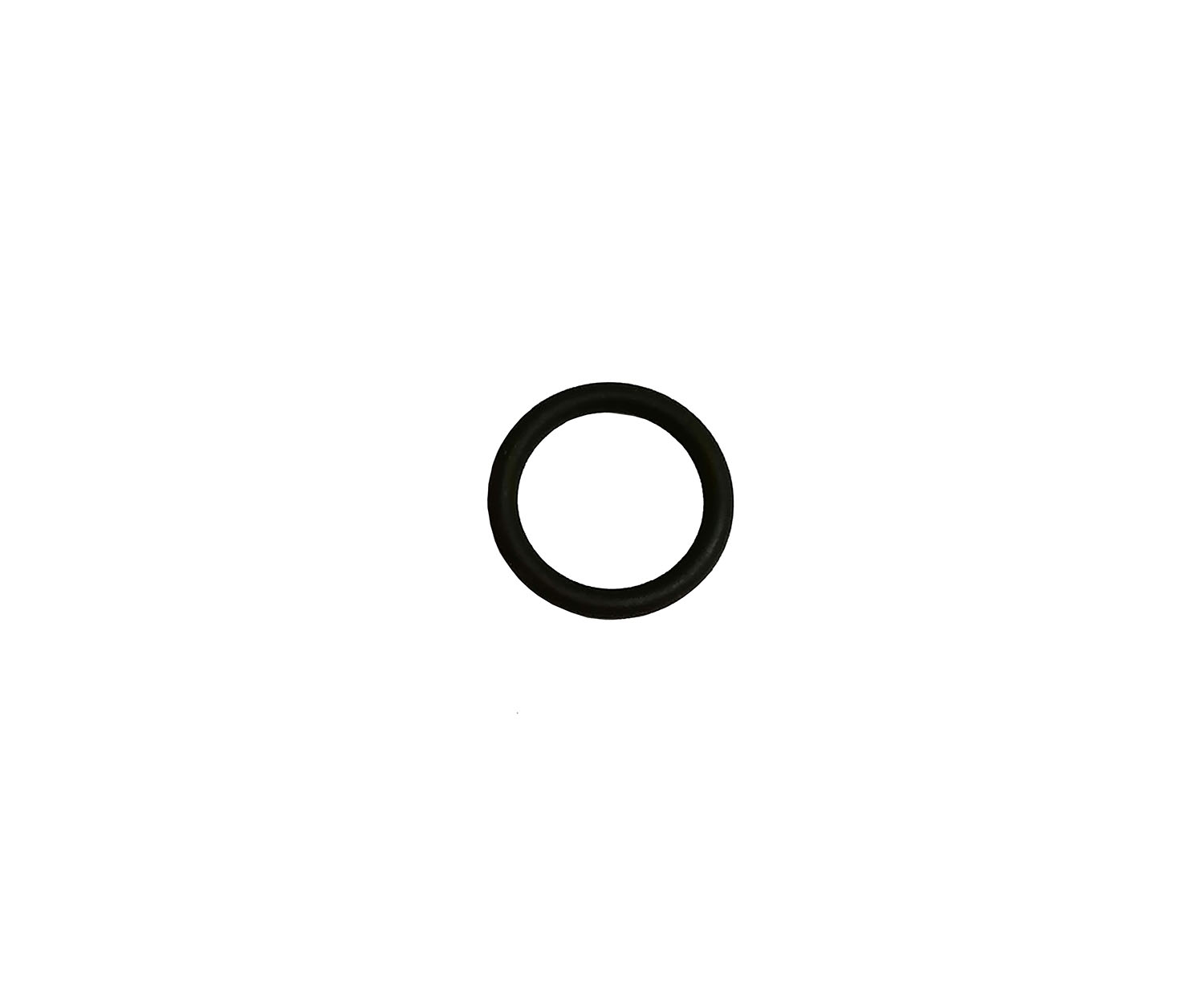

| 2 | 8582558 | RING |
