8,000 hour maintenance kit for ABC 4HA-6-BIS-LT air piston compressor
List of parts:
| Amount | Code | Description |
|---|---|---|

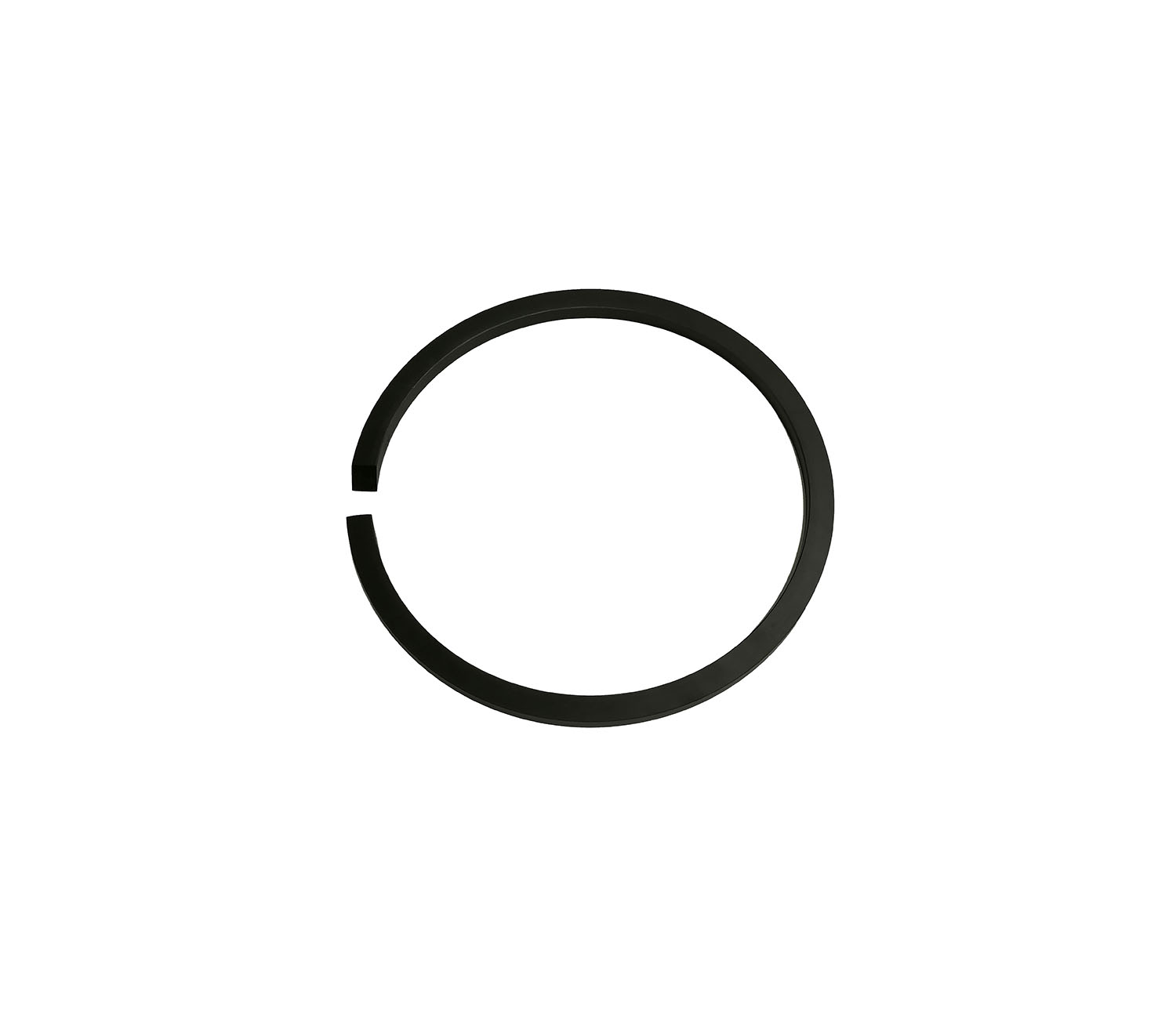

| 4 | 3831770 | PISTON RING DIAM. 280 MM. |

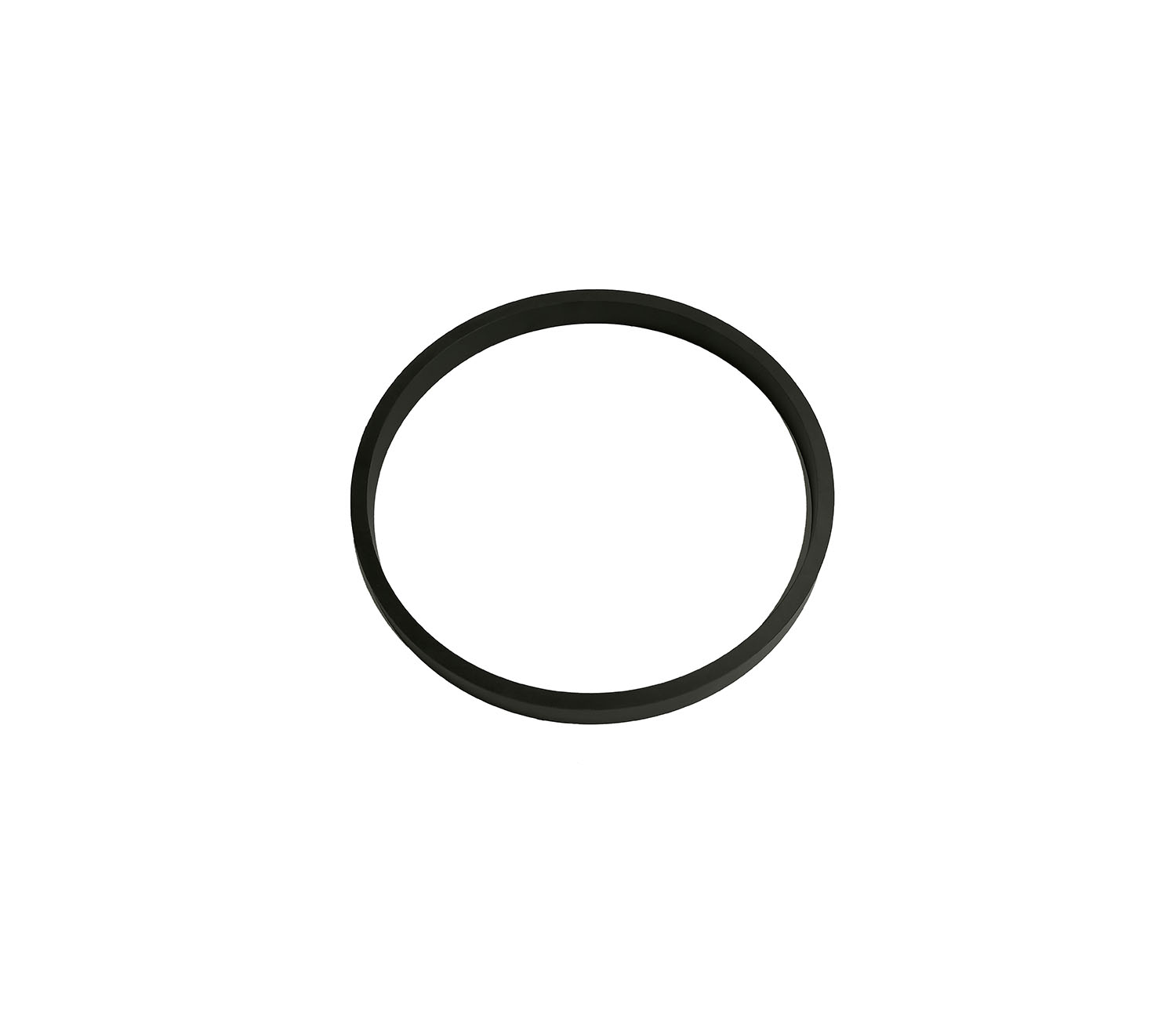

| 4 | 3831780 | RIDER RING DIAM. 280 MM |

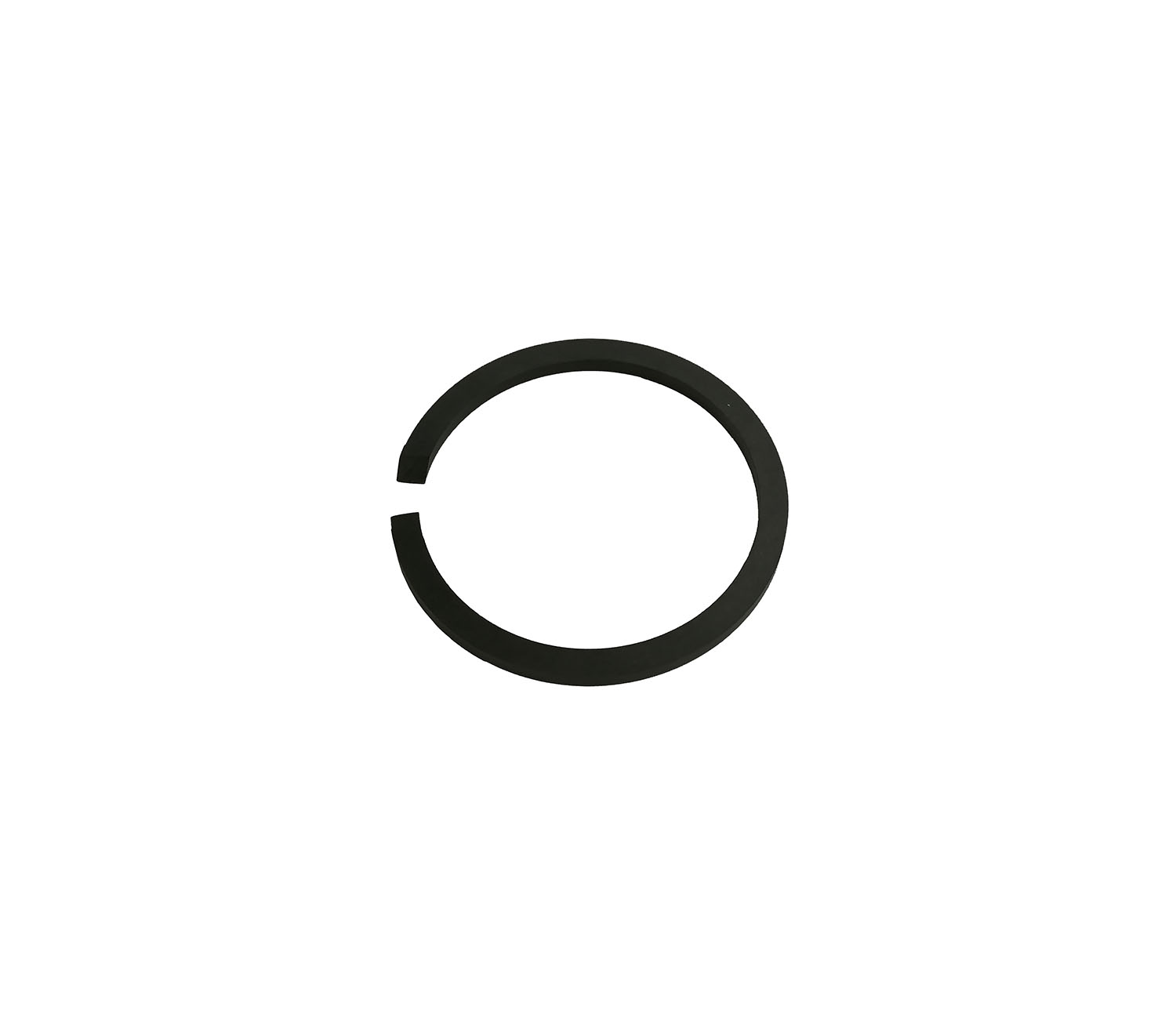

| 8 | 3831570 | PISTON RING DIAM. 140 MM |

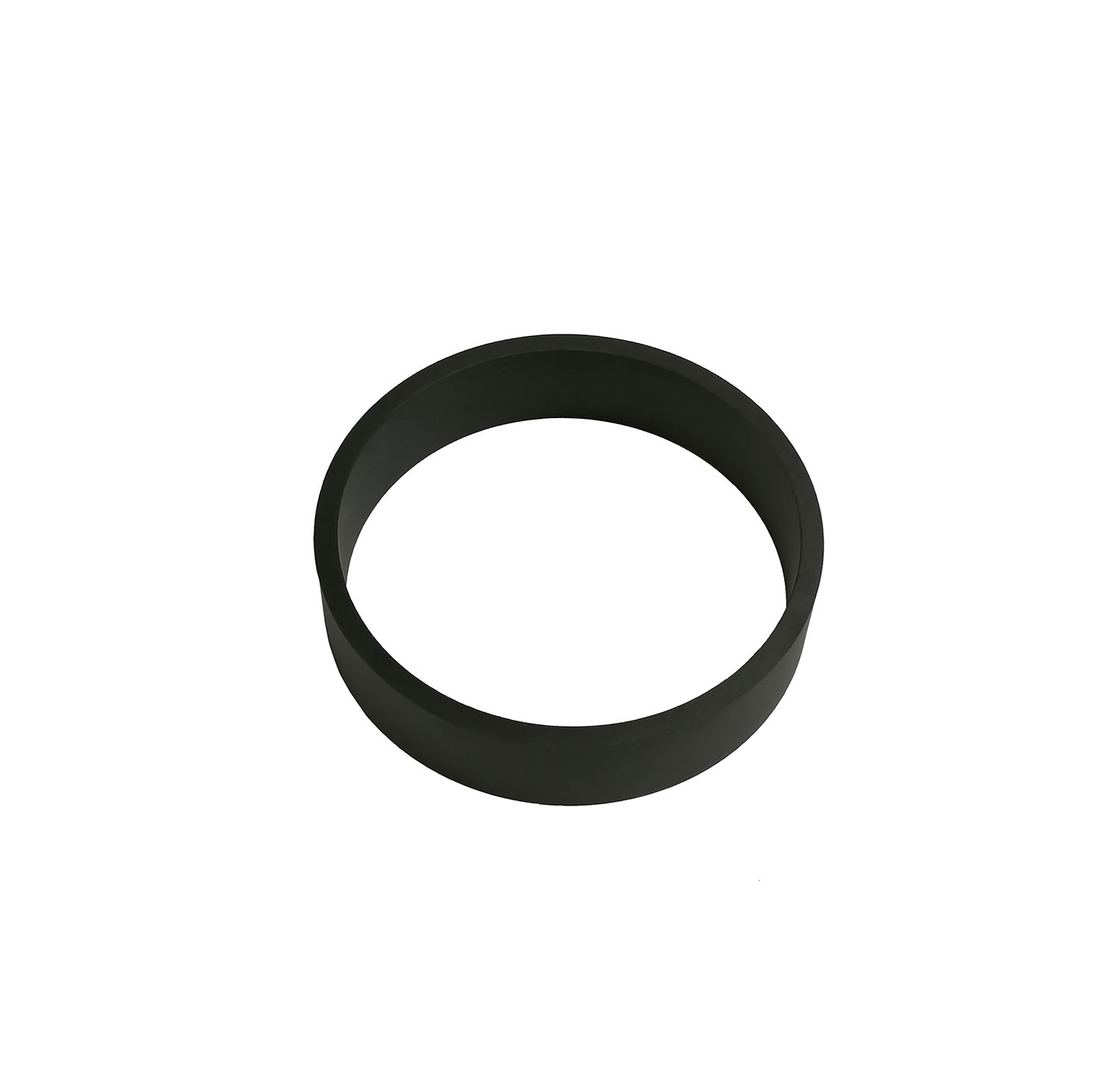

| 2 | 3831580 | RIDER RING DIAM. 140 MM |

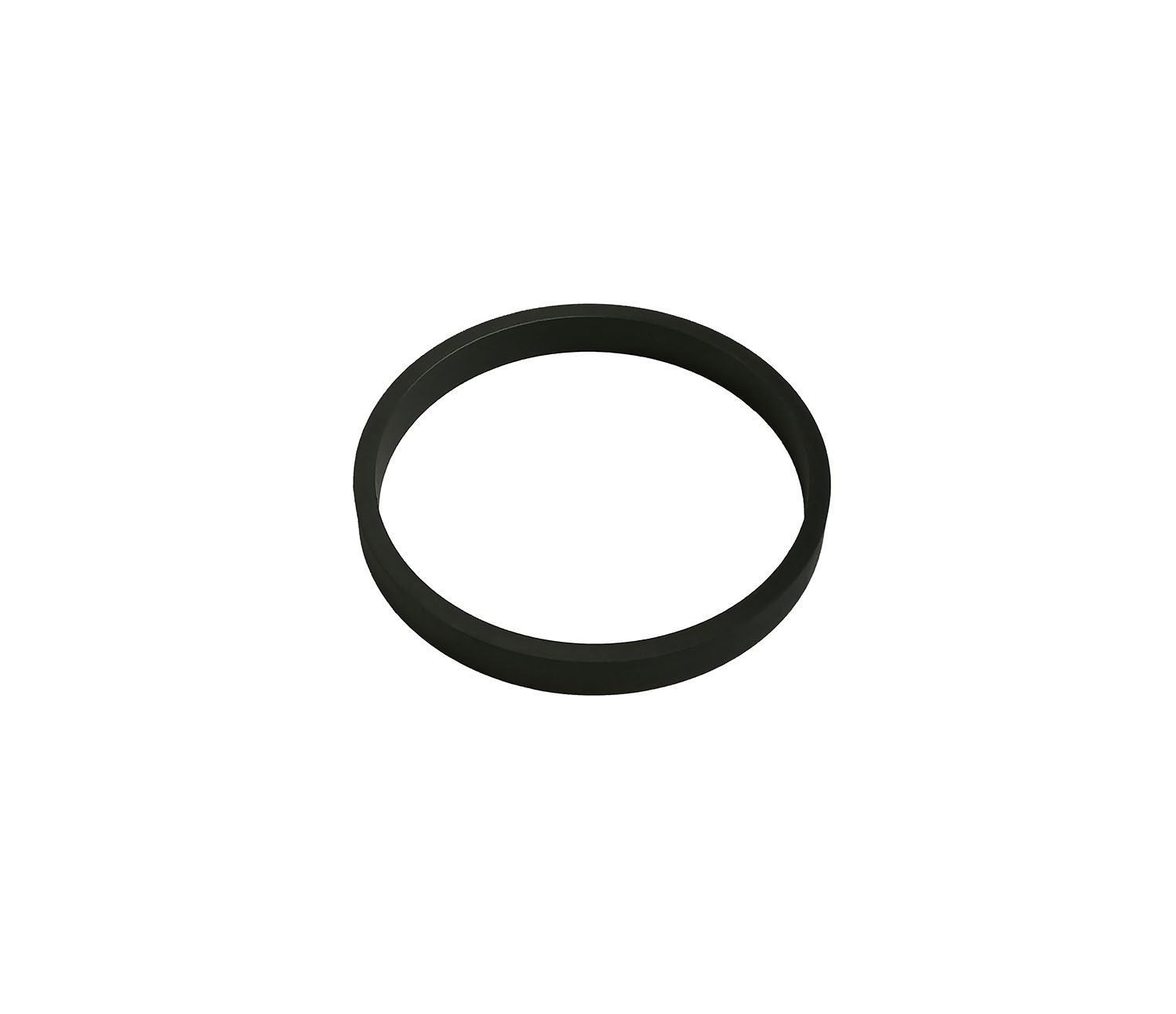

| 2 | 3831590 | RIDER RING DIAM. 140 MM |

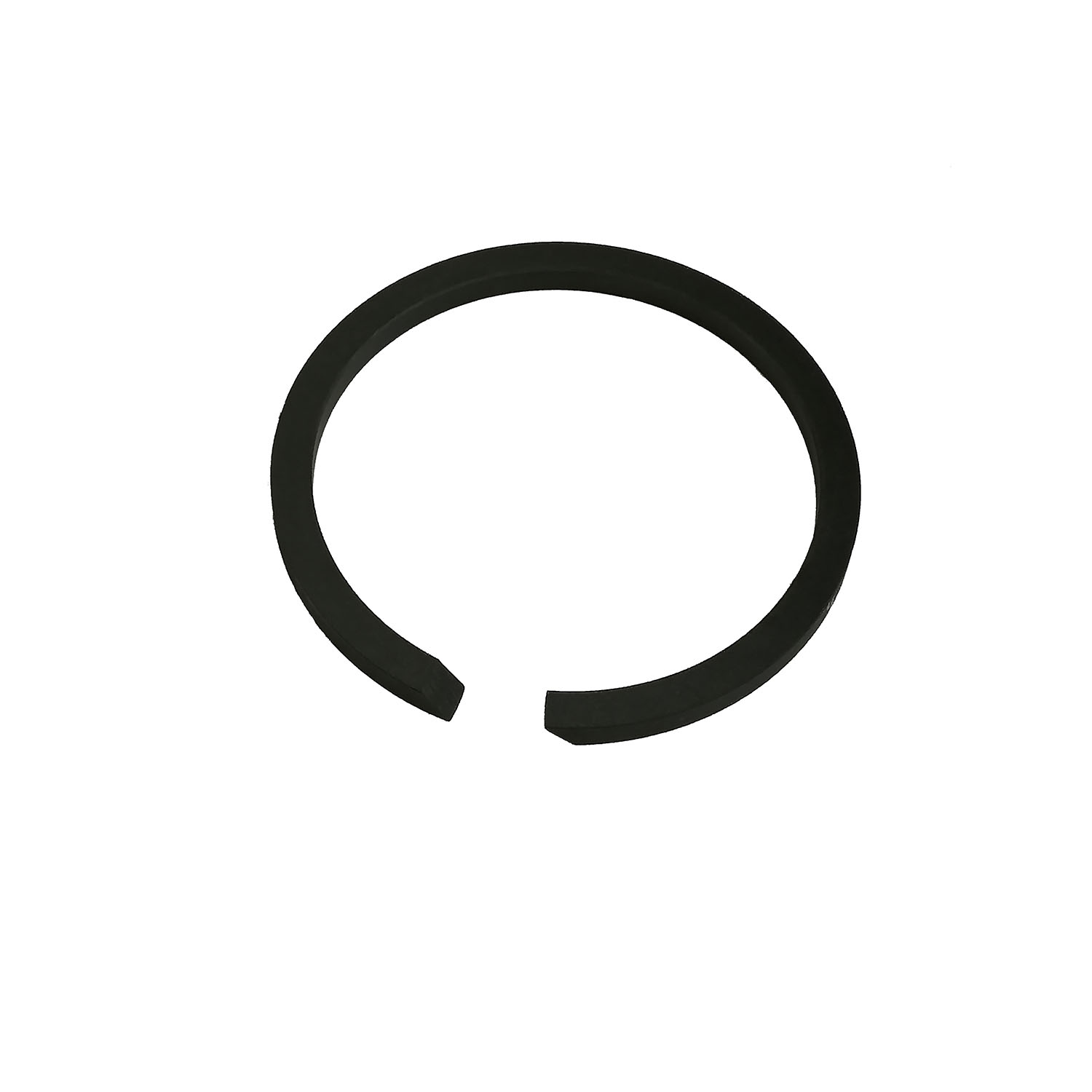

| 4 | 3831440 | PISTON RING DIAM.105 MM |

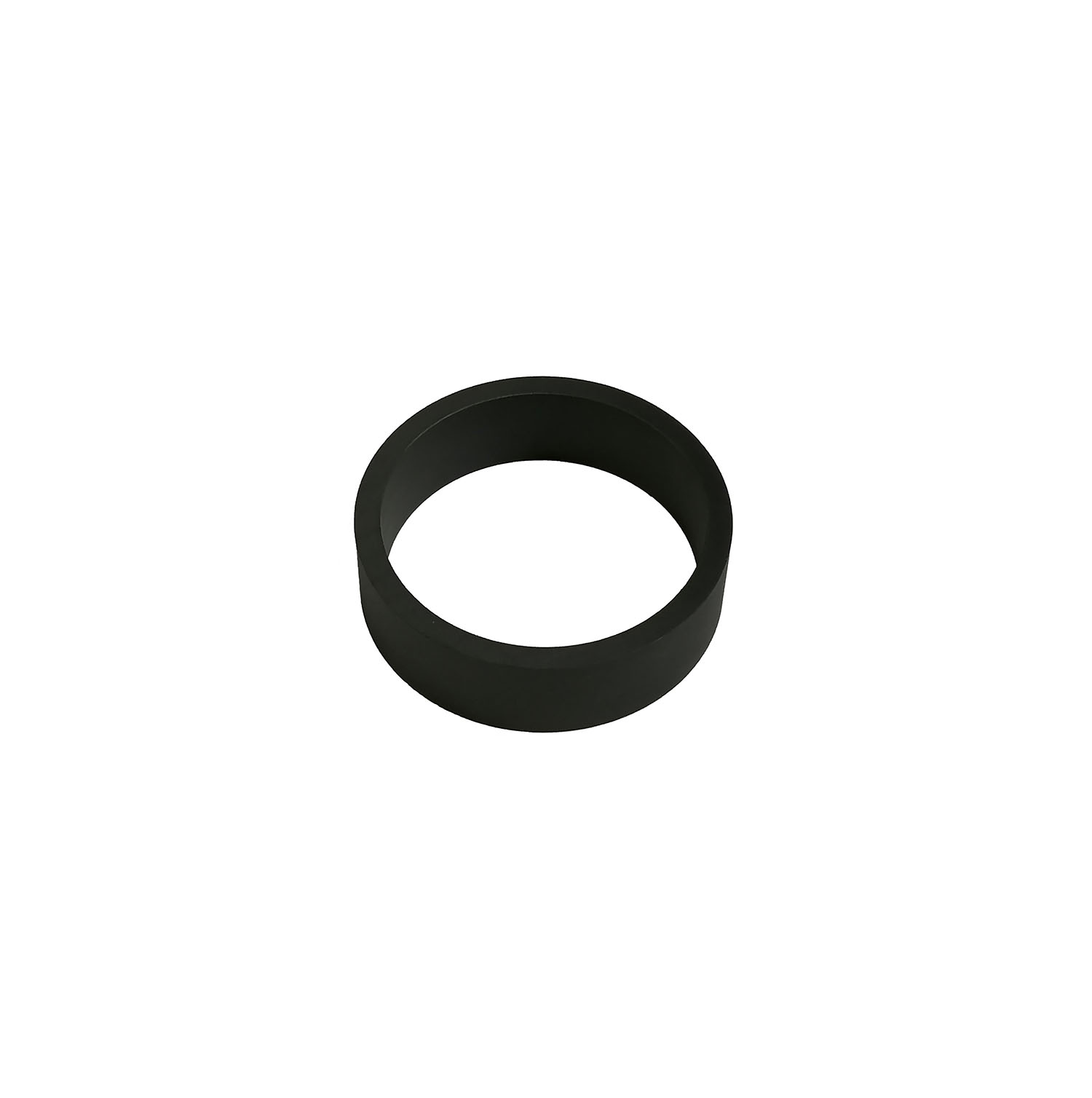

| 2 | 3831450 | RIDER RING DIAM. 105 MM |

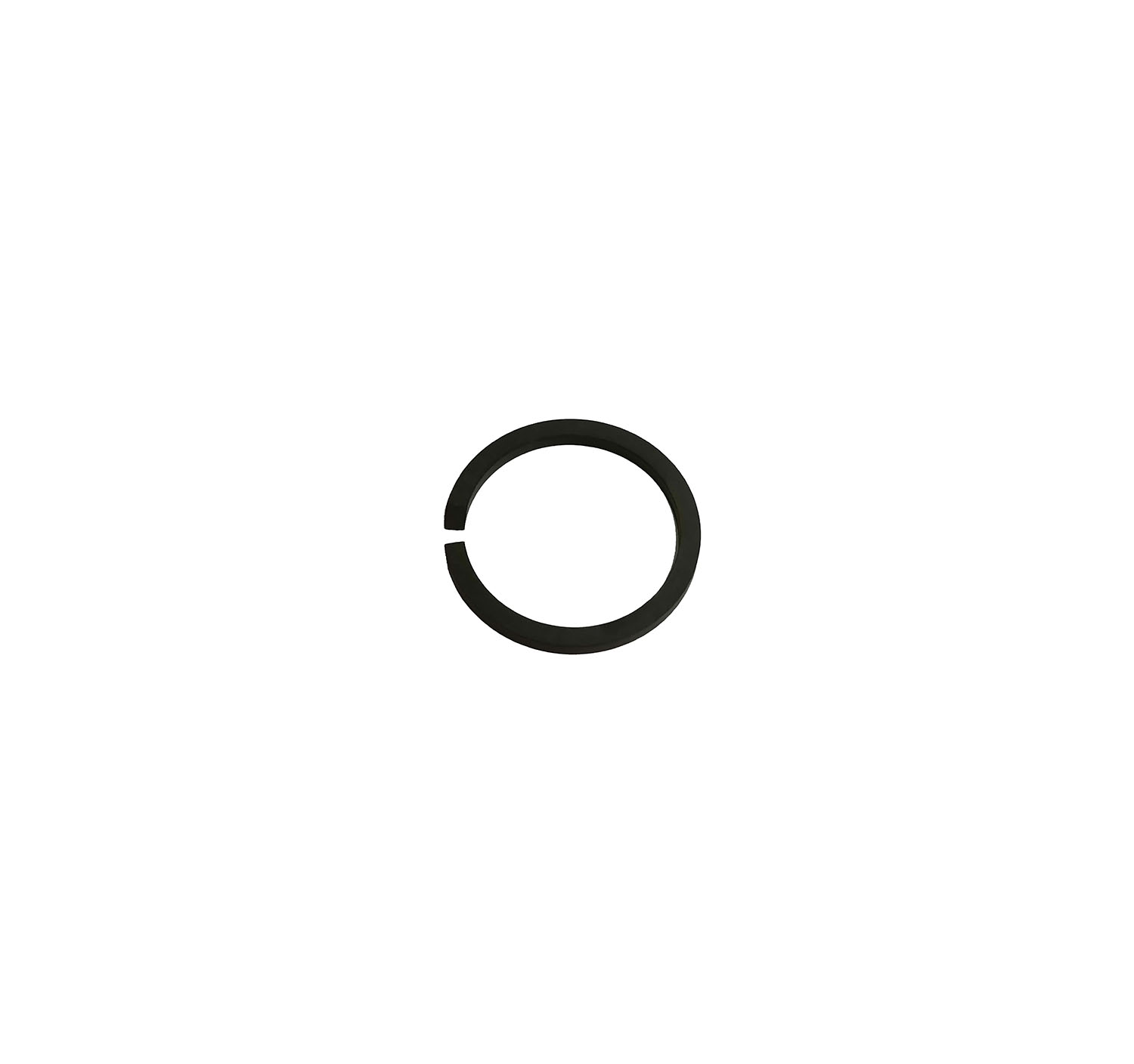

| 7 | 3831400 | PISTON RING DIAM. 75 MM |

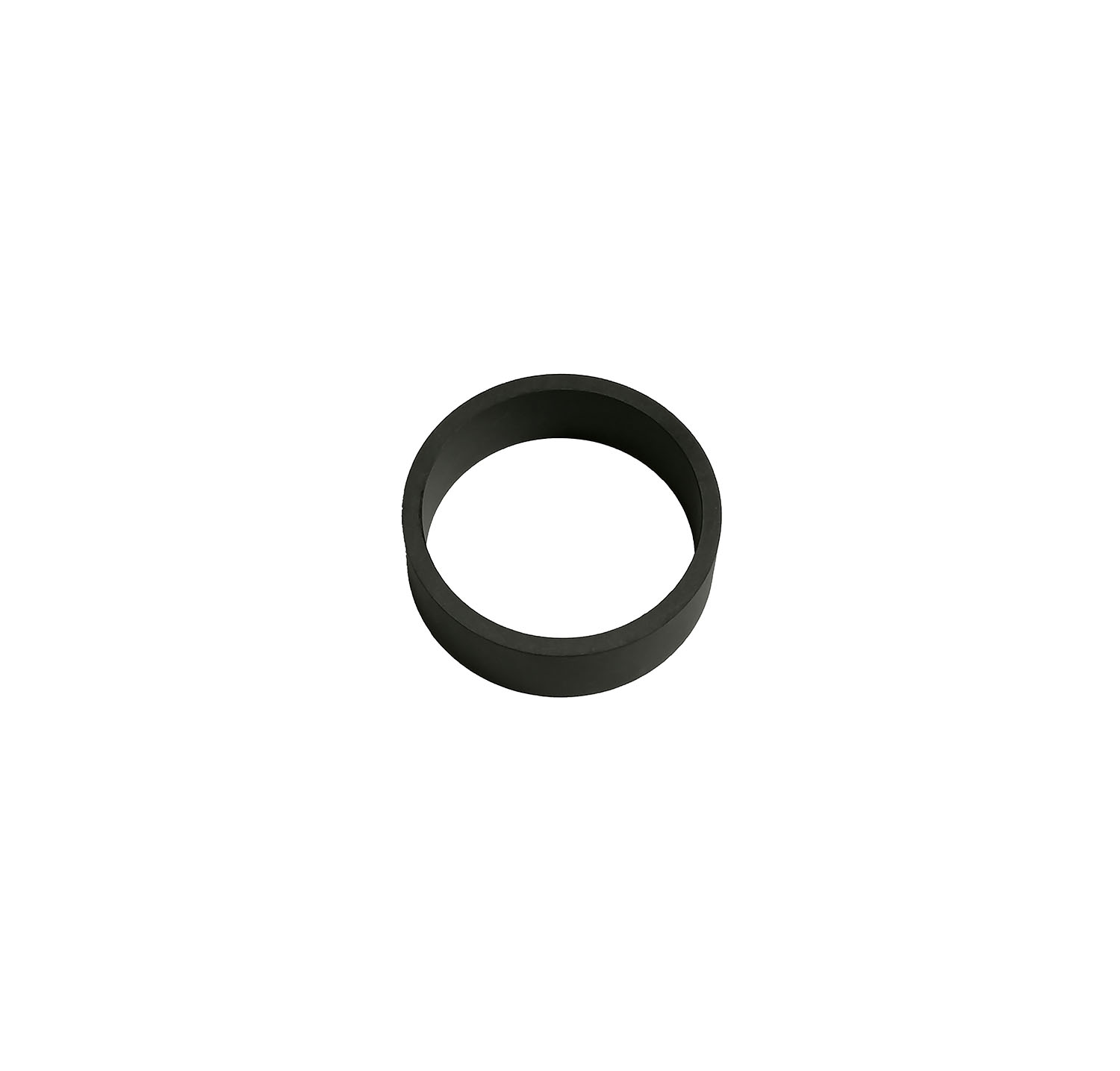

| 2 | 3831410 | RIDER RING DIAM. 75MM |

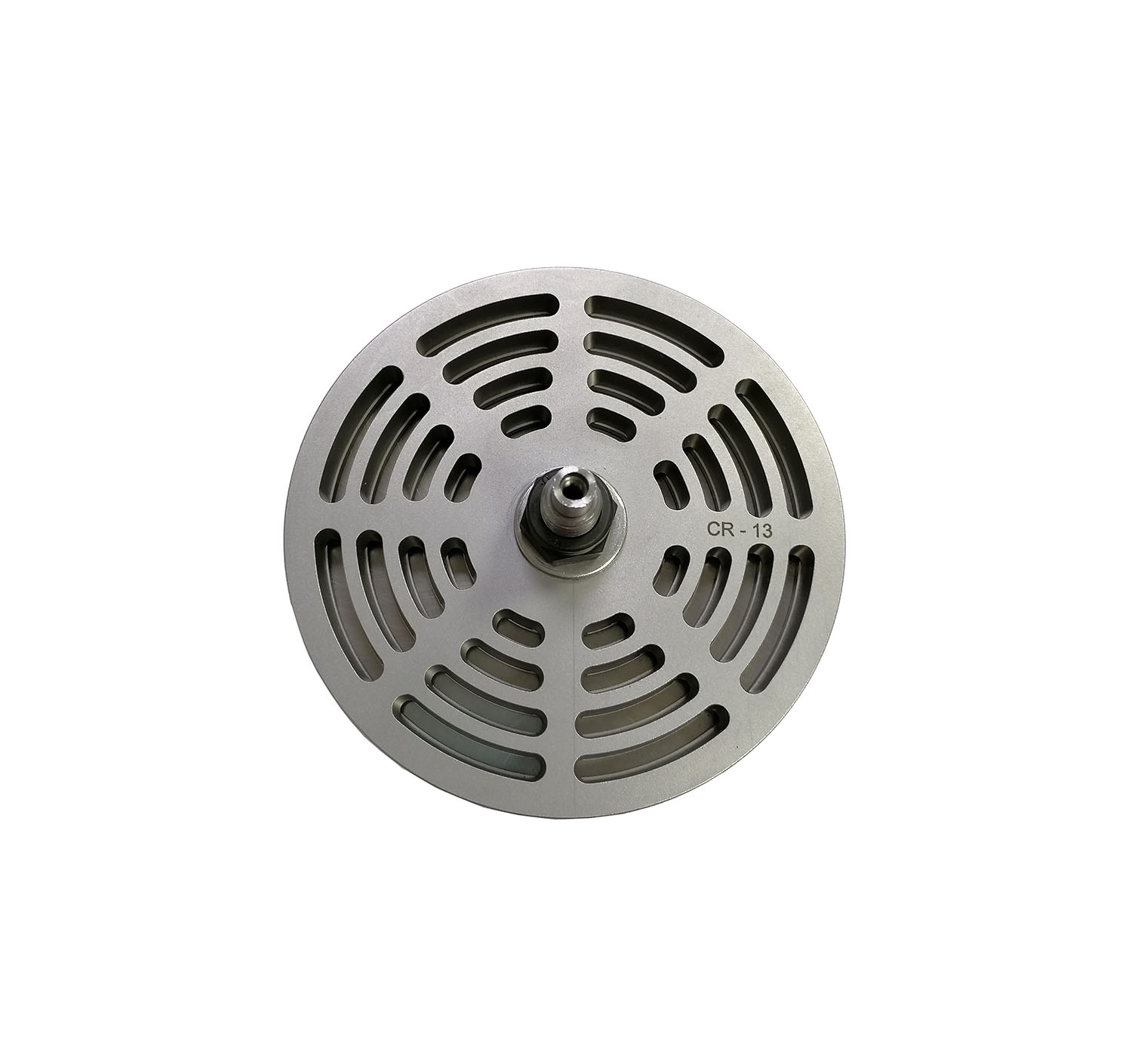

| 12 | 3944700 | VALVE 105CR-11 ADM. |
| 12 | 3945700 | VALVE 105CR-12 IMP. |
| 4 | 3944710 | VALVE 105CR-13 ADM. |

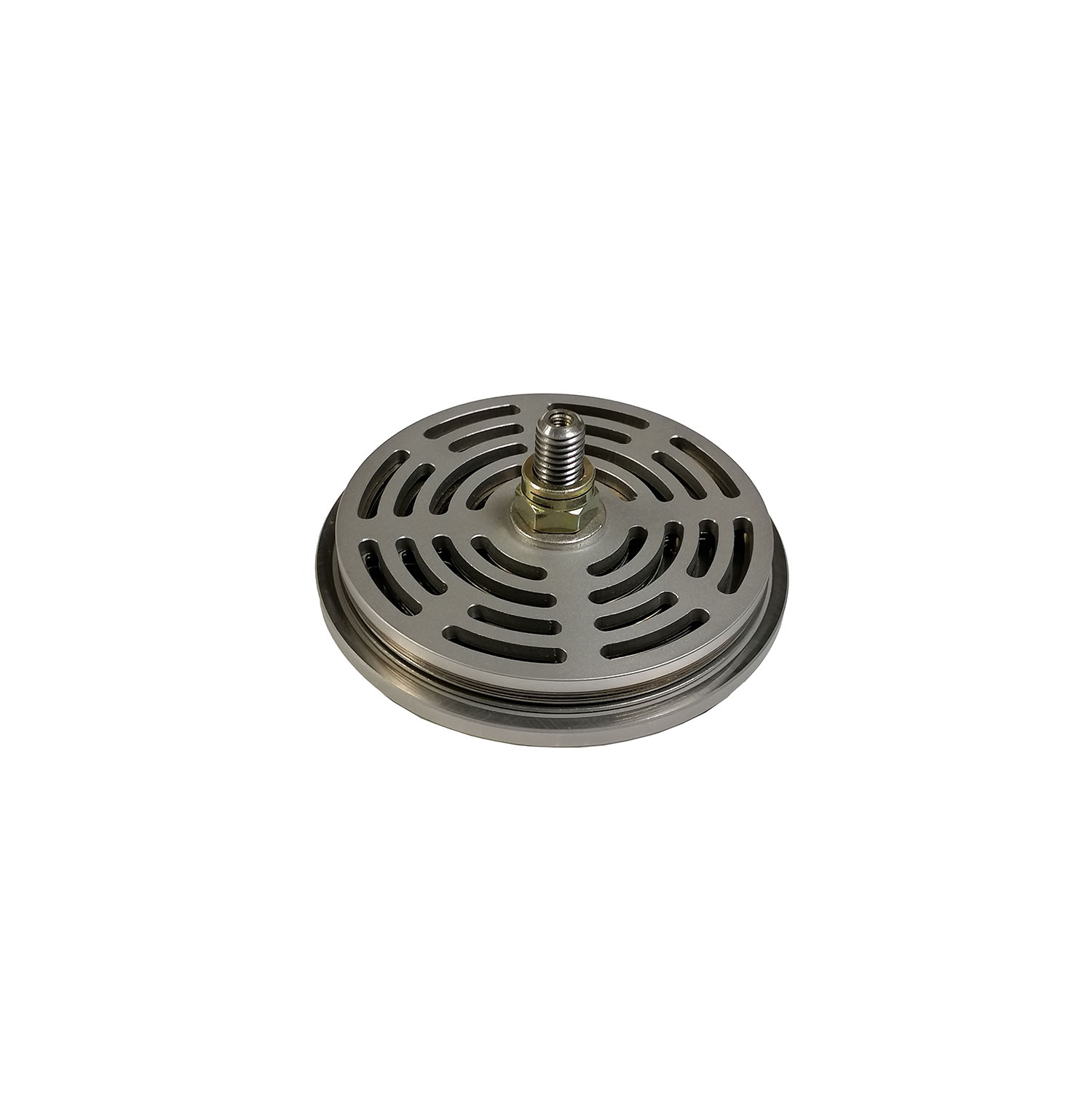

| 4 | 3945710 | VALVE 105CR-14 IMP. |

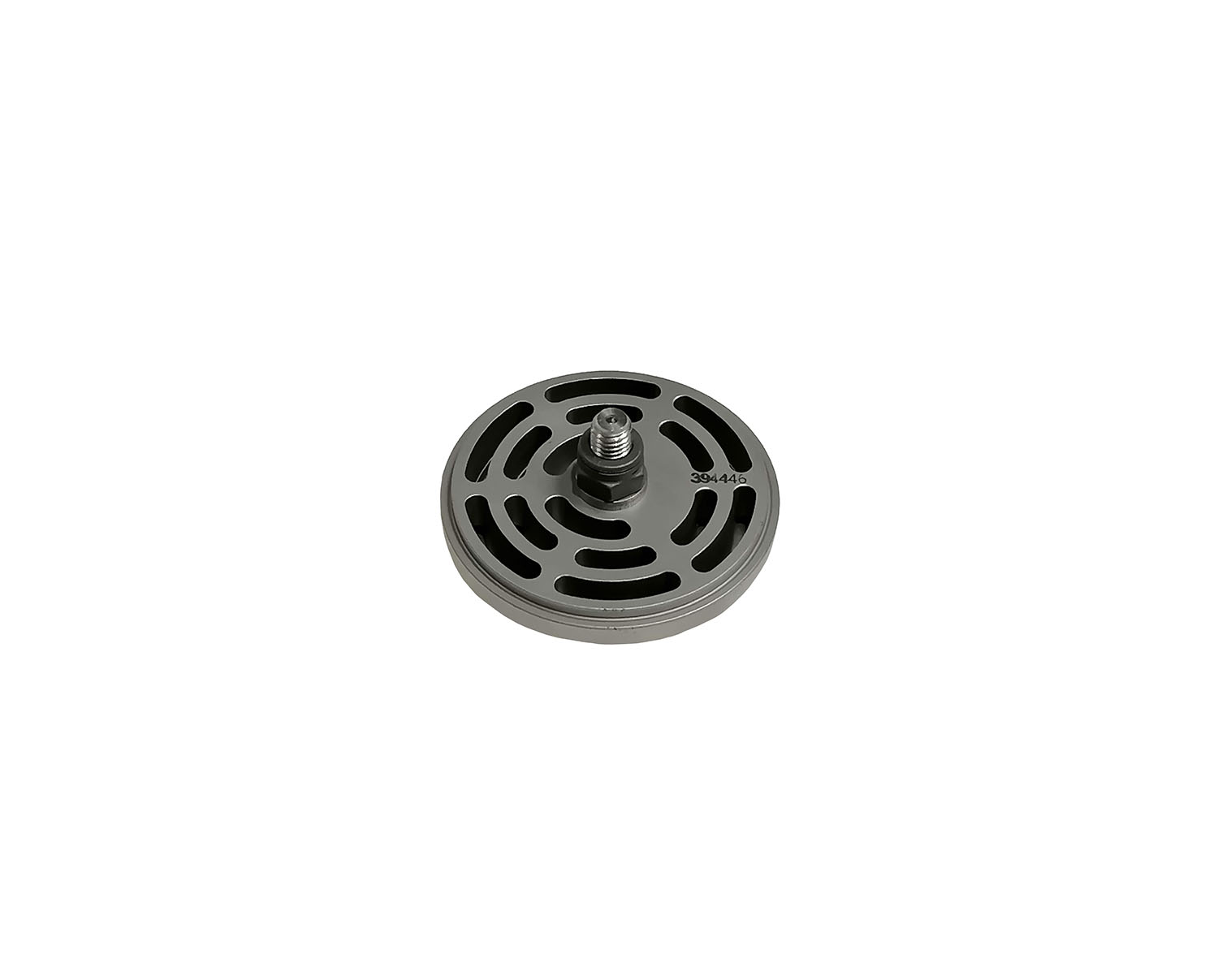

| 2 | 3944460 | VALVE 70RLX ADM. |

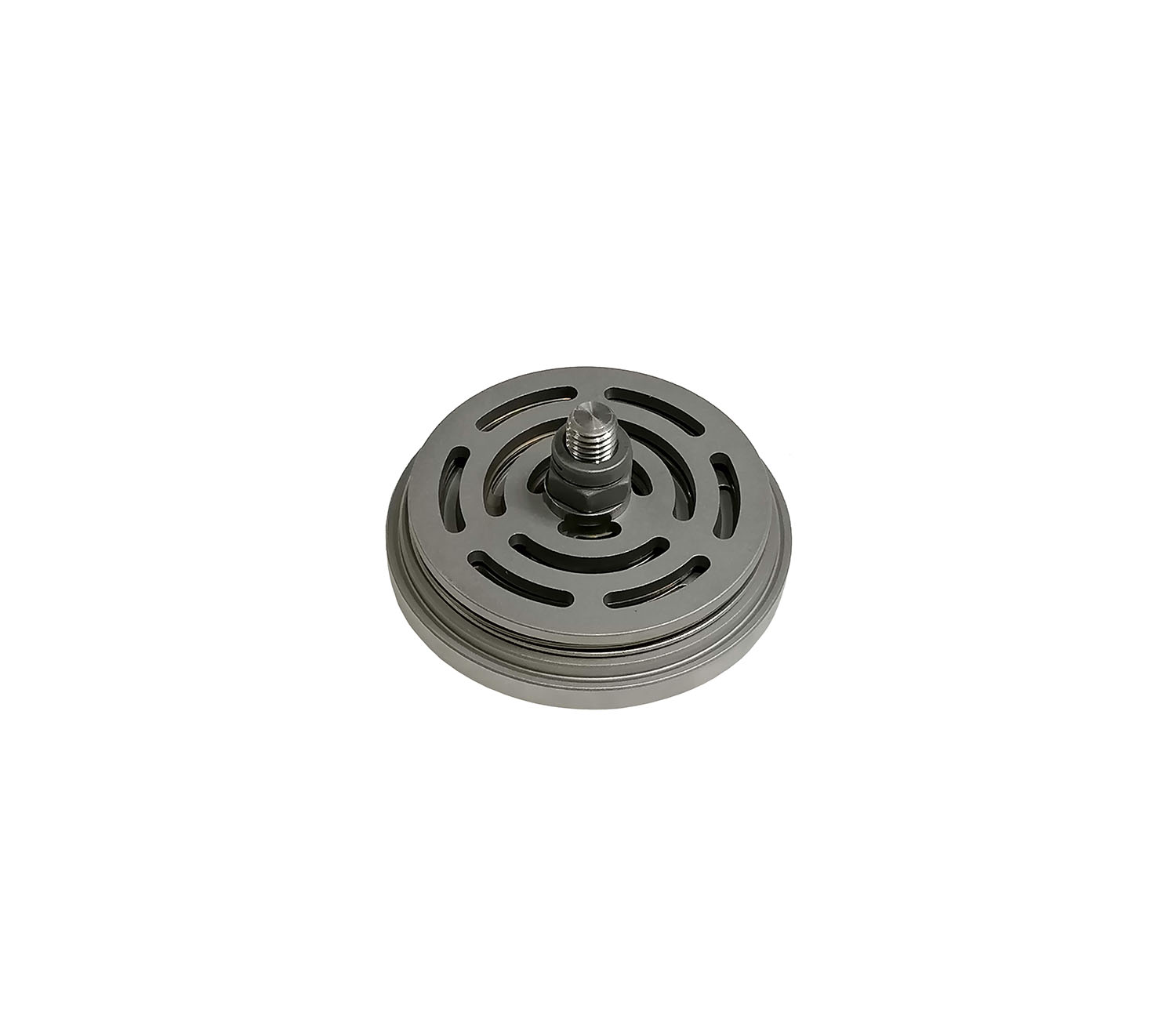

| 2 | 3945510 | VALVE 70RLX IMP. |

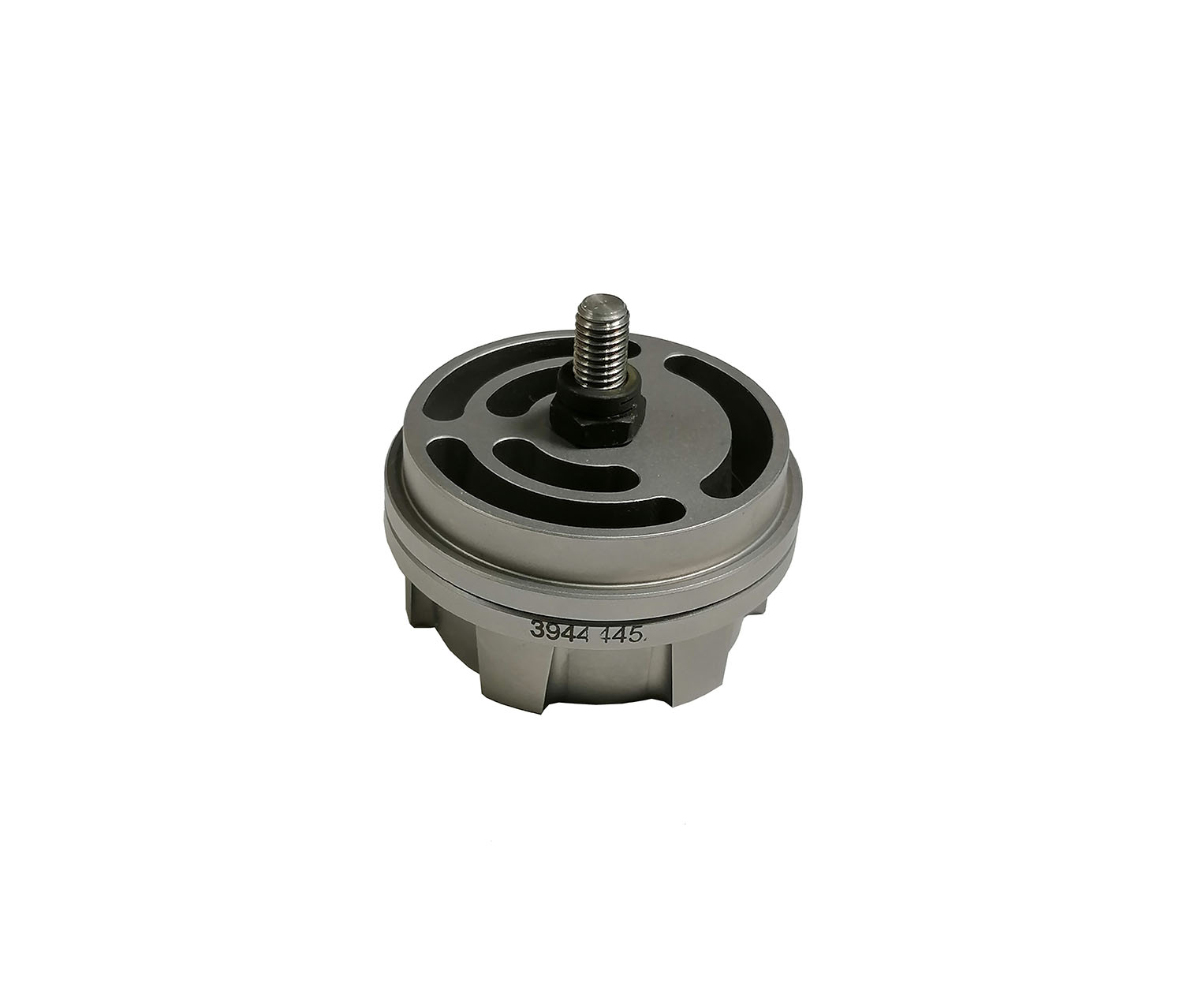

| 2 | 3944440 | VALVE 52ED ADM. |

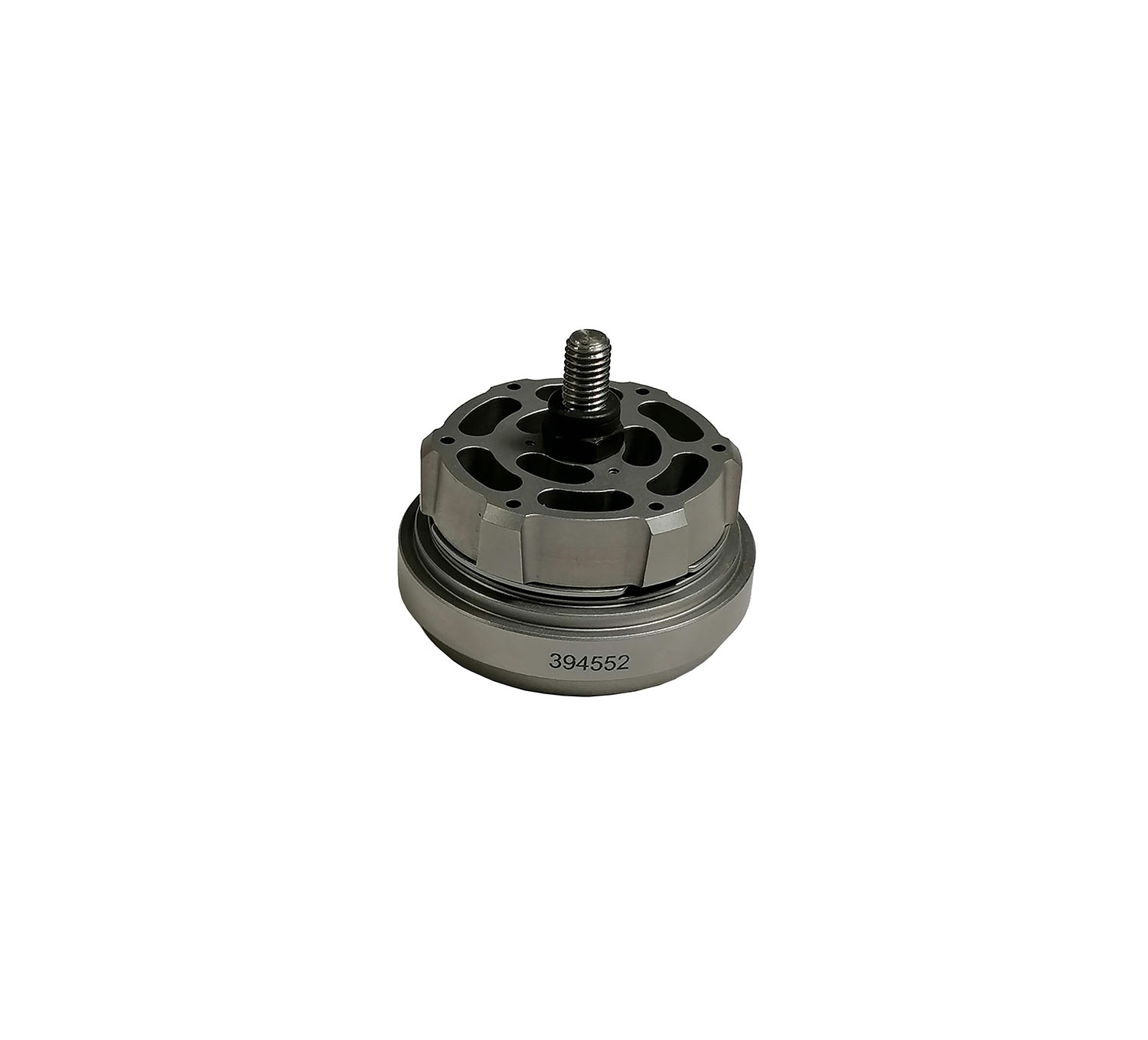

| 2 | 3945520 | VALVE 52ED IMP. |

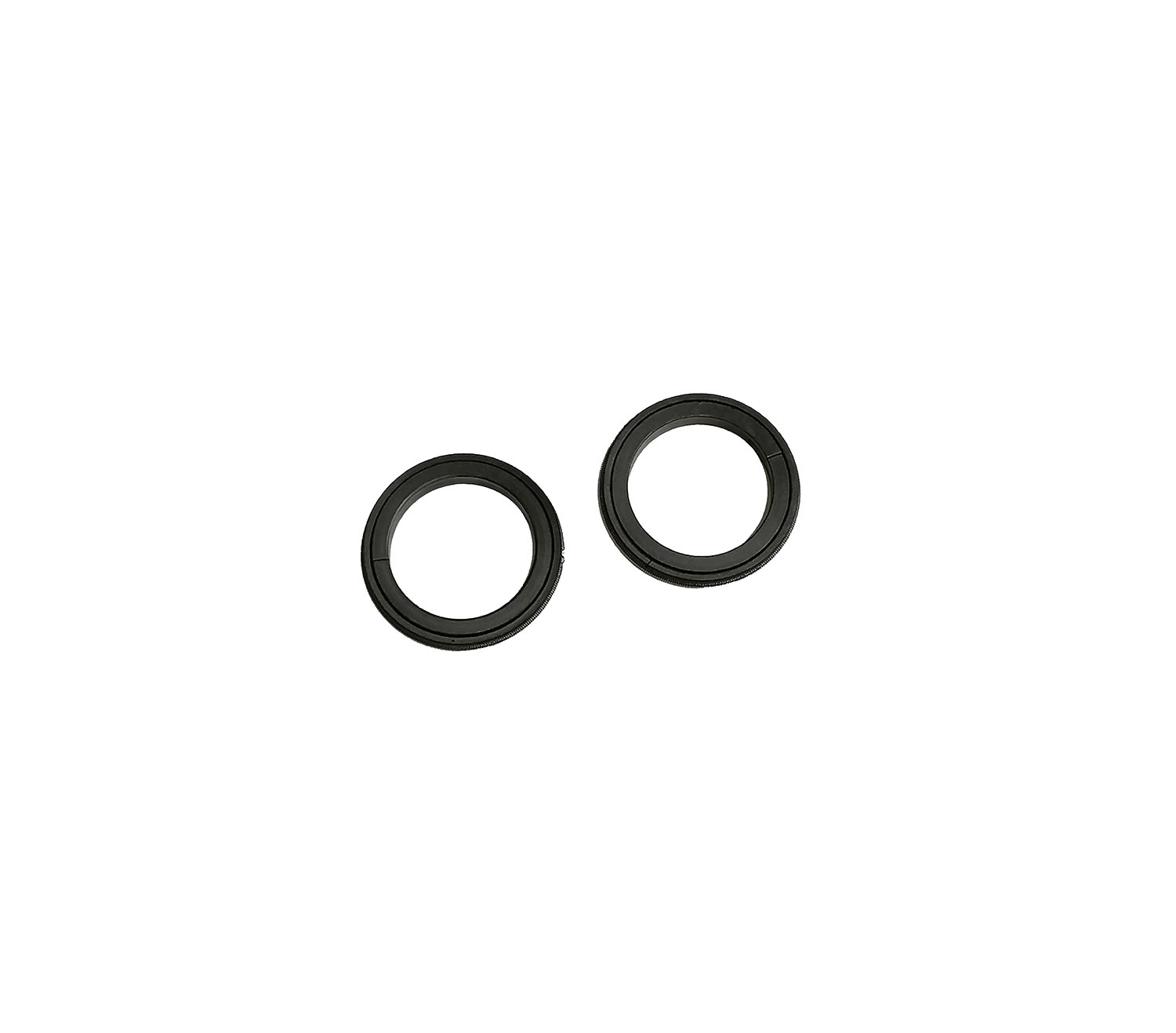

| 55 | 3037760 | RING |

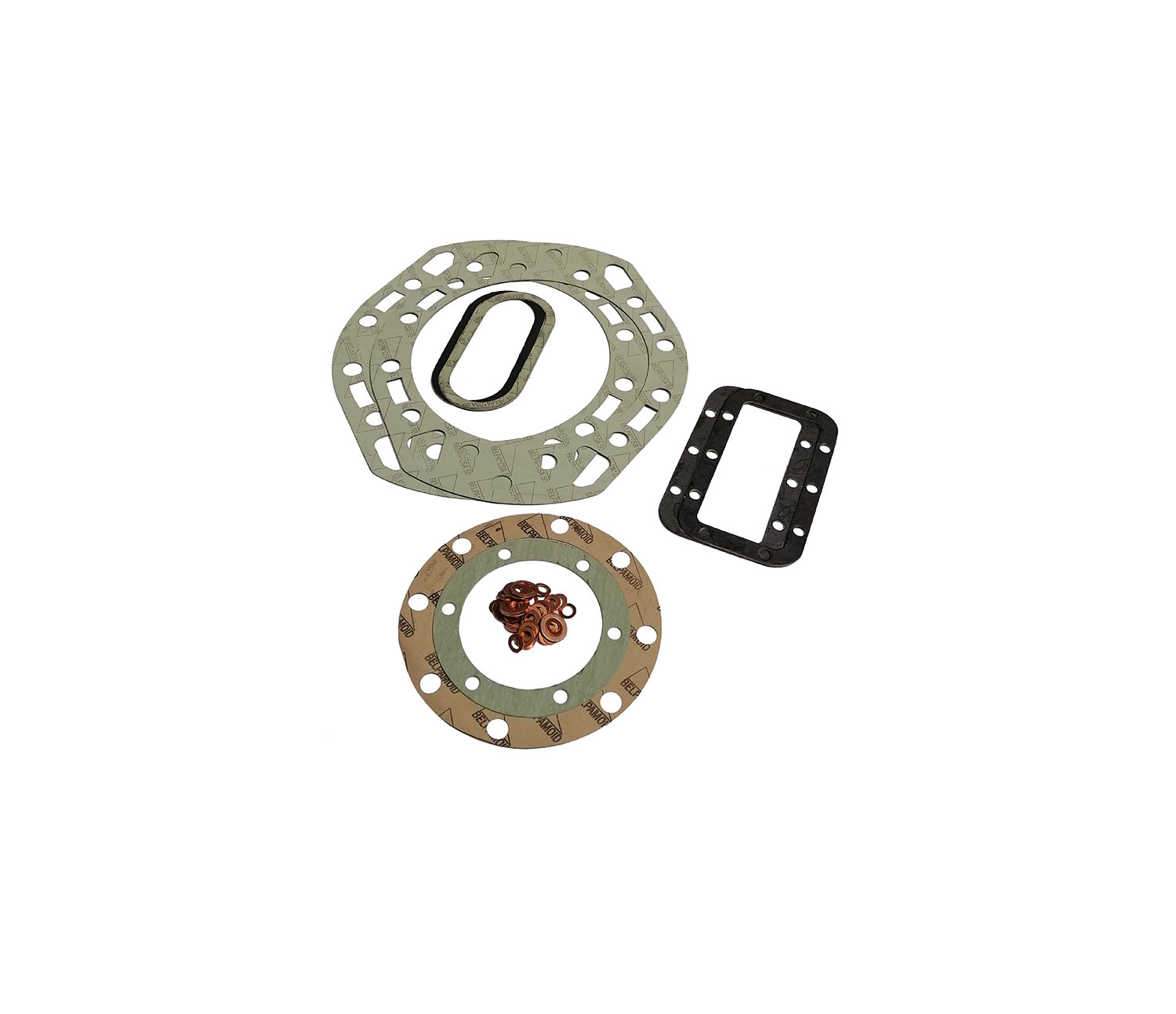

| 2 | 3539490 | JOINT |

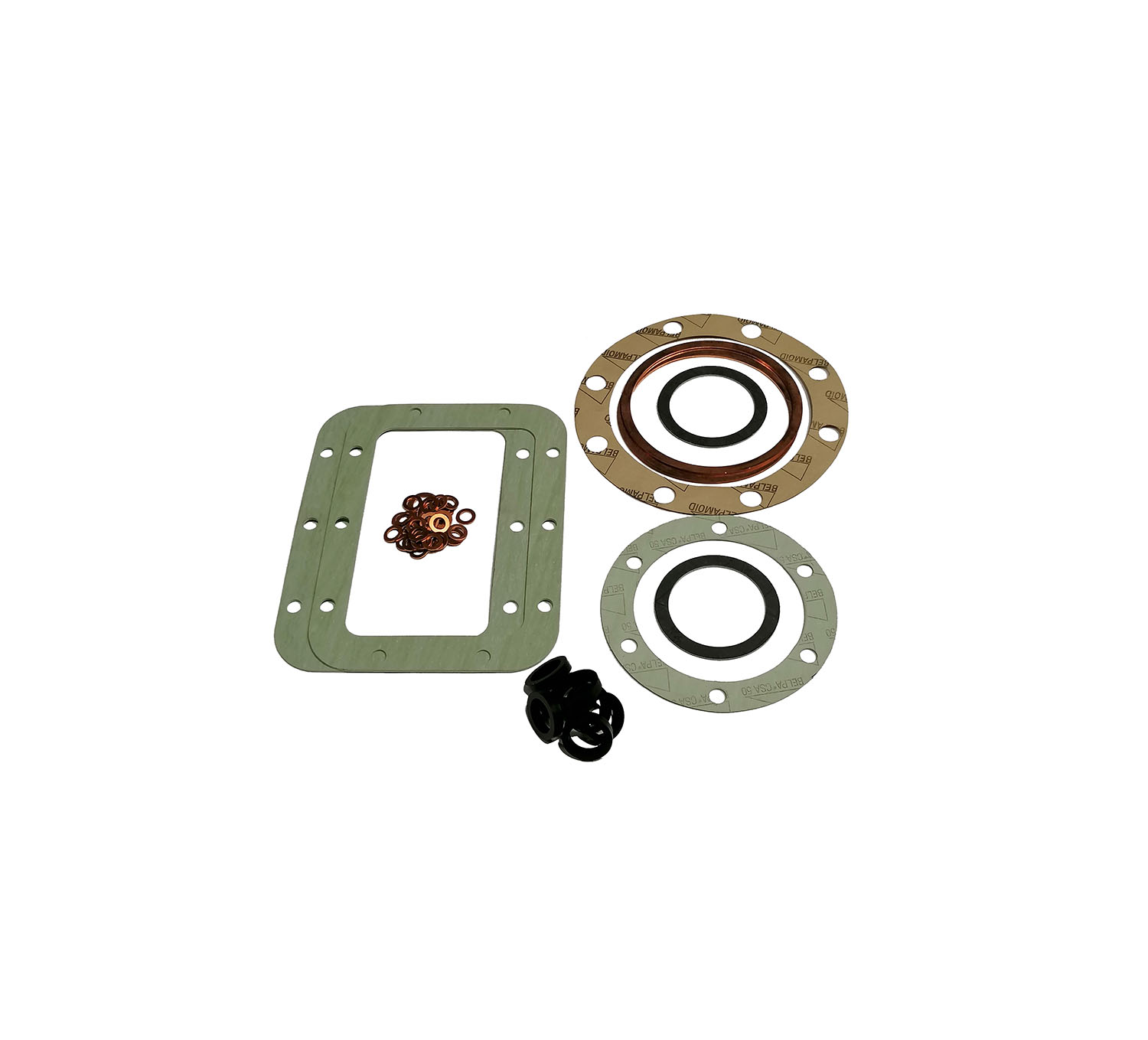

| 2 | 3539450 | JOINT |

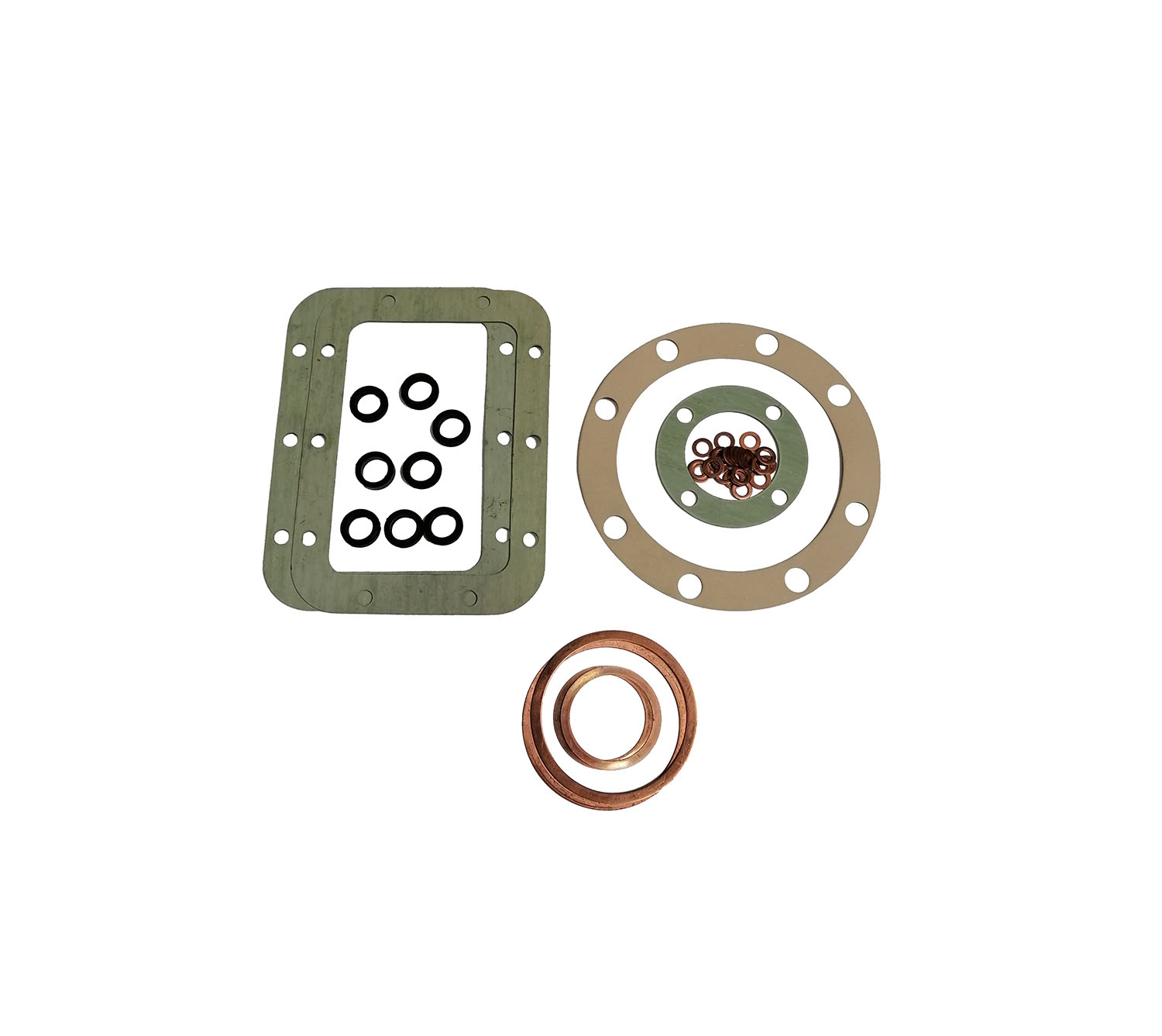

| 1 | 3539420 | JOINT |

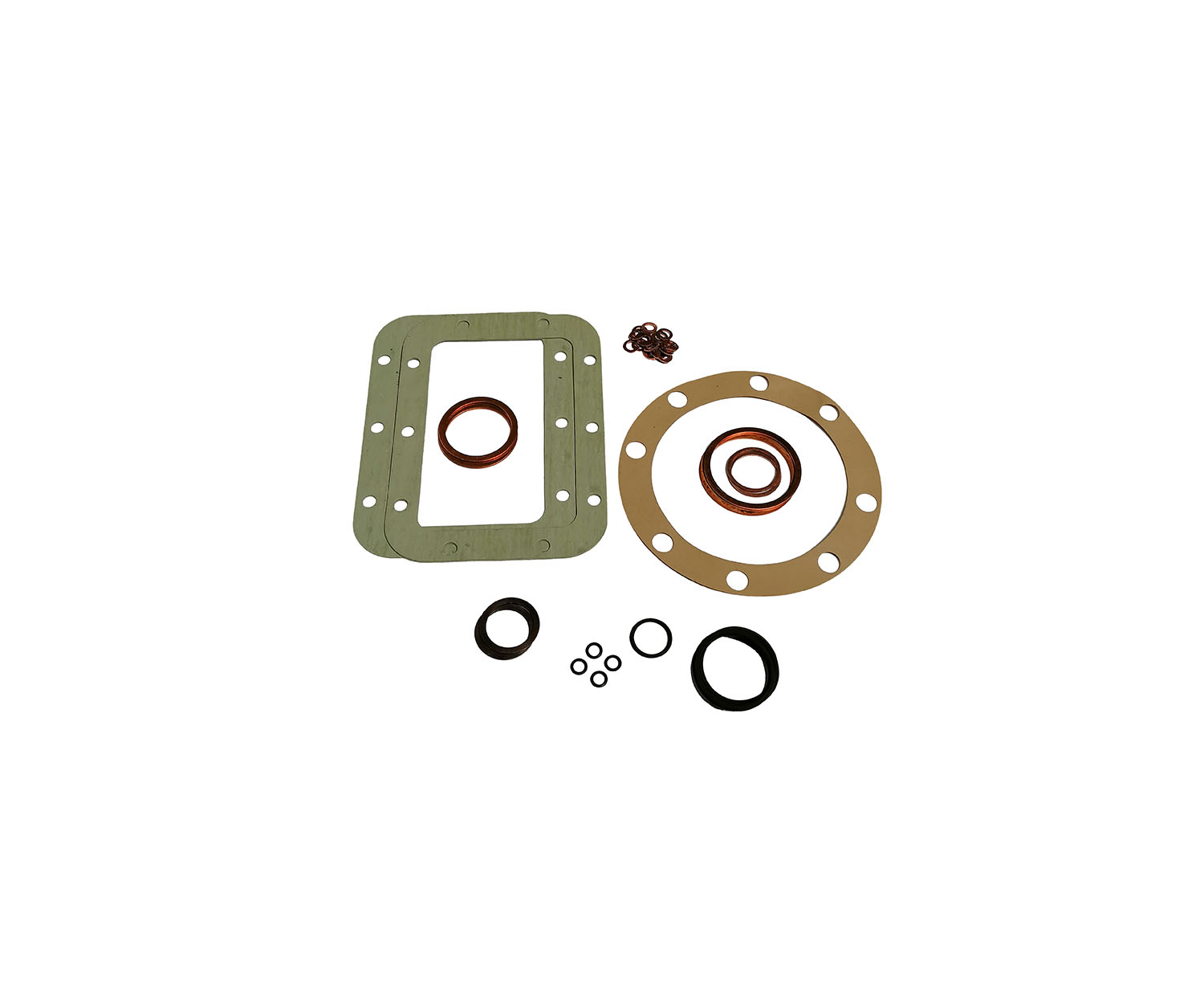

| 1 | 3539410 | JOINT |

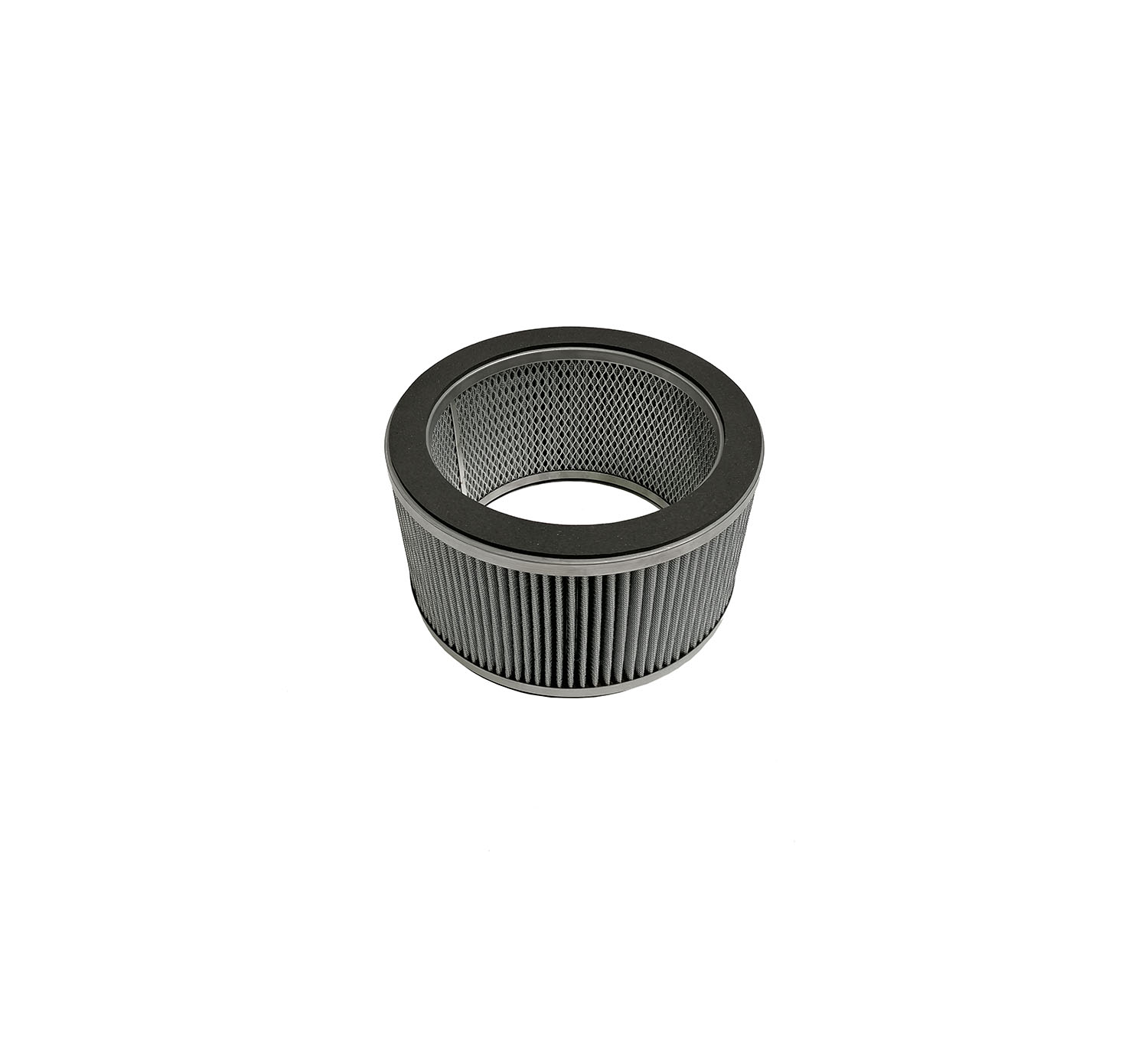

| 2 | 3312130 | CARTRIDGE FILTER |

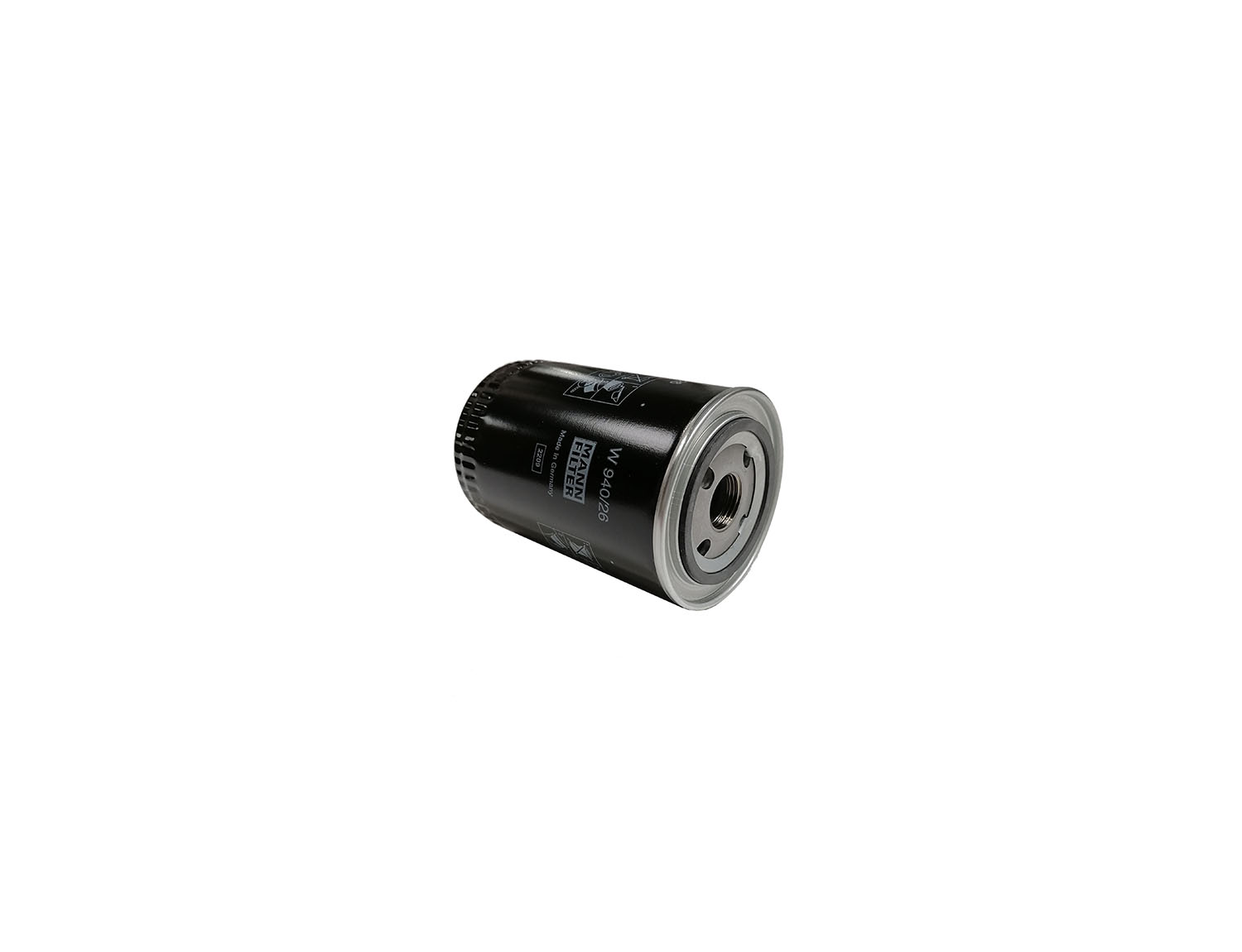

| 1 | 4372580 | CARTRIDGE FILTER |

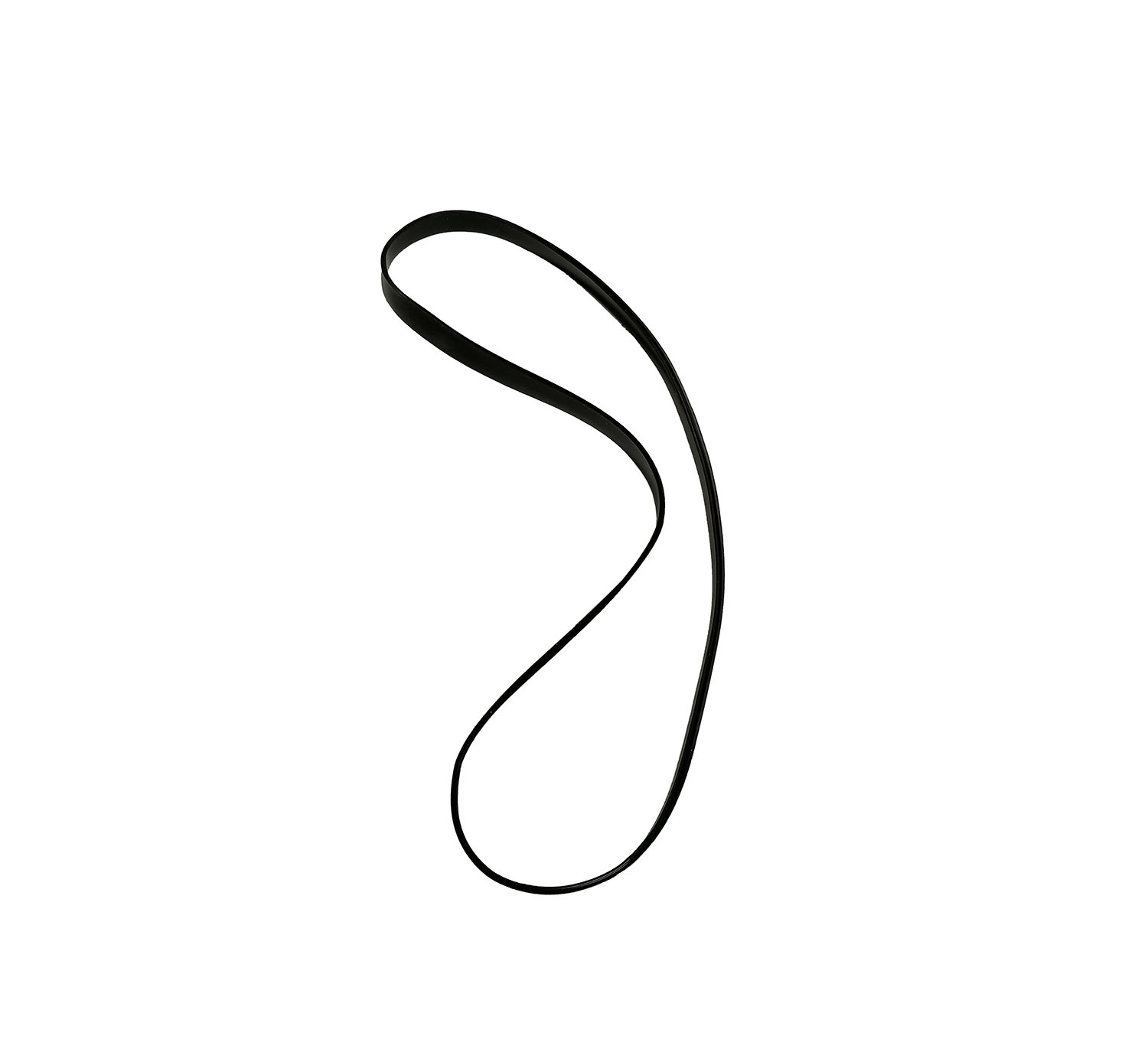

| 2 | 3574850 | JOINT |

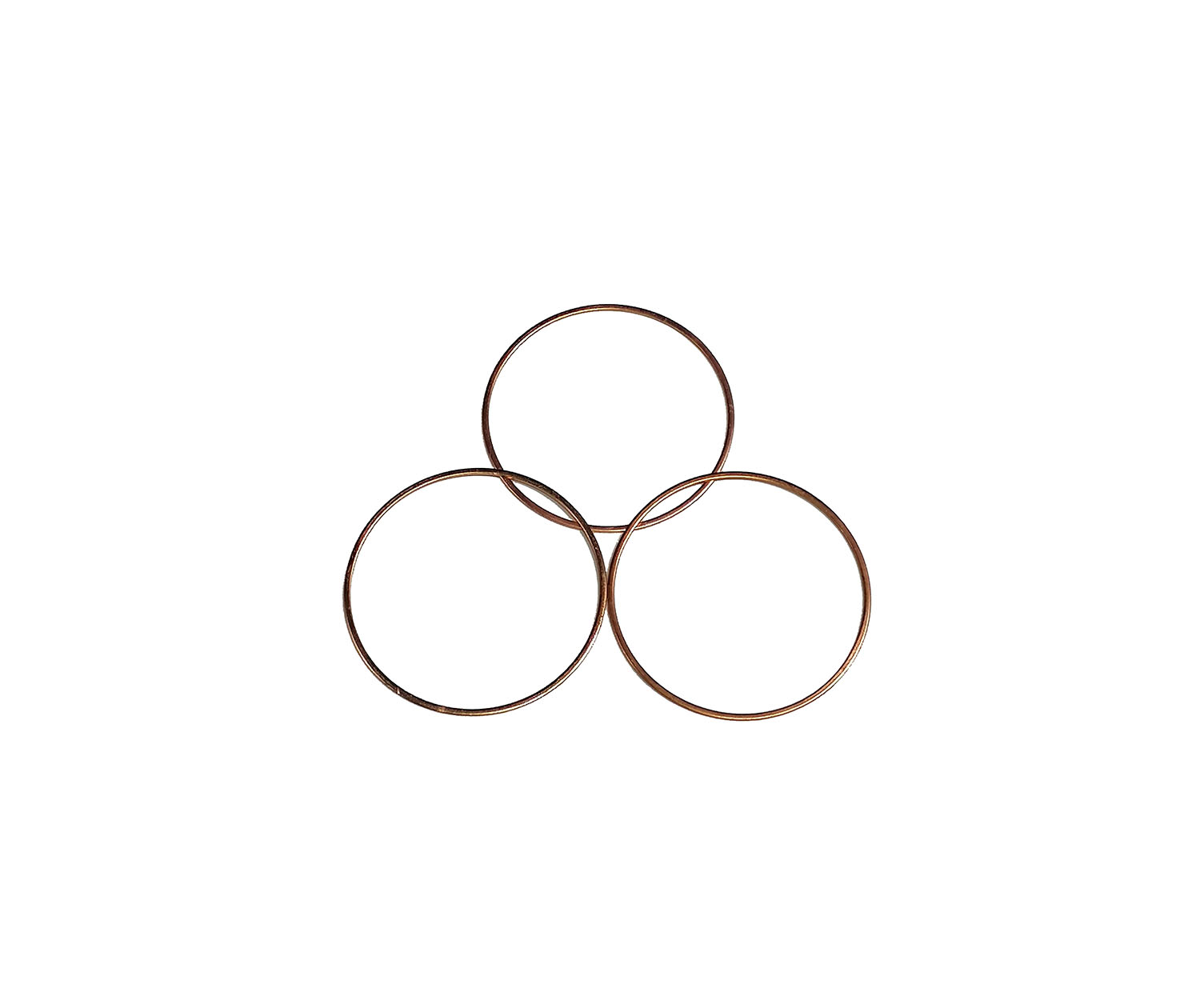

| 32 | 3573670 | JOINT |

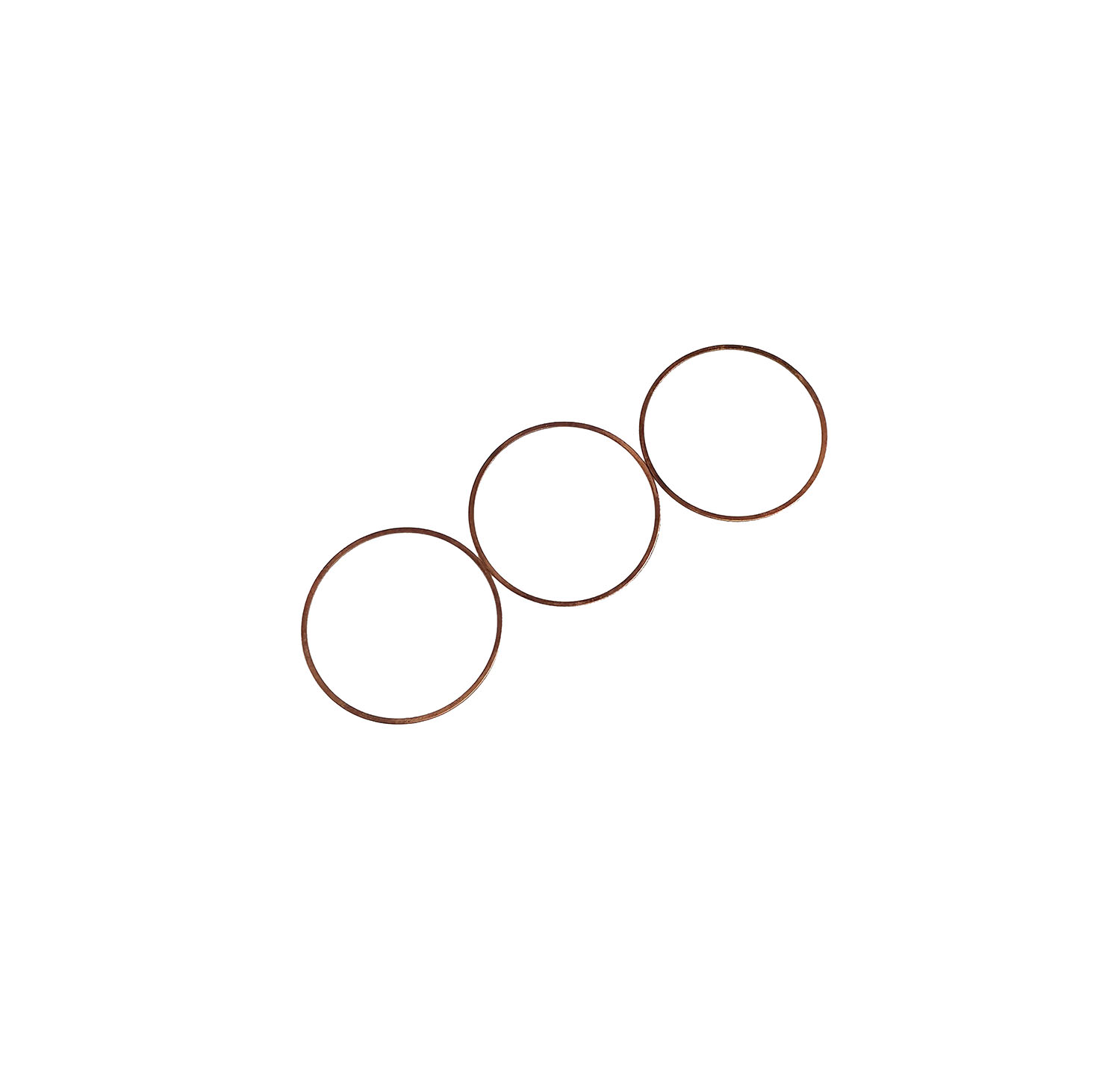

| 32 | 3573690 | RING |
| 6 | 3037560 | RING |

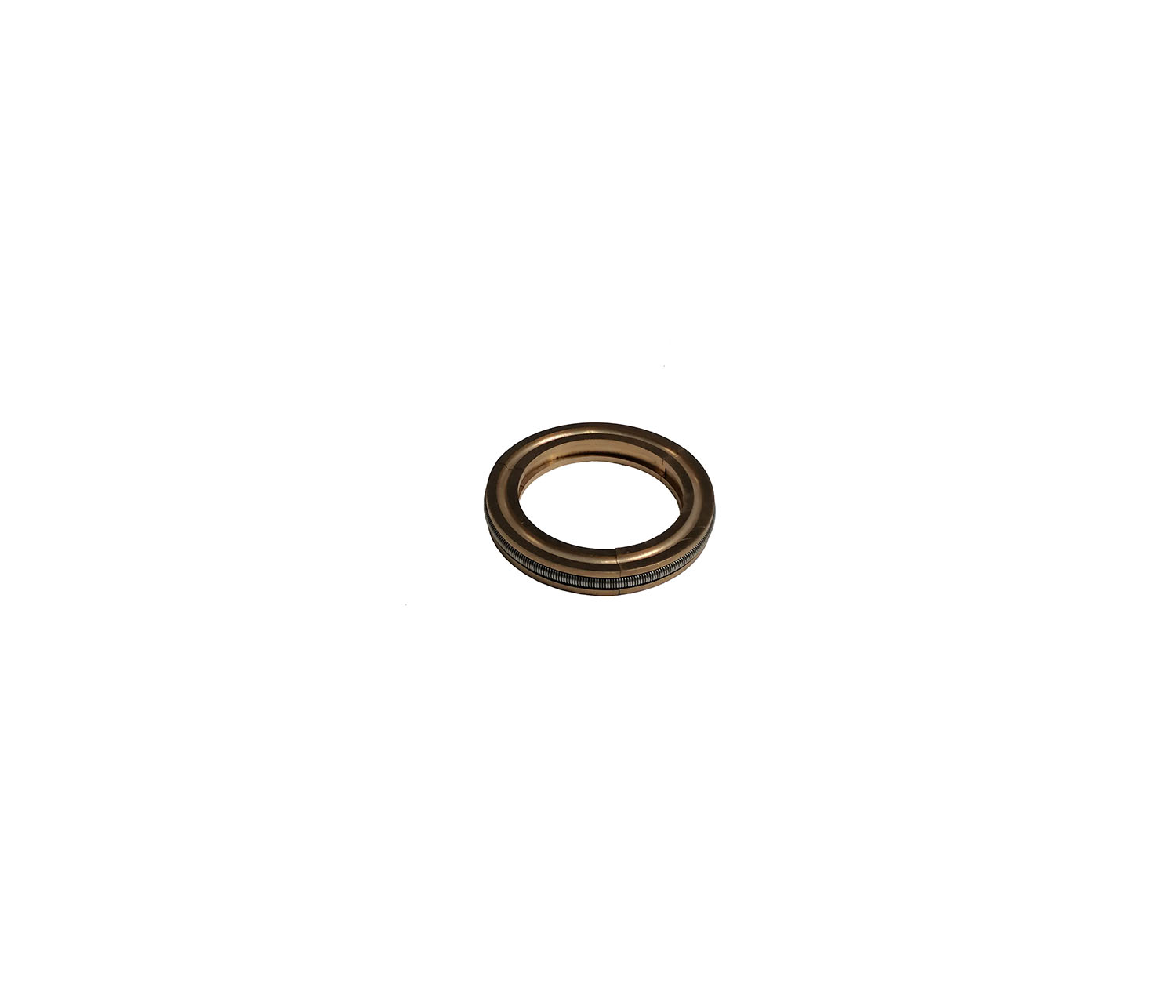

| 2 | 3037570 | RING |

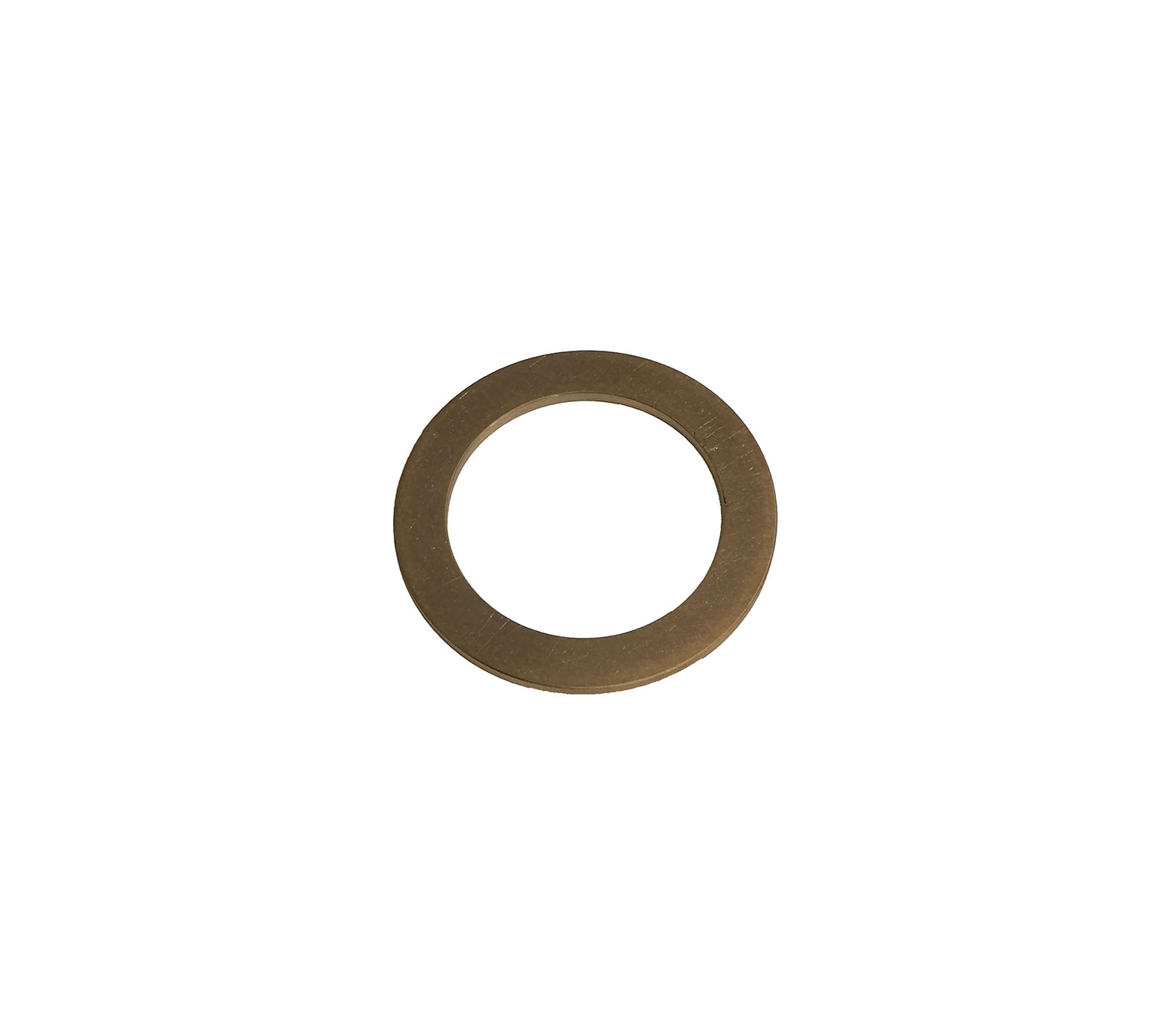

| 7 | 3037500 | RING |

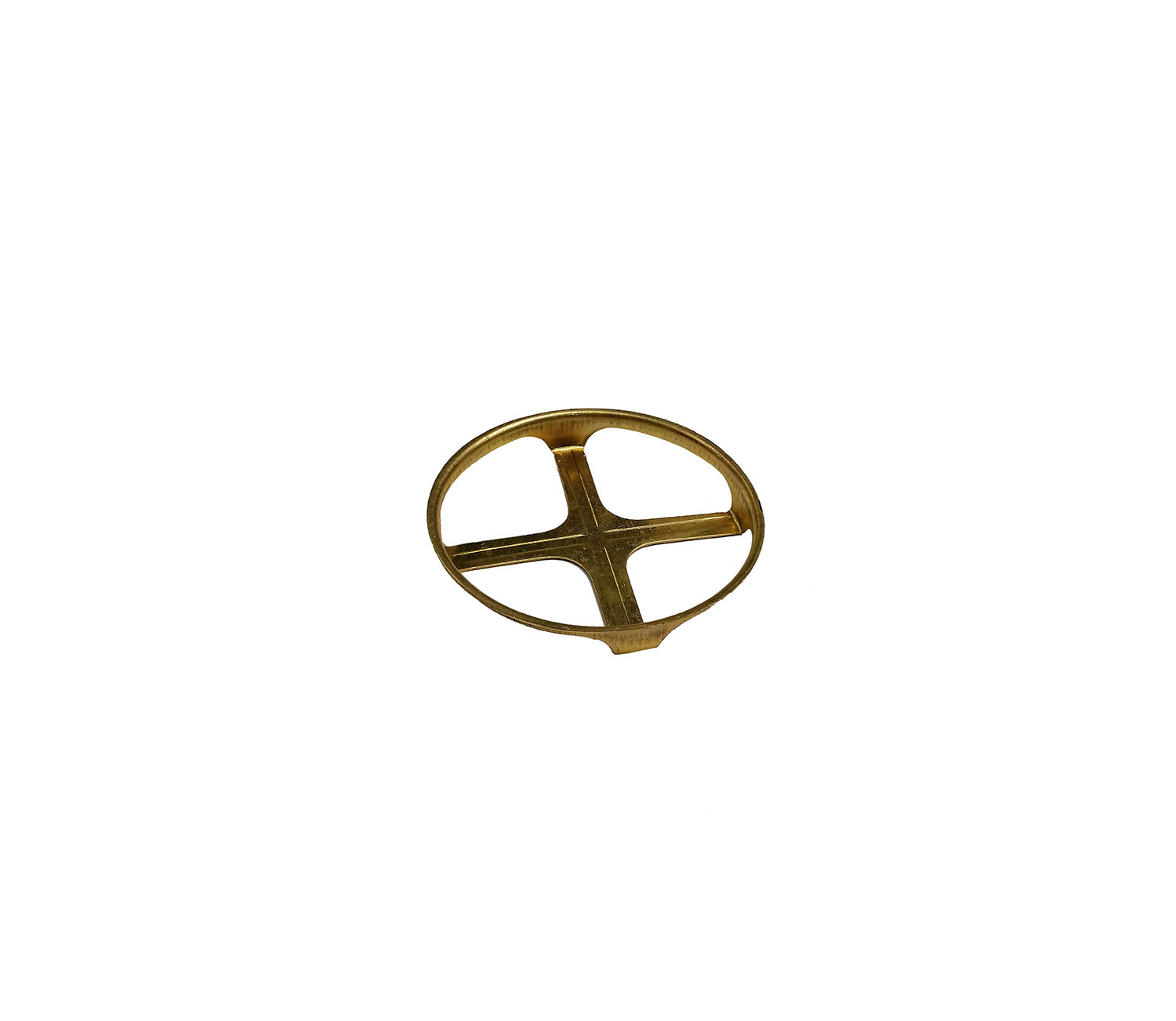

| 4 | 3798050 | PROTECTION GRILL |

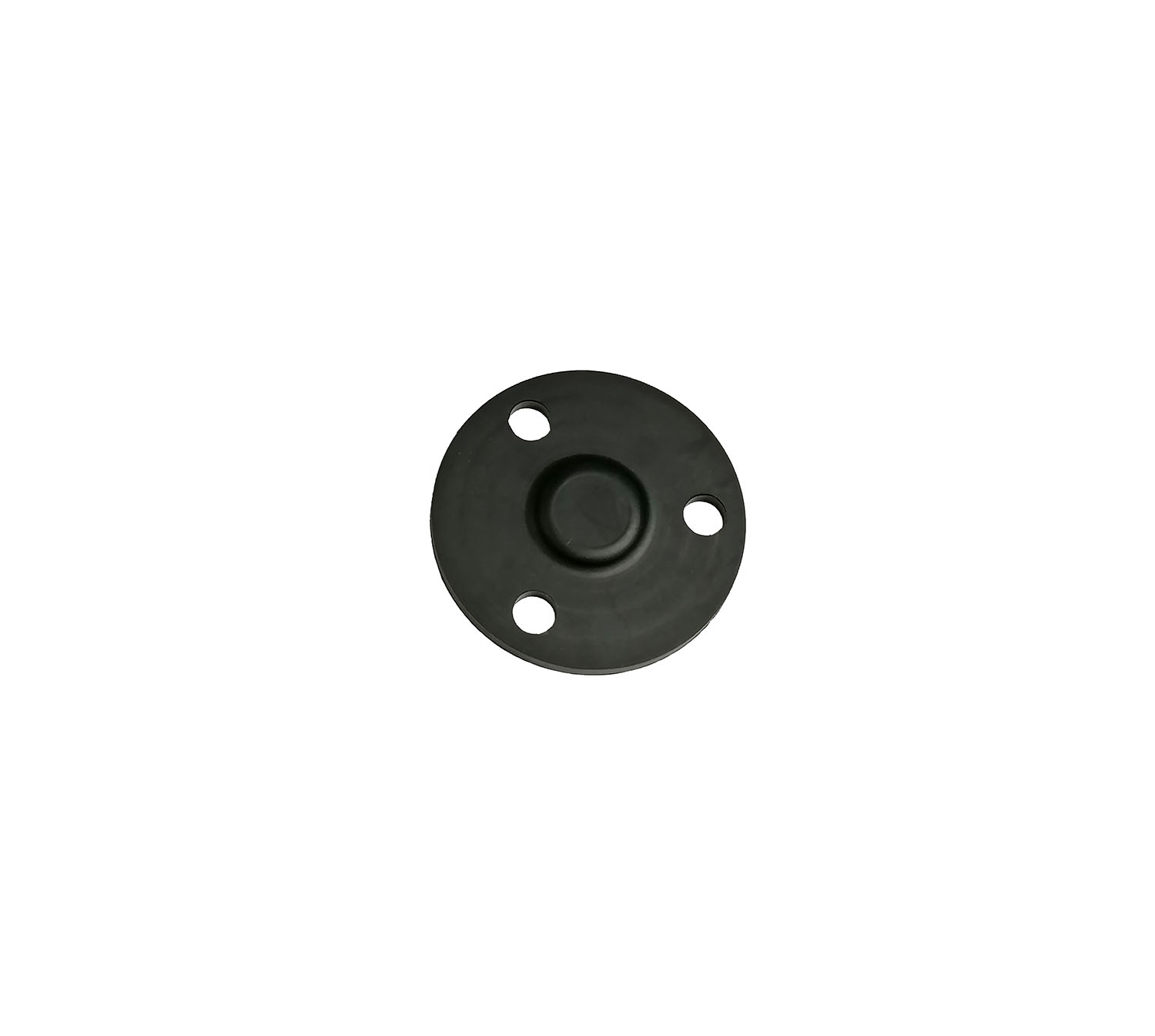

| 12 | 3637060 | MEMBRANE |

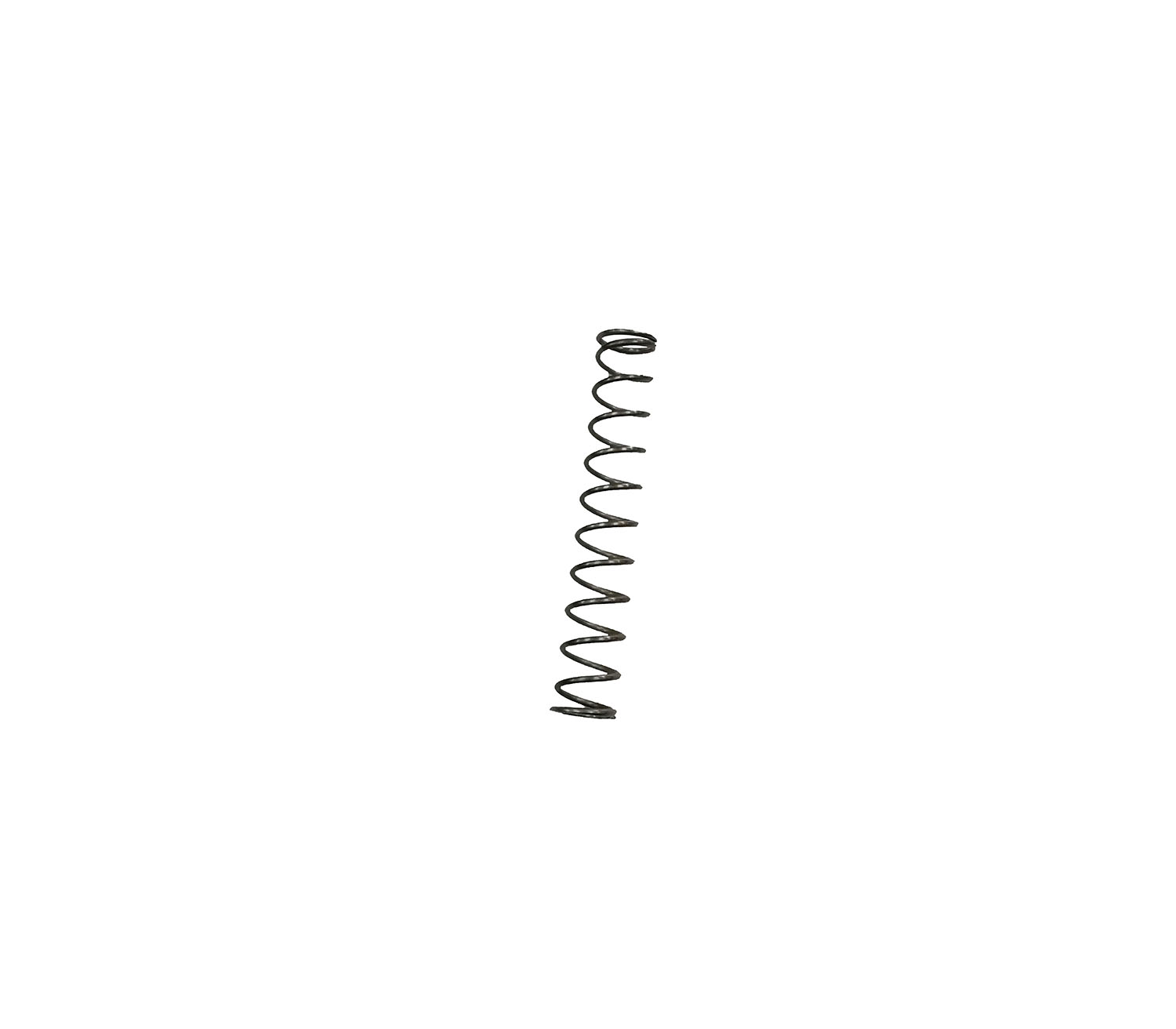

| 16 | 3649030 | SPRING |

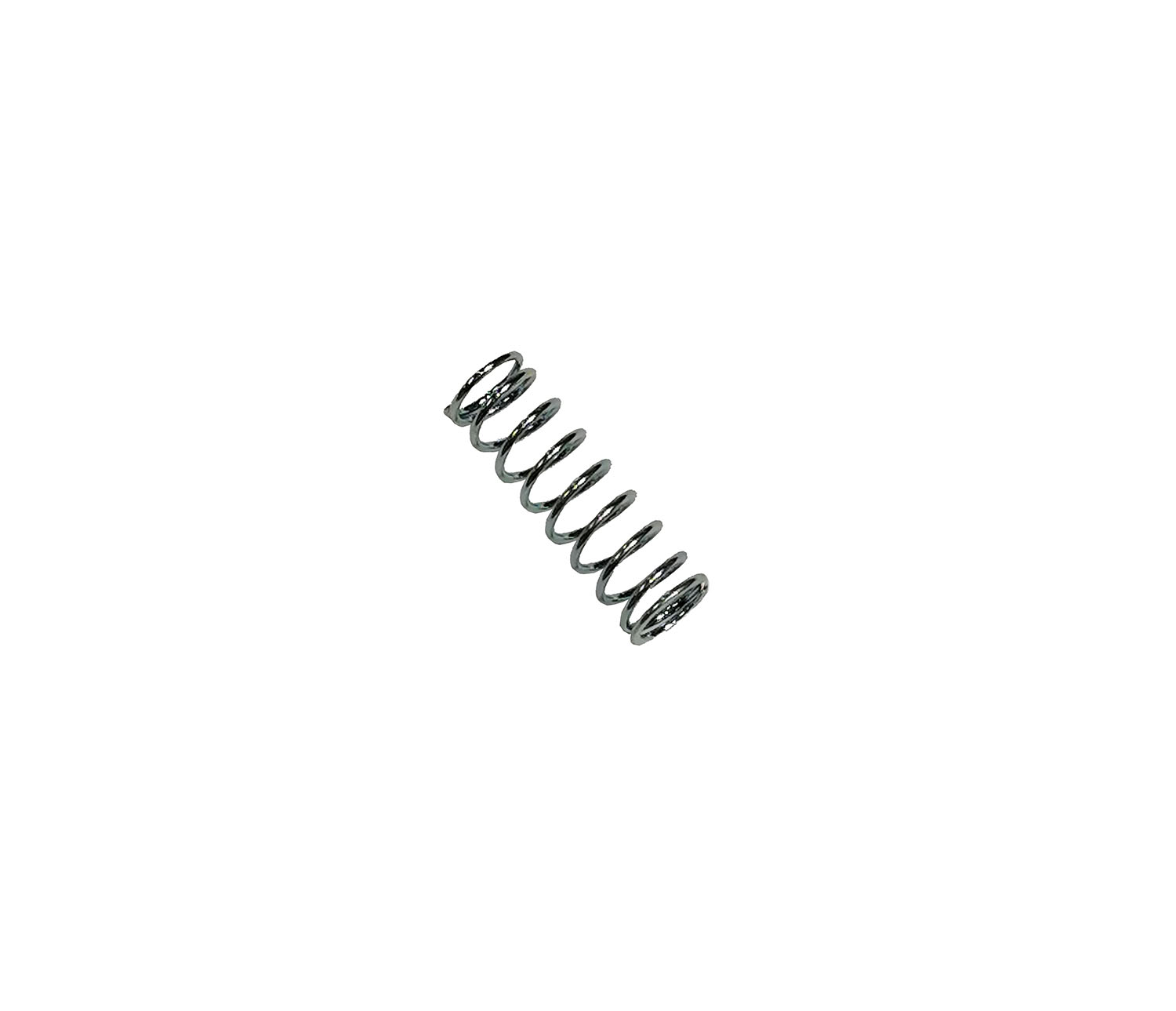

| 4 | 3648210 | SPRING |

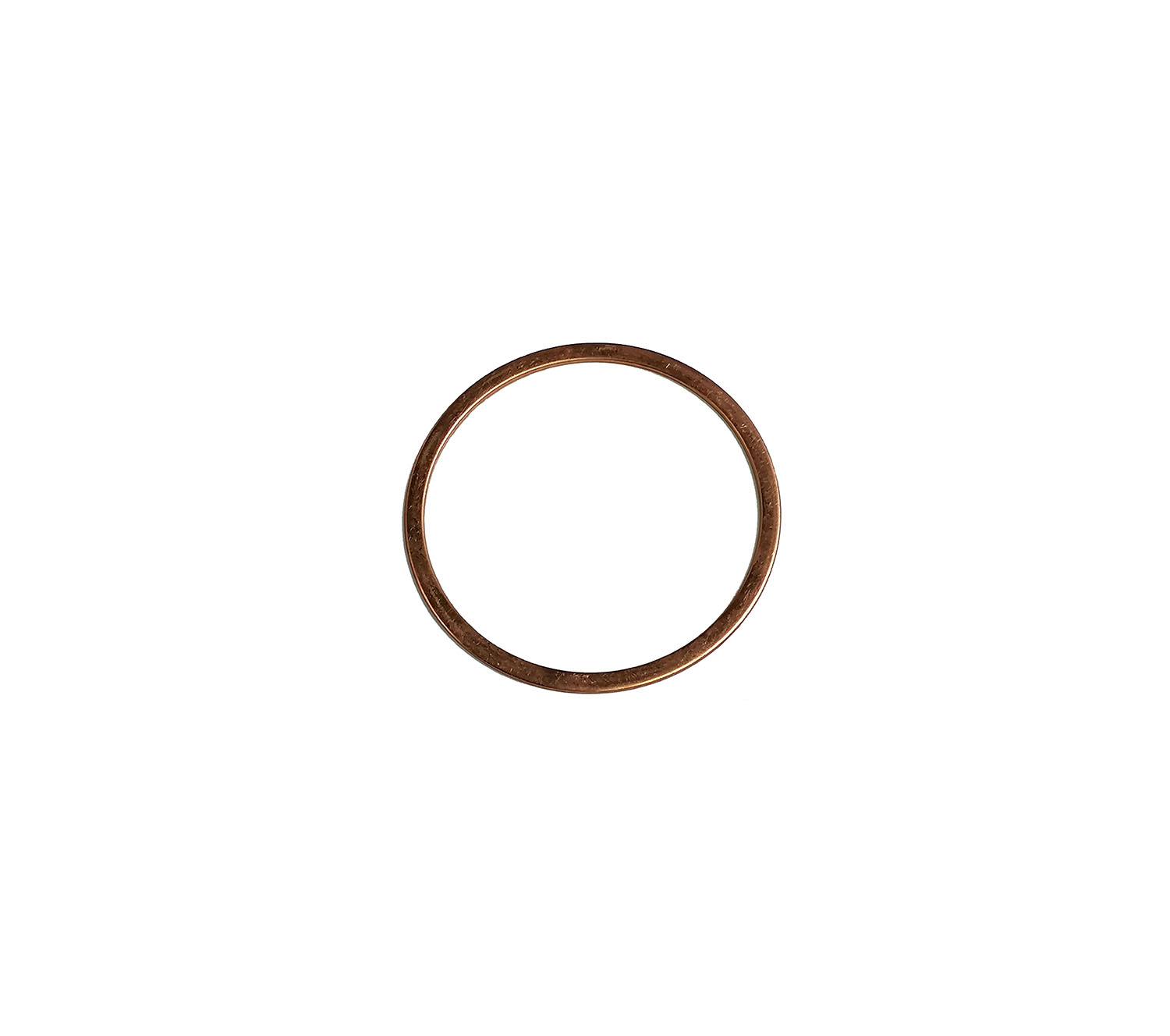

| 4 | 3573800 | RING |
| 2 | 4021210 | O-RING |

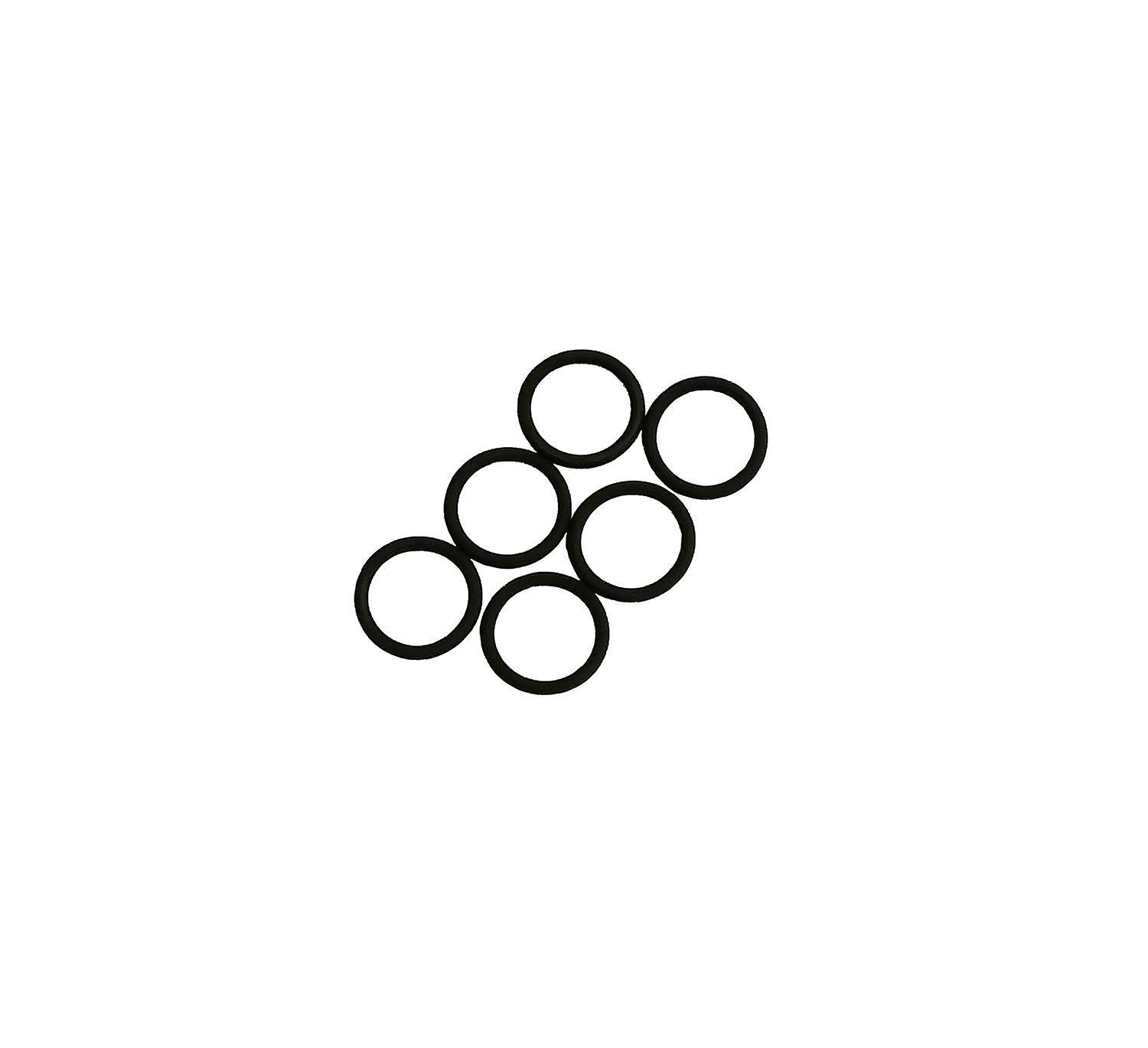

| 4 | 4021180 | O-RING |

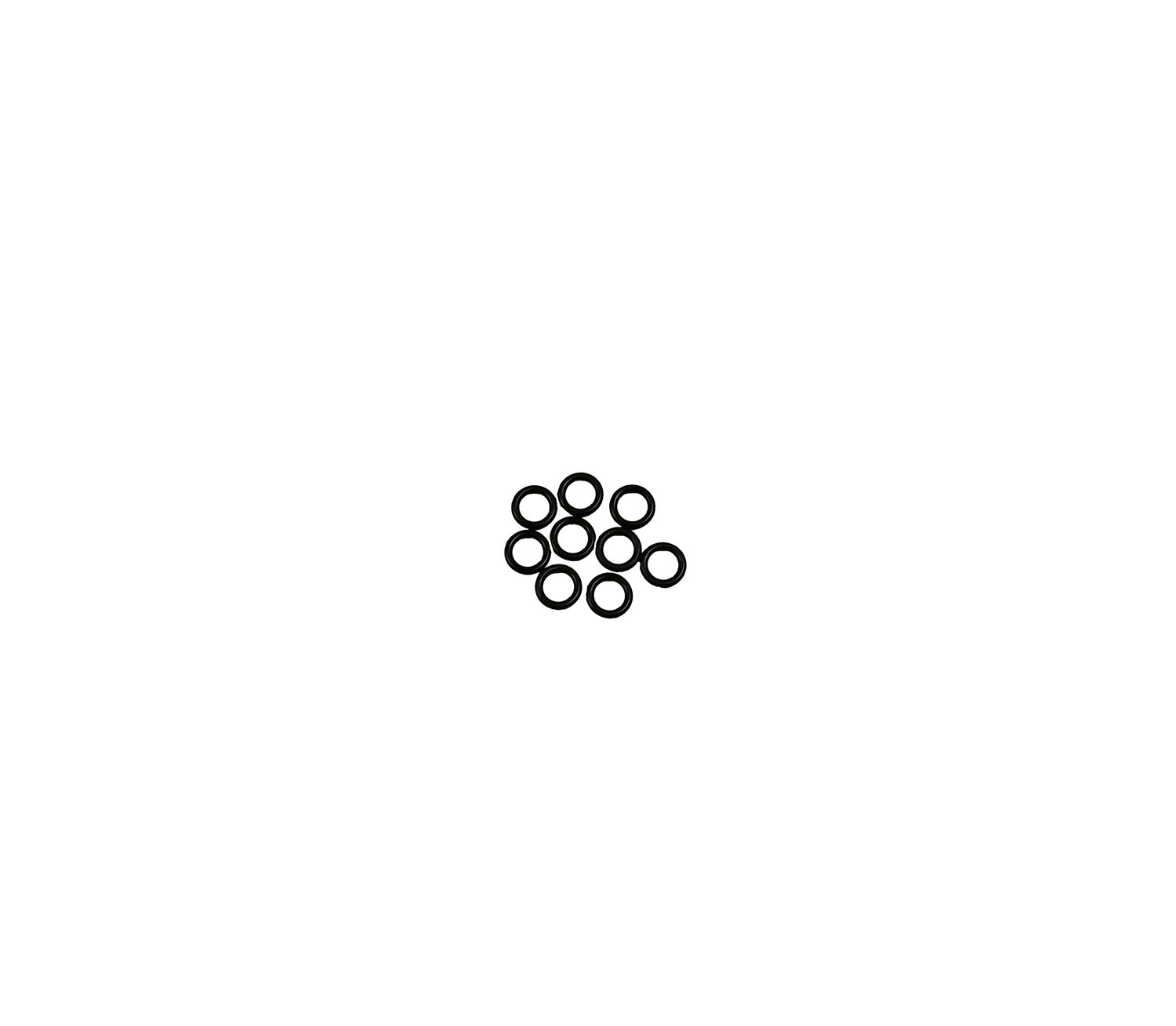

| 8 | 4021080 | O-RING |

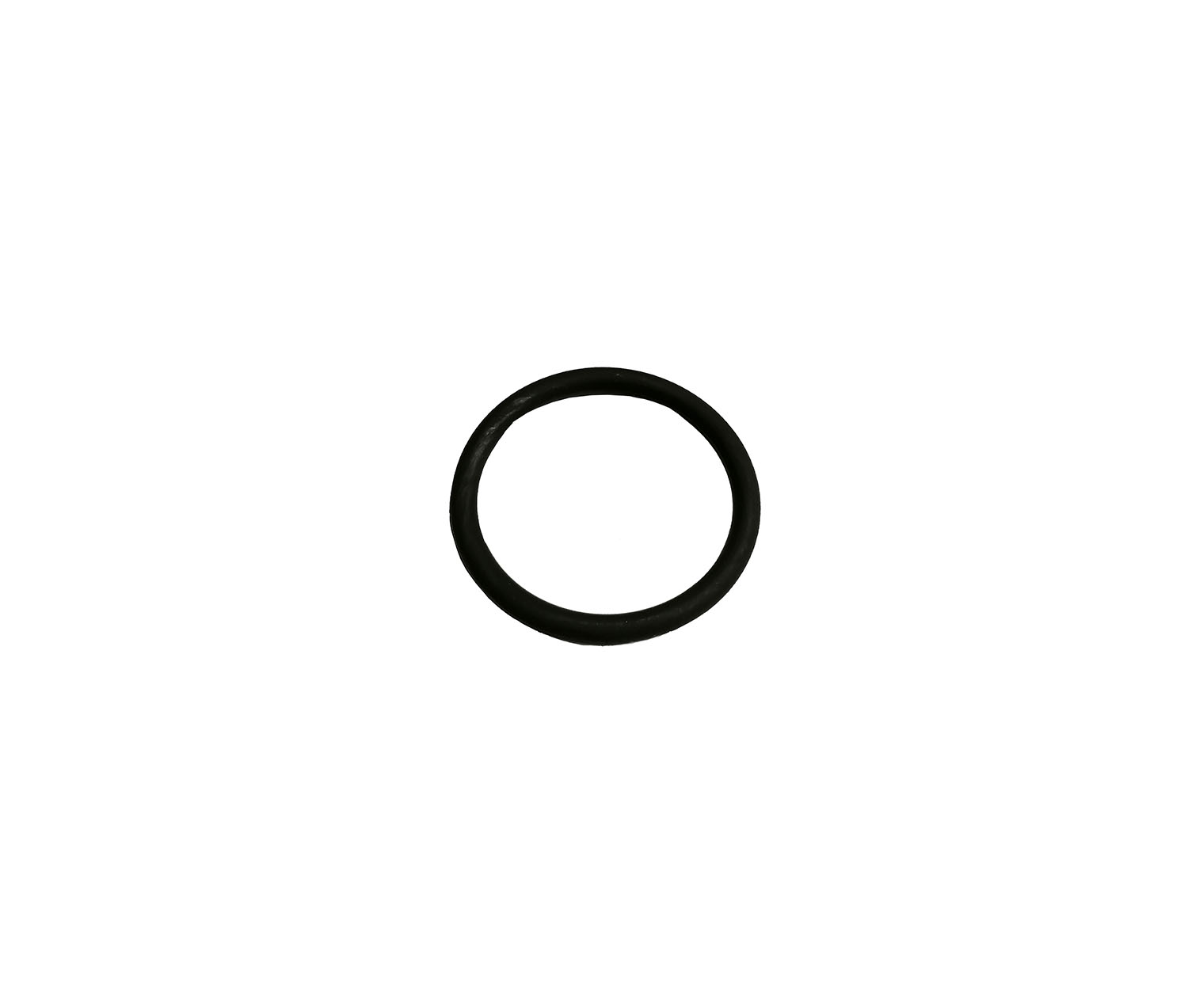

| 2 | 4021230 | O-RING |

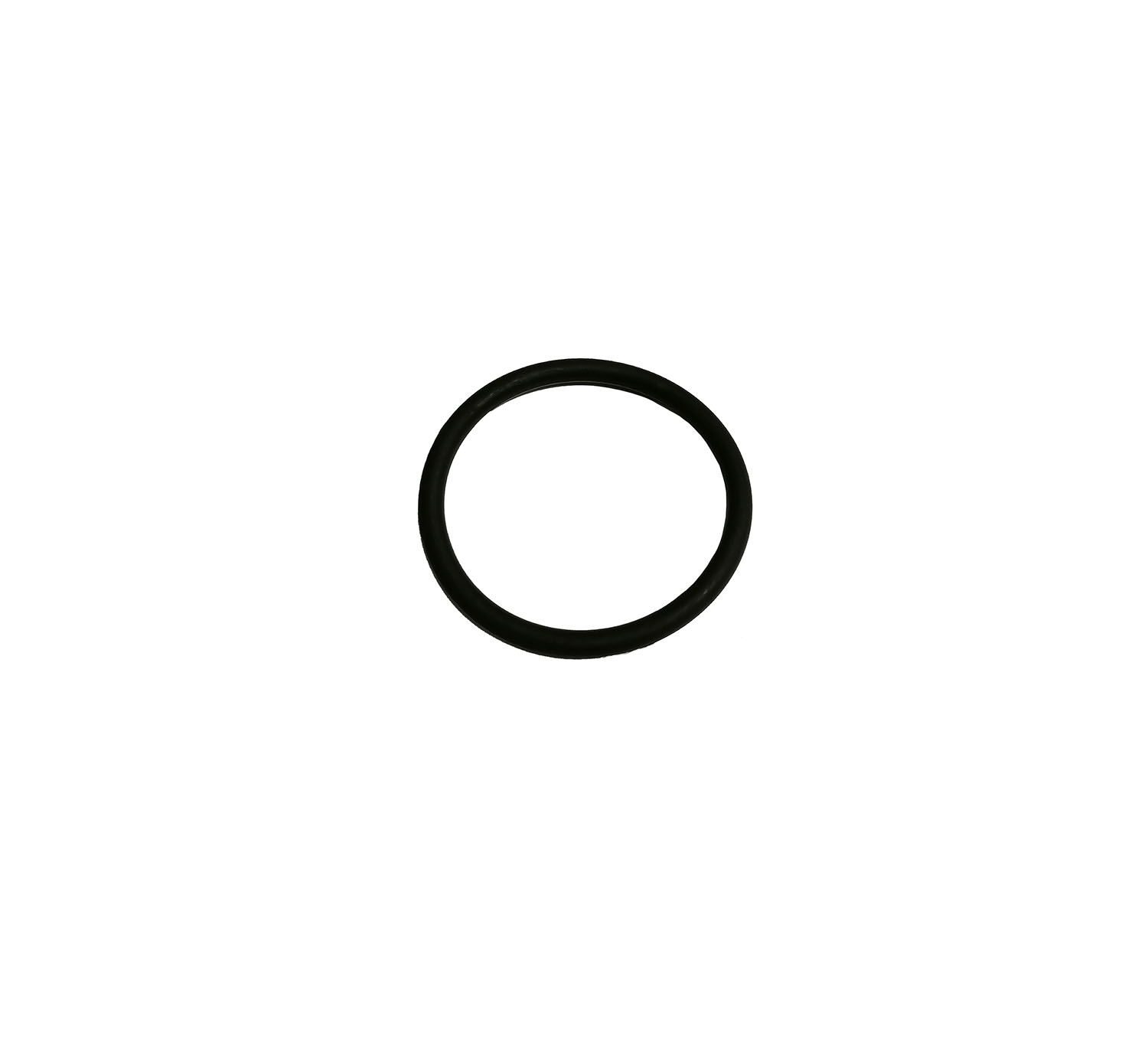

| 4 | 4021340 | O-RING |
